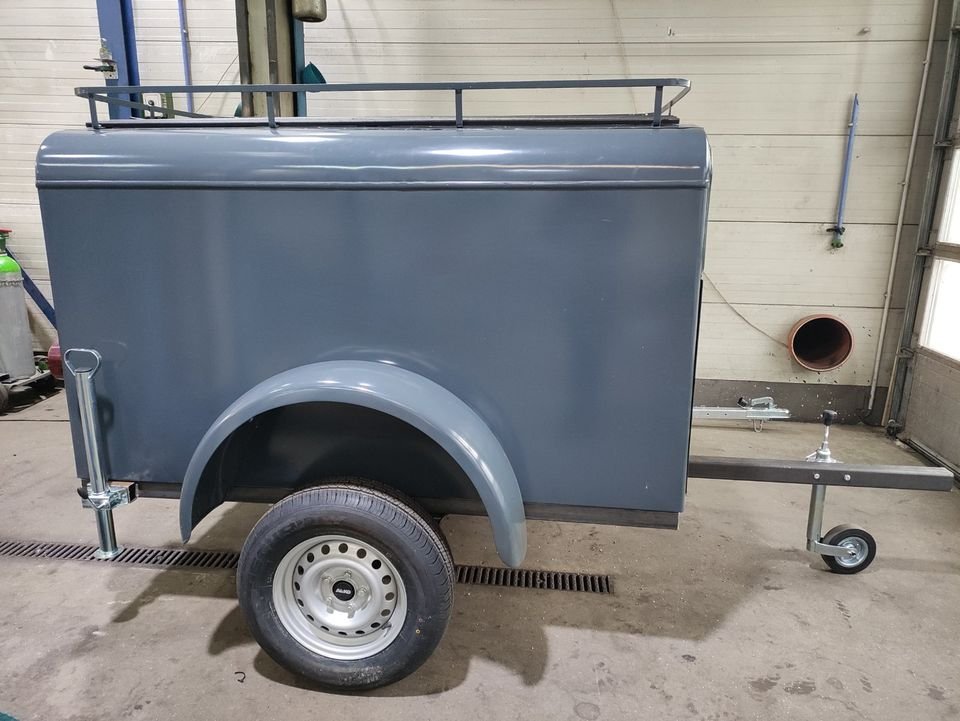

Schenk TSA 10/66
Built: 1986 · Series: Other models
More machines from model year 1986
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schenk TSA 10/66: EU class O4 trailer with a gross weight of 18,360 kg, a length of 10,070 mm and a 7,500 mm wheelbase, built in 1986.
With a gross weight of 18,360 kg, the TSA 10/66 falls into EU trailer class O4, the heavy trailers and semi-trailers above 10 tonnes towed in long-haul and construction traffic behind powerful lorries.
Read on 3 more paragraphs
Built in 1986, the model carries a payload of around 13,320 kg against an unladen weight of 5,040 kg. At 10,070 mm long, 2,500 mm wide and with a 7,500 mm wheelbase, the build is suited to long, bulky loads typical of building-material and machinery haulage rather than high volumes of light goods.
Class O4 trailers generally run on air brakes fed from the towing vehicle's coupling line. Towing requires a category CE licence in most European countries. The long wheelbase against a comparatively narrow width points to a classic flatbed or platform trailer rather than a box body.
Buying a used trailer of this age, check the main chassis members and cross braces for cracks and corrosion, along with the axle suspension and wheel bearings for play. The air brake system, including lines, brake cylinders and coupling heads, should be tested for leaks, and the load bed deserves a look at wear and structural soundness after decades of use. Given the model's age, replacement parts for the axle assembly and brake valves are worth sourcing from a specialist rather than assuming factory support.
Sources: SpecCodex-Register: Kennwerte des Modells Schenk TSA 10/66
Technical data
Dimensions and weights
| Length | 10,070 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 7,500 mmcorrect |
| Unladen weight | 5,040 kgcorrect |
| Gross vehicle weight | 18,360 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Schenk TSA 10/66 weigh?
The unladen weight is 5,040 kg.
What is the gross vehicle weight of the Schenk TSA 10/66?
18,360 kg.
Up to what speed is the Schenk TSA 10/66 approved?
Approved up to 100 km/h.
What are the dimensions of the Schenk TSA 10/66?
10,070 mm × 2,500 mm.
When was the Schenk TSA 10/66 built?
Production years: 1986.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
