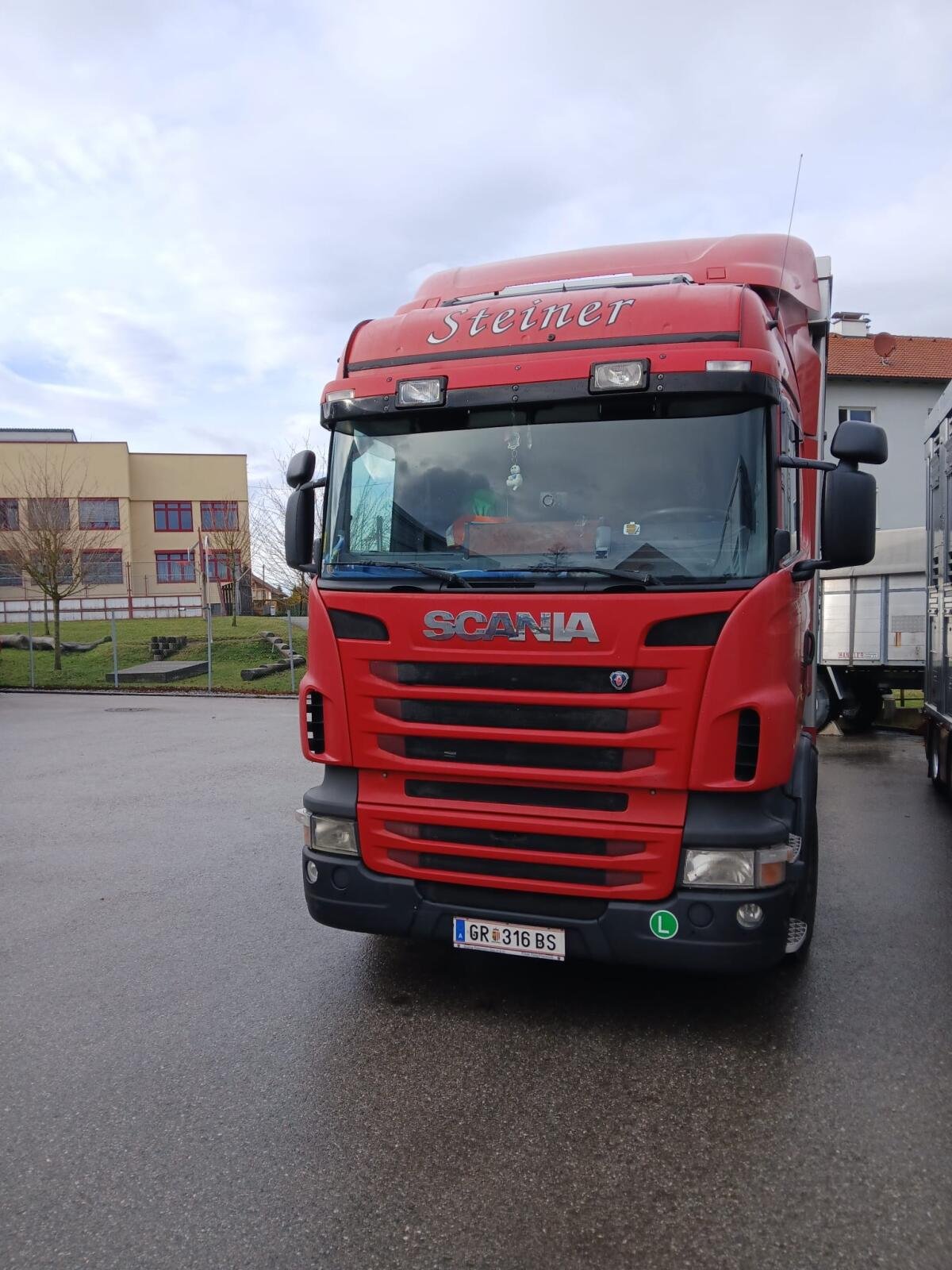

Scania R420 LB6X2MNA
Built: 2005 · Series: R420
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scania R420 – high-output 4-series with R-cab: 12-litre inline-six rated around 309 kW, multi-axle chassis for combination haulage, gross weights up to 47,200 kg
The Scania R420 also comes from the 4-series programme launched in 1995 with the R-cab for long-haul work; the number 420 denotes engine output in horsepower under Scania's convention, rather than the engine family as in the smaller series. The R420 is powered by Scania's twelve-litre inline six, which at this output level produces around 309 kW. The axle formulas in the model names – 6X2, 6X4, 8X4 – indicate three- and four-axle chassis with varying numbers of driven axles, typical of heavy haulage and timber transport in Scandinavia.
Read on 3 more paragraphs
The register lists 9 versions with around 309 kW from six-cylinder engines of 11,700 to 12,742 cc. Kerb weights range from 7,960 to 22,570 kg, gross vehicle weights from 18,600 to 47,200 kg; the latter figure corresponds to multi-axle chassis for trailer or semi-trailer combinations. Lengths run from 6,155 to 11,650 mm, widths from 2,500 to 2,600 mm.
At 309 kW, the R420 was among the more powerful variants of the 4-series and was aimed at heavy long-haul and construction transport, and, in multi-axle form, at Scandinavian combination haulage with trailers exceeding the standard 40-tonne limit. Competitors included the Volvo FH12/FH16 and the heavier versions from MAN and Mercedes-Benz.
On used examples, it is worth checking the frame and trailer coupling for cracks, particularly on multi-axle construction and timber-transport chassis with high drawbar loads. The twelve-litre engine calls for checks of the turbocharger, charge-air cooler and injection system; the brakes should be inspected especially carefully given the high gross weights. Parts are well supported through Scania's service network, and the robust 4-series platform is also routinely serviced by independent workshops.
Sources: SpecCodex register, model data: Scania R420, Scania (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 11,705 cm³correct |
Dimensions and weights
| Length | 11,440 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,460 mmcorrect |
| Unladen weight | 10,220 kgcorrect |
| Gross vehicle weight | 26,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|
Frequently asked questions
How much does the Scania R420 LB6X2MNA weigh?
The unladen weight is 10,220 kg.
What is the gross vehicle weight of the Scania R420 LB6X2MNA?
26,500 kg.
What engine does the Scania R420 LB6X2MNA have?
6 cylinders, 11,705 cm³ displacement.
What are the dimensions of the Scania R420 LB6X2MNA?
11,440 mm × 2,550 mm.
When was the Scania R420 LB6X2MNA built?
Production years: 2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
