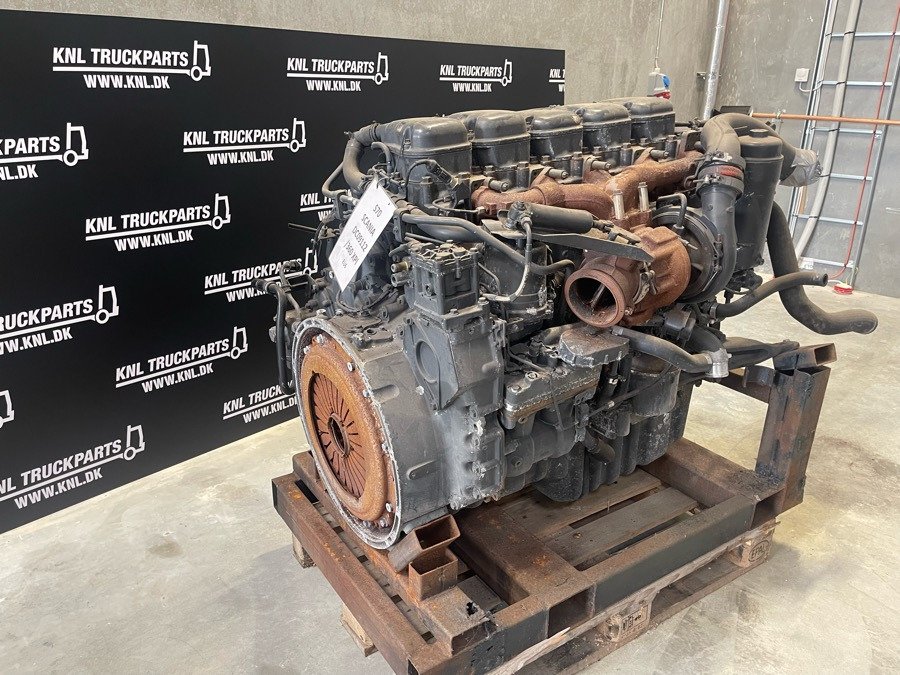

Scania DC09 087A
Built: 2014-2017 · Series: DC09
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Scania DC09 — the Five-Cylinder 9-Litre Industrial Engine
The Scania DC09 is an inline five-cylinder diesel engine displacing roughly 9 litres, part of Scania's industrial and marine engine range. It features a strength-optimised cylinder block with replaceable wet liners, individual cylinder heads with four valves per cylinder, turbocharging, and electronically controlled unit injectors (PDE) managed by Scania's own Engine Management System (EMS).
Read on 3 more paragraphs
Across the factory data sheets published for individual DC09 variants, output spans roughly from around 200 kW up to more than 330 kW, covering everything from compact industrial drives to generating sets rated near 300 kVA. The sources reviewed give no reliable production period or a specific predecessor engine.
Typical applications include stationary and mobile industrial machinery, auxiliary and propulsion duty on work and fishing vessels, and standby or continuous-duty generator sets; variants held in the SpecCodex records include DC09 080A, 083A, 085A, 087A and 092A, each representing a different power and application tuning.
For used units, the maintenance record for oil and filter change intervals is the key thing to check, along with the condition of the centrifugal oil cleaner and oil cooler that Scania fits as standard; no further documented, type-specific weak points are reported in the sources reviewed.
Sources: Kennwerte der Modelle DC09, – Scania DC09 074A Datenblatt (294 kW), – Scania DC09 320A Power-Gen-Datenblatt, – DirectIndustry Produktseite DC09 085A
Technical data
Engine
| Engine code | 2 245 949correct |
|---|---|
| Engine family | EY9XL09.3DAA; GY9XL09.3DAA; FY9XL09.3DAAcorrect |
| Engine families | EY9XL09.3DAA; GY9XL09.3DAA; FY9XL09.3DAAcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 202 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 1,275 N·mcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 5correct |
| Cylinder layout | in linecorrect |
| Bore | 130 mmcorrect |
| Stroke | 140 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Variable Geometry Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 2 245 949correct |
|---|---|
| Built from | 2014correct |
| Built to | 2016correct |
| Model year from | 2014correct |
| Model year to | 2025correct |
Frequently asked questions
How much power does the Scania DC09 087A have?
The Scania DC09 087A delivers 202 kW.
When was the Scania DC09 087A built?
Production years: 2014-2017.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
