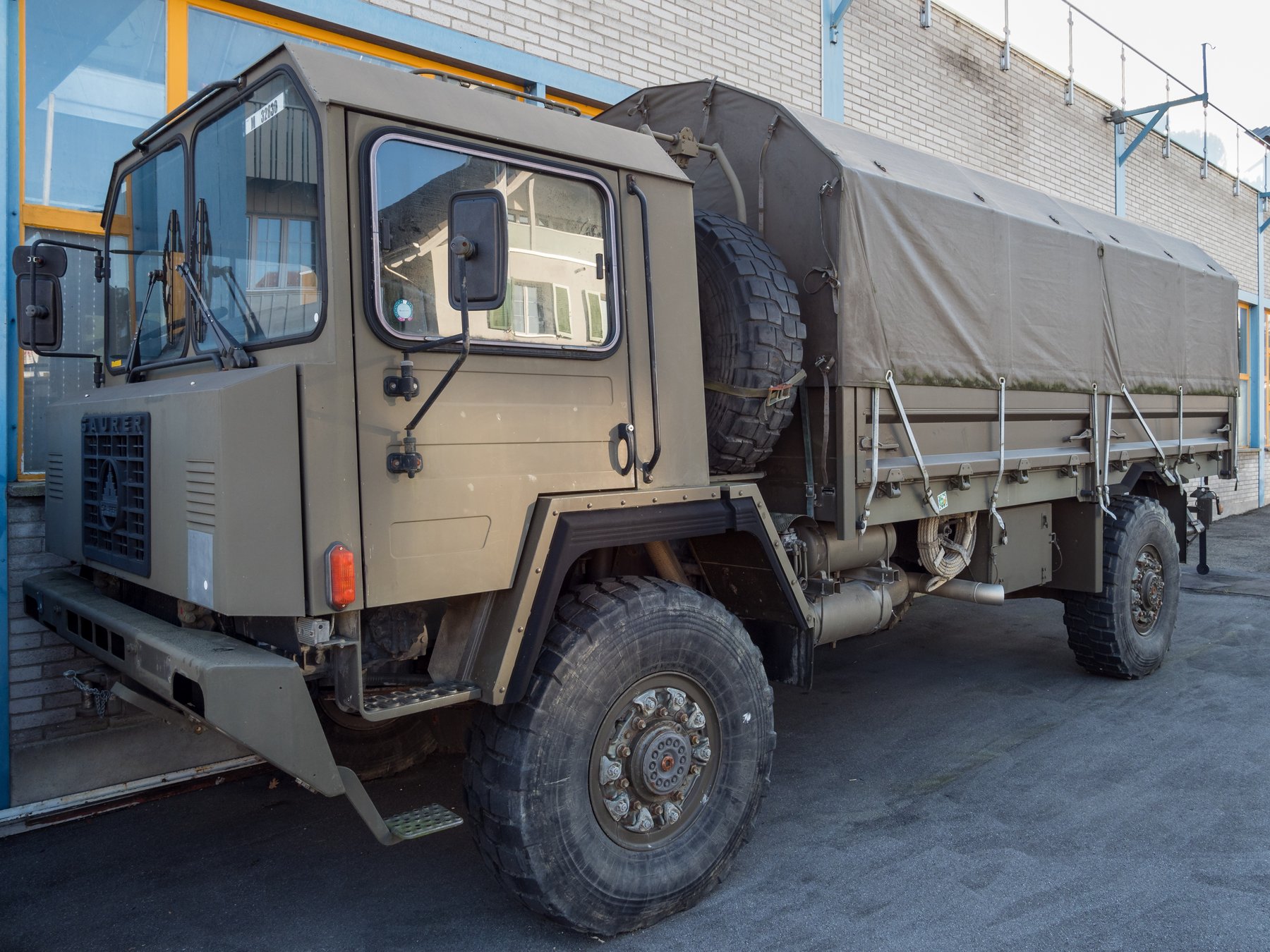

Saurer 6DM
Built: 1984-1984 · Series: Other models
More machines from model year 1984
Saurer – other models: collective page of Swiss trucks and the Berna marque outside the named ranges, four- to six-cylinder diesel engines from 5.3 to 11.9 litres, 6.9 to 18 tonnes gross vehicle weight
Saurer was a Swiss commercial vehicle maker based in Arbon on Lake Constance, building trucks from the second half of the 19th century until the early 1980s, before the commercial vehicle division passed in 1982 into the NAW group founded jointly with Berna and FBW. Berna, a second Swiss maker based in Olten, had been part of the Saurer group since 1929 and continued to build vehicles under its own name; this collective page therefore includes Berna models alongside Saurer types. The model designations on this page range from plain letter-and-digit combinations to tonnage figures such as 5 Ton, and among them also appears the Finnish register class Avolavakuorma-auto (BA) for open flatbed trucks.
Read on 3 more paragraphs
The register lists 20 versions with four- to six-cylinder engines from 5,319 to 11,946 cm³, kerb weights from 3,790 to 12,860 kg, gross vehicle weights from 6,900 to 18,000 kg, lengths from 6,050 to 10,860 mm and widths from 2,200 to 2,500 mm.
Saurer and Berna trucks served the Swiss transport, construction and municipal markets for decades and were also exported to Scandinavia and other European countries, which explains the Finnish registration among the models. As a smaller maker, Saurer competed with groups such as Mercedes-Benz and Volvo, scoring with rugged, easily serviced engineering.
Buying one of these older trucks used, what matters is the condition of the frame and cab, the tightness and compression of the diesel engines, and the state of the brakes and drivetrain; as both marques no longer exist, parts supply is limited and runs mostly through collector and classic-vehicle networks for Swiss commercial vehicles.
Sources: Kennwerte der Modelle Saurer (weitere Modelle), Traficom (Finnland)
Technical data
Engine
| Engine | Saurer, Typ D4 KT- Mcorrect |
|---|---|
| Fuel | 360 liters (with winch only 300 liters)correct |
| Power | 250 hp (184 kW)correct |
| Cylinders | 6correct |
| Displacement | 11,946 cm³correct |
Dimensions and weights
| Length | 7,650 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 4,360 mmcorrect |
| Unladen weight | 9,830 kgcorrect |
| Gross vehicle weight | 12,000 kgcorrect |
Drivetrain and chassis
| Gearbox | FBW PG 10 ZF A 800/3Dcorrect |
|---|---|
| Wheels | 4correct |
Where this model stands
Power-to-weight ratio: 18.7 kW/t (184 kW / 9.8 t)
Stronger than 26% of the trucks over 7.5 t in the register — out of 25,424 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Saurer 6DM have?
The Saurer 6DM delivers 250 hp.
How much does the Saurer 6DM weigh?
The unladen weight is 9,830 kg.
What is the gross vehicle weight of the Saurer 6DM?
12,000 kg.
What engine does the Saurer 6DM have?
6 cylinders, 11,946 cm³ displacement, 360 liters (with winch only 300 liters).
What are the dimensions of the Saurer 6DM?
7,650 mm × 2,500 mm.
When was the Saurer 6DM built?
Production years: 1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
