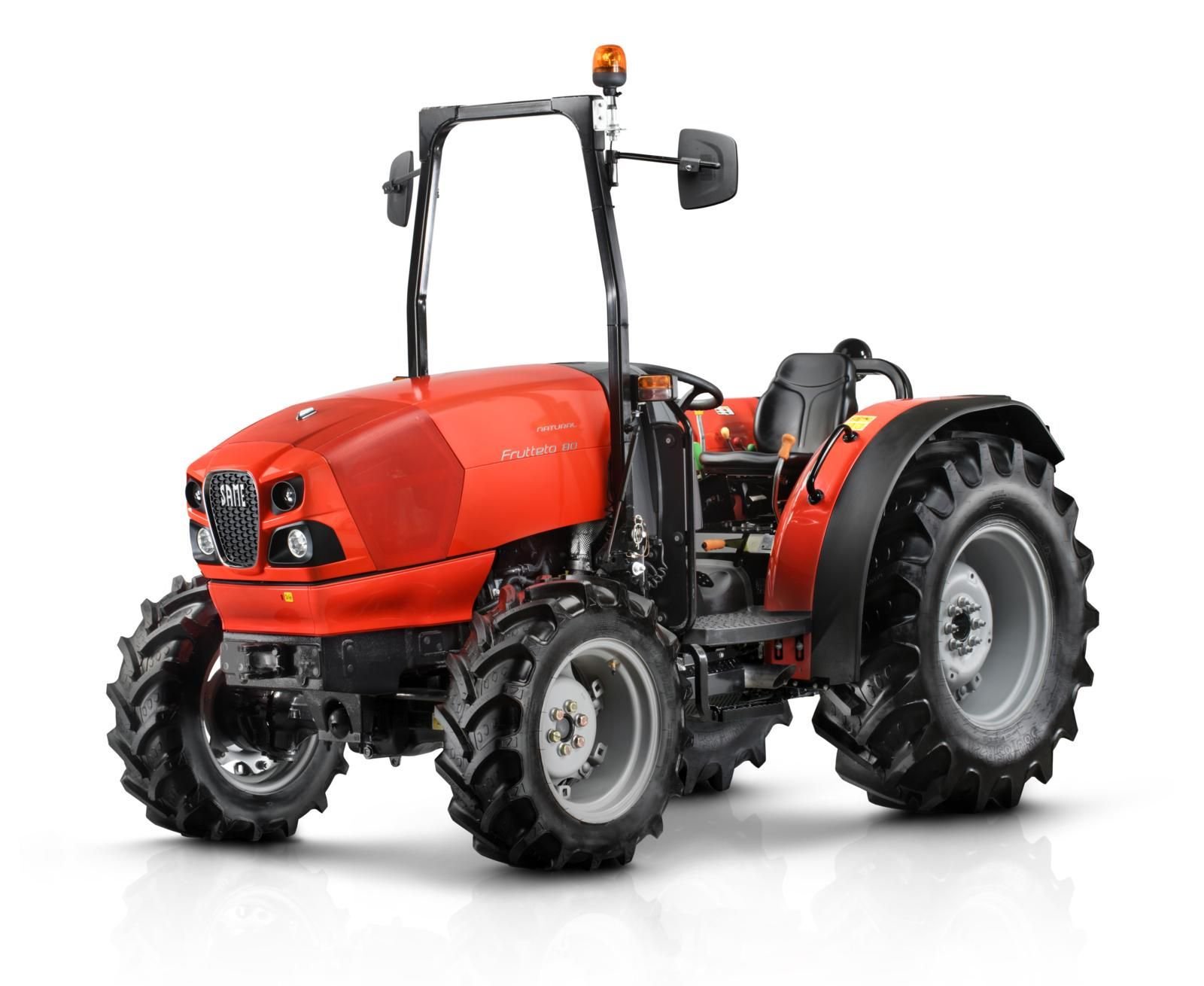

SAME (SLH) FRUTTETO 60 II (DT)

Built: 1992–2005 · Series: FRUTTETO II-Baureihe

More machines from model year 1992

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FRUTTETO II series from SAME (SLH) includes the FRUTTETO 60 II (DT). Production: 1992–2005. The engine delivers 60 hp (44.1 kW), has 3 cylinders, with a displacement of 3,000 cm³. Torque is 187 Nm. Rated speed is 2,350 rpm. The machine is 3,420 mm long, 1,440 mm wide and 2,140 mm high. The unladen weight is 2,050 kg. The wheelbase measures 1,952 mm. Ground clearance is 280 mm. Top speed is 40 km/h. Transmission: 12 V/12 R, 16 V/16 R and 24 V/24 R. The engine is air-cooled. Tyres: front 7.00-12 ASF (DT: 280/70 R 16 AS), rear 360/70 R 24 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 17:1. Maximum torque is reached at 1,557 rpm. Construction: unit construction (no separate frame). The FRUTTETO II-Baureihe series covers 3 models. Rated output within it ranges from 60 to 85 hp; the FRUTTETO 60 II (DT) sits at the bottom of that range with 60 hp. Its immediate neighbours are the FRUTTETO 75 II above it with 75 hp. Unladen weight within it ranges from 2,050 to 2,670 kg; here the FRUTTETO 60 II (DT) sits at the bottom of that range with 2,050 kg. 21 SAME (SLH) models across 7 series are on record.

SAME Frutteto II: collective page of narrow-track orchard and vineyard tractors from the 1990s, from the Frutteto 60 II to the 85 II, three- and four-cylinder diesels, 44 to 63 kW

The Frutteto II range from SAME is a line of narrow-track tractors for orchard and vineyard work, built by SAME in Treviglio, Italy. The name Frutteto (Italian for orchard) points to the low build and narrow track width needed between tight rows of trees; the model numbers 60, 75 and 85 rank the range by power class, and the DT suffix stands for Doppia Trazione, four-wheel drive. The Frutteto II replaced the first Frutteto generation in the 1990s.

Read on 3 more paragraphs

The register lists 3 versions with 44.1 to 62.5 kW from three- and four-cylinder diesel engines of 3,000 to 4,000 cm³, unladen weights of 2,050 to 2,670 kg, lengths of 3,420 to 3,550 mm, widths of 1,440 to 1,460 mm and heights of 2,140 to 2,160 mm; torque ranges from 187 to 317 Nm at a rated speed of 2,350 rpm.

Narrow-track tractors of this kind are indispensable in the tight row spacing of orchards and vineyards, where standard tractors are too wide; SAME competes there with comparable narrow-track models from its sister brands as well as with Deutz-Fahr, Landini and Antonio Carraro.

On these narrow-bodied machines, condition of the mudguards and cab after contact with branches, the four-wheel drive including front axle bearings, hydraulics, and the clutch and brakes all matter when buying used; spare parts run through the SAME-Deutz-Fahr dealer network.

Sources: SpecCodex register, model data: SAME Frutteto II, SAME

Technical data

Engine

Fuel	dieselcorrect
Power	60 hp (44.1 kW)correct
Rated speed	2,350 rpmcorrect
Torque	187 Nmcorrect
Speed at max. torque	1,557 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	17correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,420 mmcorrect
Width	1,440 mmcorrect
Height	2,140 mmcorrect
Wheelbase	1,952 mmcorrect
Ground clearance	280 mmcorrect
Unladen weight	2,050 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12 V/12 R, 16 V/16 R and 24 V/24 Rcorrect
Front tyres	7.00-12 ASF (DT: 280/70 R 16 AS)correct
Rear tyres	360/70 R 24 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 21.5 kW/t (44 kW / 2 t)

Power class: Universal (40–100 hp)

Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME (SLH) FRUTTETO 60 II (DT) have?

The SAME (SLH) FRUTTETO 60 II (DT) delivers 60 hp.

How much does the SAME (SLH) FRUTTETO 60 II (DT) weigh?

The unladen weight is 2,050 kg.

What engine does the SAME (SLH) FRUTTETO 60 II (DT) have?

3 cylinders, 3,000 cm³ displacement, Diesel.

How fast does the SAME (SLH) FRUTTETO 60 II (DT) go?

Top speed is 40 km/h.

What are the dimensions of the SAME (SLH) FRUTTETO 60 II (DT)?

3,420 mm × 1,440 mm × 2,140 mm.

When was the SAME (SLH) FRUTTETO 60 II (DT) built?

Production years: 1992–2005.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
