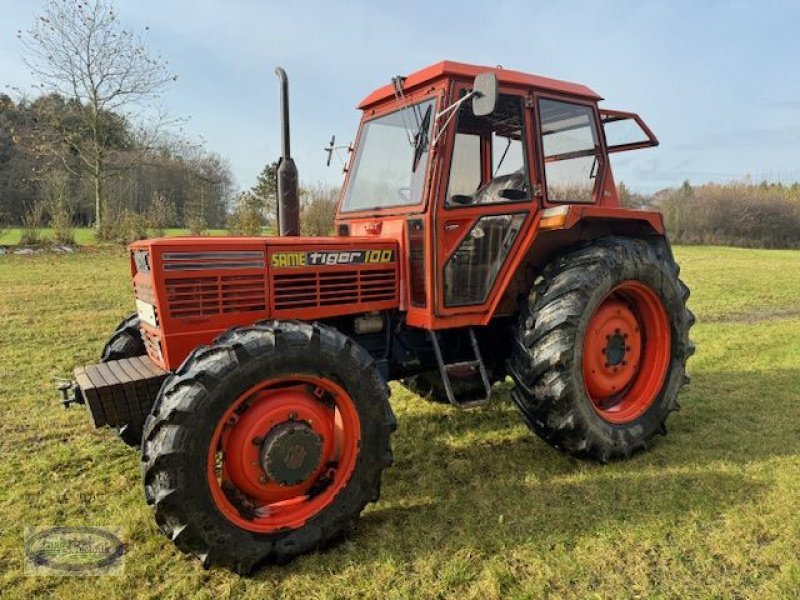

SAME TIGER 100 (DT)
Built: 1977–1980 · Series: Other models
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME – other models: the collective page of Italian tractors outside the named ranges, from Ariete and Delfino to the narrow Frutteto range, DT marking four-wheel drive, 18 to 179 kW
This page gathers the SAME tractors the register could not assign to a named range – from standard tractors with animal names such as Delfino, Falcon, Buffalo and Condor to the narrow Frutteto range for fruit and wine growing. SAME (Società Anonima Motori Endotermici) was founded in 1942 in Treviglio near Bergamo, after Francesco Cassani had already built an early diesel four-wheel-drive tractor there in 1927; Lamborghini Trattori joined the group in 1972, Hürlimann in 1977, and since the 1995 merger with Deutz-Fahr the group has traded as SDF, still headquartered in Treviglio. The DT suffix on Italian tractors traditionally stands for Doppia Trazione, four-wheel drive, and appears on numerous types on this page such as the Buffalo DT and Condor-55 (DT). The engines historically came from the company's own production in Treviglio, and after the Deutz-Fahr merger, per the register, also from Deutz.
Read on 3 more paragraphs
The register lists here 134 versions with 18.4 to 179 kW or 25 to 244 hp from two- to six-cylinders of 1,118 to 7,146 cm³, unladen weights from 1,005 to 7,500 kg and gross weights from 4,100 to 12,000 kg.
SAME is one of the traditional Italian tractor brands and is strongly represented in Italy itself, France and Eastern Europe; the narrow Frutteto range is a benchmark in fruit and wine growing, where it competes with the group siblings Lamborghini and Hürlimann as well as Landini and Fendt for narrow row spacings.
On used tractors, engine condition and rust on sheet metal and cab count, clutch and gearbox, front axle and transfer case on the DT four-wheel-drive types, and on the Frutteto range the condition of cab guards and hydraulics; parts run through the SDF network of SAME Deutz-Fahr.
Sources: SpecCodex register, model data: SAME (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 102 hp (75 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 365 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 5,193 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 196 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,080 mmcorrect |
|---|---|
| Width | 2,120 mmcorrect |
| Height | 2,680 mmcorrect |
| Wheelbase | 2,510 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 3,770 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 R, 24 V/6 R and 20 V/5 Rcorrect |
| Front tyres | 7.50-20 ASF (DT: 13.6-24 AS)correct |
| Rear tyres | 18.4-34 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.9 kW/t (75 kW / 3.8 t)
Power class: Large (100–180 hp)
Stronger than 67% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME TIGER 100 (DT) have?
The SAME TIGER 100 (DT) delivers 102 hp.
How much does the SAME TIGER 100 (DT) weigh?
The unladen weight is 3,770 kg.
What engine does the SAME TIGER 100 (DT) have?
5 cylinders, 5,193 cm³ displacement, Diesel.
How fast does the SAME TIGER 100 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the SAME TIGER 100 (DT)?
4,080 mm × 2,120 mm × 2,680 mm.
When was the SAME TIGER 100 (DT) built?
Production years: 1977–1980.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
