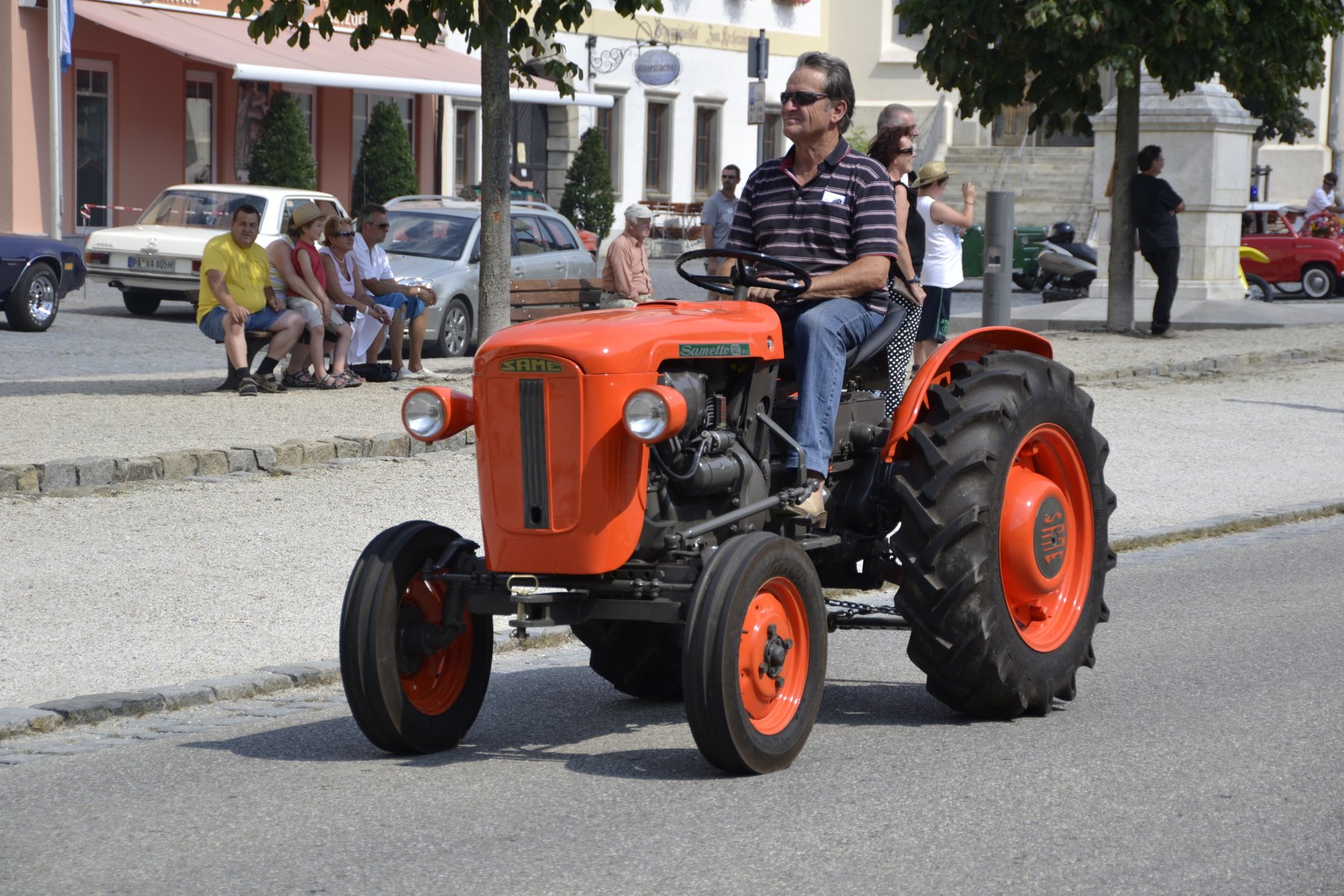

SAME SAMETTO 120 (DT)
Built: 1960–1964 · Series: Sametto
More machines from model year 1960
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
SAME Sametto series: compact small tractors of the 1950s and 1960s from Treviglio, six versions with and without DT four-wheel drive, 13.2 to 19.1 kW (18 to 26 hp) from one- to two-cylinder engines
The Sametto series belongs, at SAME of Treviglio, to the small field tractors of the 1950s and 1960s; the models Sametto 18, Sametto V and Sametto 120 were each also offered in a version with the DT suffix, which in Italian nomenclature stands for Doppia Trazione, meaning four-wheel drive. The series was among the brand's first compact post-war tractors.
Read on 3 more paragraphs
The register lists 6 versions with 13.2 to 19.1 kW, or 18 to 26 hp, from one- to two-cylinder engines of 1,140 to 1,700cc, kerb weights from 1,020 to 1,330 kg, lengths from 2,280 to 2,410 mm, widths from 1,140 to 1,380 mm, heights from 1,200 to 1,340 mm and rated speeds from 2,000 to 2,150 rpm.
As a compact small tractor, the Sametto series was designed for smaller Italian farms as well as orchards and vineyards, where low weight and manoeuvrability mattered more than high engine power; the four-wheel-drive DT versions were additionally suited to hilly terrain. Their compact size also made them handy for towing small trailers and carts around the farmyard.
When buying such older small tractors, check clutch and gearbox condition, one- or two-cylinder engine oil-tightness, the function of the four-wheel drive on DT versions, and corrosion on the chassis and bodywork; spare parts for this early SAME series today are mostly found only through specialist vintage vehicle dealers.
Sources: SpecCodex register, model data: SAME Sametto, SAME (SDF Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 21 hp (15.4 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 1correct |
| Displacement | 1,245 cm³correct |
| Bore | 115 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 15.5correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,320 mmcorrect |
|---|---|
| Width | 1,340 mmcorrect |
| Height | 1,340 mmcorrect |
| Wheelbase | 1,460 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 1,020 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 5.00-15 ASF (DT: 6.00-16 AS)correct |
| Rear tyres | 9-24 AScorrect |
| Top speed | 16 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (15 kW / 1 t)
Power class: Compact (< 40 hp)
Stronger than 8% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME SAMETTO 120 (DT) have?
The SAME SAMETTO 120 (DT) delivers 21 hp.
How much does the SAME SAMETTO 120 (DT) weigh?
The unladen weight is 1,020 kg.
What engine does the SAME SAMETTO 120 (DT) have?
1 cylinders, 1,245 cm³ displacement, Diesel.
How fast does the SAME SAMETTO 120 (DT) go?
Top speed is 16 km/h.
What are the dimensions of the SAME SAMETTO 120 (DT)?
2,320 mm × 1,340 mm × 1,340 mm.
When was the SAME SAMETTO 120 (DT) built?
Production years: 1960–1964.
