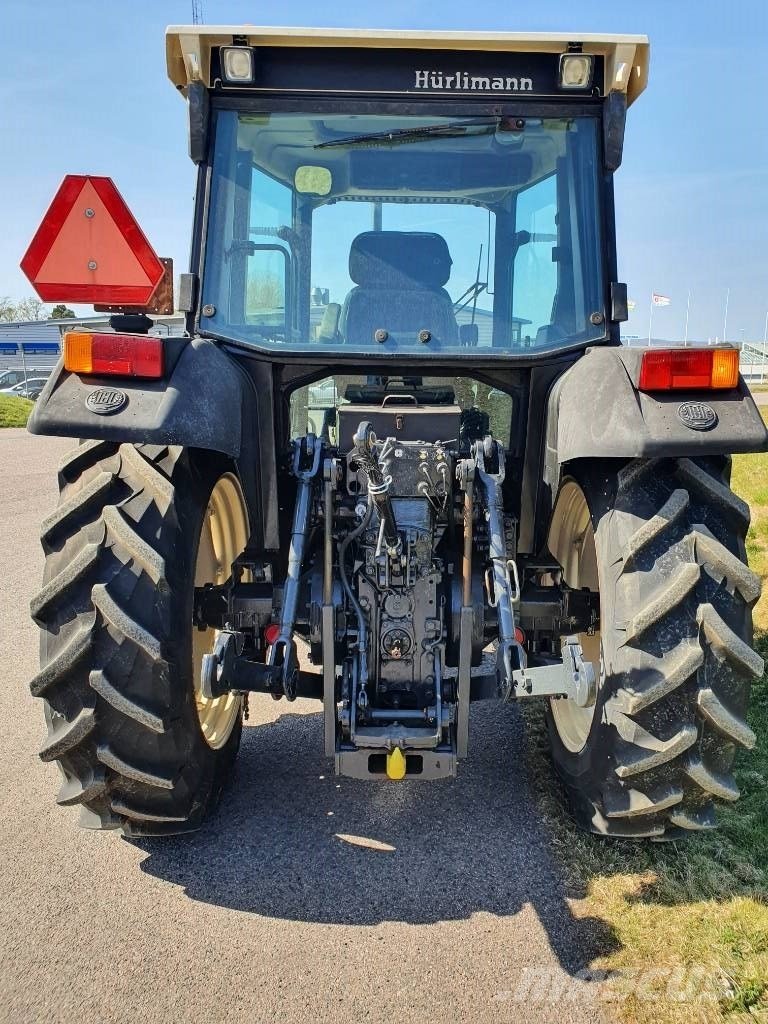

SAME Lamborghini Hürlimann 910.6 XT
Built: 1995–2004 · Series: XT-Baureihe
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
XT series: the SLH group's upper mid-range, from the 95 XT to the XT 910.6 Turbo, 62.5 to 84.5 kW, four- and six-cylinder engines with water cooling
The XT series belonged to the upper mid-range of the SAME-Lamborghini-Hürlimann (SLH) group during the 1990s and early 2000s, a group formed in 1979 from the merger of SAME with Lamborghini Trattori and Hürlimann Traktoren.
Read on 4 more paragraphs
The register lists 7 live models, from the 95 XT to the XT 910.6 Turbo, built between 1995 and around 2005. Output ranges from 62.5 to 84.5 kW, weight from 4,120 to 4,680 kg, displacement from 4,000 to 6,001 cm3, across four- and six-cylinder engines.
The parallel four- and six-cylinder variants at similar rated output illustrate the platform strategy typical of the SLH group: the same body and cab, different engines depending on brand and target market.
Since the 1995 acquisition of Deutz-Fahr, the group has traded as SAME Deutz-Fahr (SDF), the parent under which this series' tractors were built.
With operating weights of roughly 4.1 to 4.7 tonnes, the XT series sits in the weight class for which a three-point linkage to ISO 730 Category II and a PTO with 540 and 1,000 rpm speeds are standard – two PTO speeds that, depending on the implement attached, allow different power transfer at lower or higher revolutions. Buyers should check that both PTO speeds still work correctly on a given example, since a fault in the PTO shift usually requires partially stripping the gearbox to fix.
Sources: SpecCodex register, model data: SAME-Lamborghini-Hürlimann XT-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 105 hp (77.2 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 343 Nmcorrect |
| Speed at max. torque | 1,409 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,001 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,450 mmcorrect |
|---|---|
| Width | 2,080 mmcorrect |
| Height | 2,715 mmcorrect |
| Wheelbase | 2,635 mmcorrect |
| Ground clearance | 455 mmcorrect |
| Unladen weight | 4,550 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/20R or 45V/45Rcorrect |
| Front tyres | 16.9 R 24 AScorrect |
| Rear tyres | 18.4 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17 kW/t (77 kW / 4.5 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Lamborghini Hürlimann 910.6 XT have?
The SAME Lamborghini Hürlimann 910.6 XT delivers 105 hp.
How much does the SAME Lamborghini Hürlimann 910.6 XT weigh?
The unladen weight is 4,550 kg.
What engine does the SAME Lamborghini Hürlimann 910.6 XT have?
6 cylinders, 6,001 cm³ displacement, Diesel.
How fast does the SAME Lamborghini Hürlimann 910.6 XT go?
Top speed is 30 km/h.
What are the dimensions of the SAME Lamborghini Hürlimann 910.6 XT?
4,450 mm × 2,080 mm × 2,715 mm.
When was the SAME Lamborghini Hürlimann 910.6 XT built?
Production years: 1995–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
