Start › Tractors › SAME Deutz Fahr › Agrotron - Serie 7 › Agrotron 7230 TTV

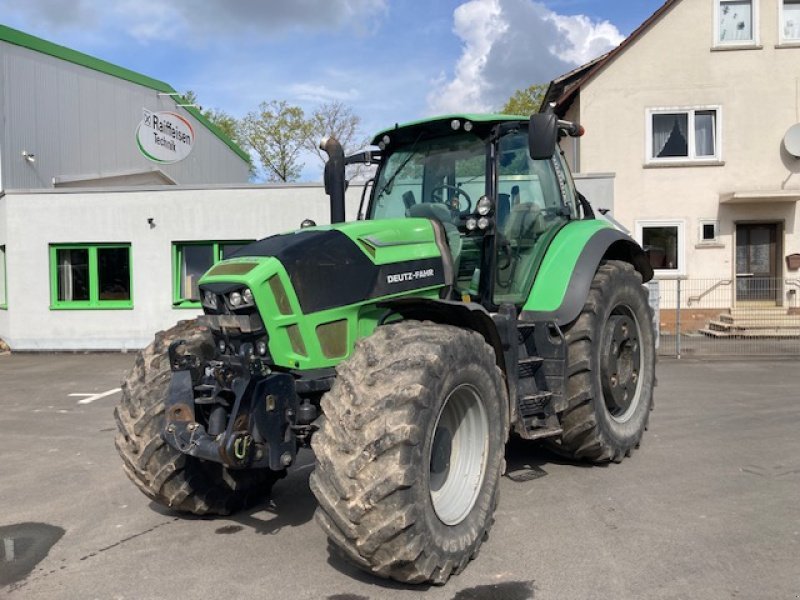

SAME Deutz Fahr Agrotron 7230 TTV

Built: 2013 · Series: Agrotron - Serie 7

More machines from model year 2013

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Agrotron - Serie 7 series from SAME Deutz Fahr includes the Agrotron 7230 TTV. Production: 2013. The engine delivers 204 hp (150 kW), has 6 cylinders, with a displacement of 6,057 cm³. Torque is 870 Nm. Rated speed is 2,100 rpm. The machine is 4,933 mm long and 2,550 mm wide. The unladen weight is 8,200 kg. The wheelbase measures 2,837 mm. Top speed is 40 km/h. Transmission: continuously variable. The engine is water-cooled. Tyres: front 600/70 R 30, rear 650/65 R 42. The fuel is Diesel / Biodiesel B100. The bore measures 101 mm. The stroke is 126 mm. The compression ratio is 18:1. Rated output across the SAME Deutz Fahr range ranges from 25 to 268 hp; the Agrotron 7230 TTV sits in the upper part of that range with 204 hp. Its immediate neighbours are the Agrotron 200 below it with 200 hp and the Agrotron 200 above it with 205 hp. Rated output across the SAME Deutz Fahr range ranges from 18.4 to 197 kW; here the Agrotron 7230 TTV sits in the upper part of that range with 150 kW. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Agrotron 7230 TTV: six-cylinder tractor with stepless transmission, 150 kW and 8,200 kg weight from Series 7

SAME Deutz-Fahr is a brand of the Italian SDF group, headquartered in Treviglio, which brought together the tractor brands SAME, Deutz-Fahr, Lamborghini and Hürlimann. The Agrotron Series 7 range formed the upper power segment with a stepless TTV transmission, aimed at professional arable farms.

Read on 3 more paragraphs

The Agrotron 7230 TTV is powered by a water-cooled six-cylinder engine of 6,057 cc, producing 150 kW (204 hp) at 2,100 rpm with 870 Nm of torque. At a weight of 8,200 kg, a wheelbase of 2,837 mm and a width of 2,550 mm, the tractor reaches a design top speed of 40 km/h. The engine runs on diesel or B100 biodiesel.

The TTV designation stands for a stepless transmission that regulates engine speed independently of travel speed, an advantage with the varying pulling loads of tillage work. The 40 km/h top speed requires the German T driving licence category, the power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730, typically fitted with category 2 implements at this weight.

Buying a used TTV model, the stepless transmission deserves particular attention: a test drive under load, oil change intervals and the transmission electronics' fault memory belong in the check. Added to that are the usual points for a heavy six-cylinder: the cooling system, hydraulic tightness, PTO bearings and tyre condition given the tractor's weight.

Sources: SpecCodex-Register: Kennwerte des Modells Agrotron 7230 TTV

Technical data

Engine

Fuel	Diesel / Biodiesel B100correct
Power	204 hp (150 kW)correct
Rated speed	2,100 rpmcorrect
Torque	870 Nmcorrect
Cylinders	6correct
Displacement	6,057 cm³correct
Bore	101 mmcorrect
Stroke	126 mmcorrect
Compression ratio	18correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,933 mmcorrect
Width	2,550 mmcorrect
Wheelbase	2,837 mmcorrect
Unladen weight	8,200 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	600/70 R 30correct
Rear tyres	650/65 R 42correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 18.3 kW/t (150 kW / 8.2 t)

Power class: Heavy (> 180 hp)

Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr Agrotron 7230 TTV have?

The SAME Deutz Fahr Agrotron 7230 TTV delivers 204 hp.

How much does the SAME Deutz Fahr Agrotron 7230 TTV weigh?

The unladen weight is 8,200 kg.

What engine does the SAME Deutz Fahr Agrotron 7230 TTV have?

6 cylinders, 6,057 cm³ displacement, Diesel / Biodiesel B100.

How fast does the SAME Deutz Fahr Agrotron 7230 TTV go?

Top speed is 40 km/h.

What are the dimensions of the SAME Deutz Fahr Agrotron 7230 TTV?

4,933 mm × 2,550 mm.

When was the SAME Deutz Fahr Agrotron 7230 TTV built?

Production years: 2013.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
