SAME Deutz Fahr Agrotron 165 (120 kW)
Built: 2003–2004 · Series: Agrotron - New (IV)
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

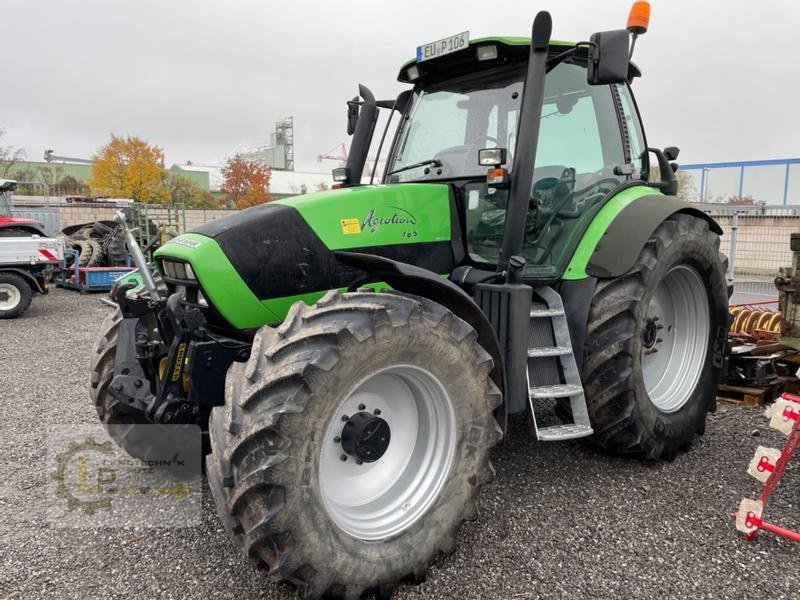

SAME Deutz-Fahr Agrotron 165: six-cylinder tractor rated at 120 kW with 7.1-litre displacement from the Agrotron - New (IV) range
SAME Deutz-Fahr is a brand of the Italian SDF group, headquartered in Treviglio, which brought together the tractor brands SAME, Deutz-Fahr, Lamborghini and Hürlimann. The generation labelled New (IV) refreshed the upper power segment of the Agrotron programme for professional arable farms.
Read on 3 more paragraphs
The Agrotron 165 is powered by a water-cooled six-cylinder engine of 7,146 cc, producing 120 kW (163 hp) at 2,350 rpm. At a weight of 5,970 kg, a wheelbase of 2,767 mm and a width of 2,500 mm, the tractor reaches a design top speed of 40 km/h. The engine runs on diesel or biodiesel.
Six cylinders and more than seven litres of displacement mark a heavy field tractor for tillage, three-point implements to ISO 730 and drawbar work that needs high pulling force. The 40 km/h top speed requires the German T driving licence category, and the power take-off runs at the standard 540 or 1,000 rpm. Implements in this weight class typically mount on category 2 of the ISO three-point standard, larger ones on category 3.
Buying a used six-cylinder of this generation is worth a close check of the cooling system and the injection system, since both count among the costly wear parts at high hours. Also worth checking at inspection are the hydraulic hoses, the PTO bearings, the condition of the gearbox linkage and tyre condition given the tractor's considerable weight.
Sources: SpecCodex-Register: Kennwerte des Modells Agrotron 165
Technical data
Engine
| Fuel | Diesel/Biodieselcorrect |
|---|---|
| Power | 163 hp (120 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,146 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,757 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 2,997 mmcorrect |
| Wheelbase | 2,767 mmcorrect |
| Ground clearance | 570 mmcorrect |
| Unladen weight | 5,970 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/24Rcorrect |
| Front tyres | 16.9 R 28 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.1 kW/t (120 kW / 6 t)
Power class: Large (100–180 hp)
Stronger than 86% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrotron 165 have?
The SAME Deutz Fahr Agrotron 165 delivers 163 hp.
How much does the SAME Deutz Fahr Agrotron 165 weigh?
The unladen weight is 5,970 kg.
What engine does the SAME Deutz Fahr Agrotron 165 have?
6 cylinders, 7,146 cm³ displacement, Diesel/Biodiesel.
How fast does the SAME Deutz Fahr Agrotron 165 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agrotron 165?
4,757 mm × 2,500 mm × 2,997 mm.
When was the SAME Deutz Fahr Agrotron 165 built?
Production years: 2003–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
