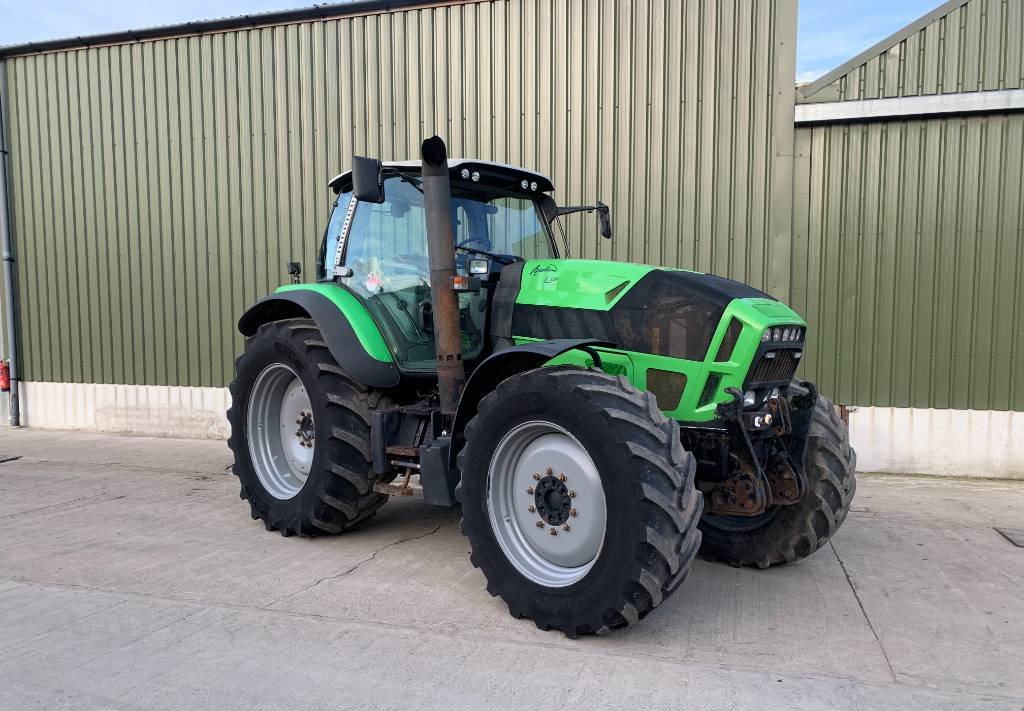

SAME Deutz Fahr Agrotron L 730

Built: from 2012 · Series: Agrotron L

More machines from model year 2012

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Agrotron L series from SAME Deutz Fahr includes the Agrotron L 730. The engine delivers 213 hp (157 kW), has 6 cylinders, with a displacement of 7,146 cm³. Torque is 836 Nm. Rated speed is 2,350 rpm. The machine is 5,010 mm long, 2,740 mm wide and 3,030 mm high. The unladen weight is 7,236 kg. The wheelbase measures 2,985 mm. Ground clearance is 590 mm. Top speed is 40 km/h. Transmission: 33V / 33R. The engine is water-cooled. Tyres: front 540/65 R 34, rear 650/65 R 42. The fuel is Diesel / Biodiesel. The bore measures 108 mm. The stroke is 130 mm. The compression ratio is 18.1:1. Maximum torque is reached at 1,500 rpm. Rated output across the SAME Deutz Fahr range ranges from 25 to 268 hp; the Agrotron L 730 sits in the upper part of that range with 213 hp. Its immediate neighbours are the Agrotron 200 below it with 205 hp and the Agrotron 230 above it with 230 hp. Rated output across the SAME Deutz Fahr range ranges from 18.4 to 197 kW; here the Agrotron L 730 sits in the upper part of that range with 157 kW. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Agrotron L 730: six-cylinder field tractor rated at 157 kW, 7.1-litre displacement and 7,236 kg weight from the Agrotron L range

SAME Deutz-Fahr is a brand of the Italian SDF group, headquartered in Treviglio in Lombardy, which brought together the tractor brands SAME, Deutz-Fahr, Lamborghini and Hürlimann. The Agrotron ranges form the upper power segment of the group's agricultural programme, aimed at professionally run arable farms.

Read on 3 more paragraphs

The Agrotron L 730 is powered by a water-cooled six-cylinder engine of 7,146 cc, producing 157 kW (213 hp) at 2,350 rpm with 836 Nm of torque. At a weight of 7,236 kg, a wheelbase of 2,985 mm and a width of 2,740 mm, the tractor reaches a design top speed of 40 km/h. The engine runs on diesel or biodiesel.

Six cylinders and more than seven litres of displacement mark a heavy field tractor, the kind used for tillage, seeding and transport work that calls for high pulling force. The 40 km/h top speed requires the German T driving licence category. The power take-off runs at the standard 540 or 1,000 rpm, and the three-point hitch follows ISO 730.

Buying a used six-cylinder this heavy and powerful is worth a close look at the cooling system and the condition of the front hydraulics, and the recorded hours should be weighed against how the tractor was actually used. PTO bearings, hydraulic lines checked for leaks, and tyre condition given the high kerb weight all deserve attention at inspection.

Sources: SpecCodex-Register: Kennwerte des Modells Agrotron L 730

Technical data

Engine

Fuel	Diesel / Biodieselcorrect
Power	213 hp (157 kW)correct
Rated speed	2,350 rpmcorrect
Torque	836 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	7,146 cm³correct
Bore	108 mmcorrect
Stroke	130 mmcorrect
Compression ratio	18.1correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	5,010 mmcorrect
Width	2,740 mmcorrect
Height	3,030 mmcorrect
Wheelbase	2,985 mmcorrect
Ground clearance	590 mmcorrect
Unladen weight	7,236 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	33V / 33Rcorrect
Front tyres	540/65 R 34correct
Rear tyres	650/65 R 42correct
Top speed	40 km/hcorrect

Where this model stands

Power-to-weight ratio: 21.7 kW/t (157 kW / 7.2 t)

Power class: Heavy (> 180 hp)

Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr Agrotron L 730 have?

The SAME Deutz Fahr Agrotron L 730 delivers 213 hp.

How much does the SAME Deutz Fahr Agrotron L 730 weigh?

The unladen weight is 7,236 kg.

What engine does the SAME Deutz Fahr Agrotron L 730 have?

6 cylinders, 7,146 cm³ displacement, Diesel / Biodiesel.

How fast does the SAME Deutz Fahr Agrotron L 730 go?

Top speed is 40 km/h.

What are the dimensions of the SAME Deutz Fahr Agrotron L 730?

5,010 mm × 2,740 mm × 3,030 mm.

When was the SAME Deutz Fahr Agrotron L 730 built?

Production years: 2012–?.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
