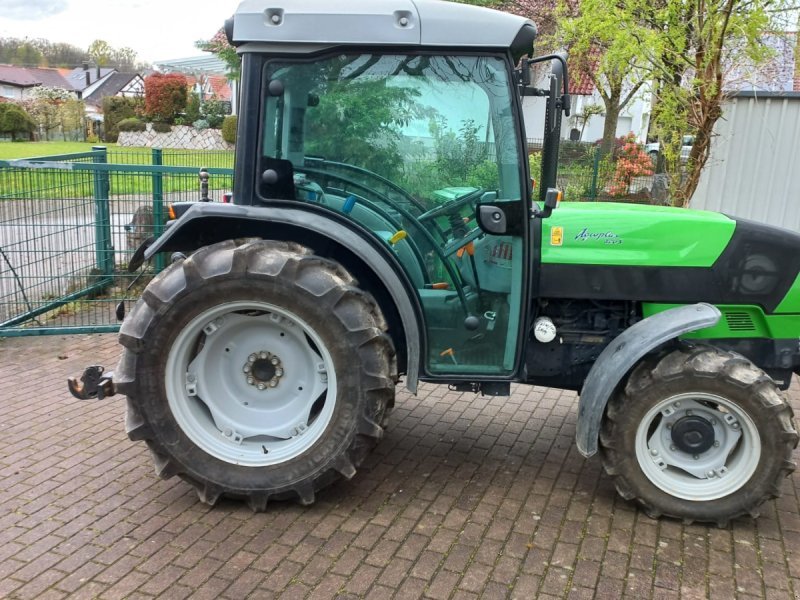

SAME Deutz Fahr Agroplus S 320
Built: 2009 · Series: Agroplus - Schmalspur - Reihe
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agroplus narrow-track: for orchards and vineyards, 67 to 96 hp, three- and four-cylinder diesels, F (Frutteto), V (Vigneto) and S (Standard narrow) variants
Alongside the standard version, Deutz-Fahr offered the Agroplus as a narrow-track variant for orchard, vineyard and specialty-crop farms, identifiable by the suffixes F (Frutteto/orchard), V (Vigneto/vineyard) and S (Standard narrow).
Read on 4 more paragraphs
The register lists 13 live models, from the Agroplus S 70 to the Agroplus V 420, built between 2005 and 2009. Output ranges from 49.5 to 70.6 kW, weight from 2,475 to 2,740 kg, displacement from 3,000 to 4,000 cm3, across three- and four-cylinder engines.
The Italian suffixes F and V reflect the Deutz-Fahr brand's roots at the Italian Lauingen-adjacent operations and SAME's tradition in specialty-crop tractors, which SDF carried on after acquiring Deutz-Fahr in 1995.
With reduced width and build height, these models allowed work in tight tree rows without giving up the engine base of the standard Agroplus.
When buying used narrow-track models, the availability of matching narrow tyres, the condition of the reduced mudguards after work between tree rows, and clutch, gearbox and hydraulic tightness as on any older Agroplus all matter. Parts for the engine base shared with the standard Agroplus are available through the SAME Deutz-Fahr group, though narrow-track-specific fittings are scarcer. PTO and three-point hitch correspond in this power class to ISO 730 Category II, at 540 rpm.
Sources: SpecCodex register, model data: Deutz-Fahr Agroplus Schmalspur
Technical data
Engine
| Fuel | Diesel / B 100correct |
|---|---|
| Power | 82 hp (60 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 260 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 1,200 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,576 mmcorrect |
|---|---|
| Height | 2,240 mmcorrect |
| Wheelbase | 1,926 mmcorrect |
| Ground clearance | 260 mmcorrect |
| Unladen weight | 2,490 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 30V / 15Rcorrect |
| Front tyres | 240/70 R 16correct |
| Rear tyres | 380/70 R 20correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 24.1 kW/t (60 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 56% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agroplus S 320 have?
The SAME Deutz Fahr Agroplus S 320 delivers 82 hp.
How much does the SAME Deutz Fahr Agroplus S 320 weigh?
The unladen weight is 2,490 kg.
What engine does the SAME Deutz Fahr Agroplus S 320 have?
3 cylinders, 3,000 cm³ displacement, Diesel / B 100.
How fast does the SAME Deutz Fahr Agroplus S 320 go?
Top speed is 40 km/h.
What are the dimensions of the SAME Deutz Fahr Agroplus S 320?
3,576 mm × 2,240 mm.
When was the SAME Deutz Fahr Agroplus S 320 built?
Production years: 2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
