Start › Tractors › SAME Deutz Fahr › Agroplus - Reihe (dritte Generation) › Agroplus 320

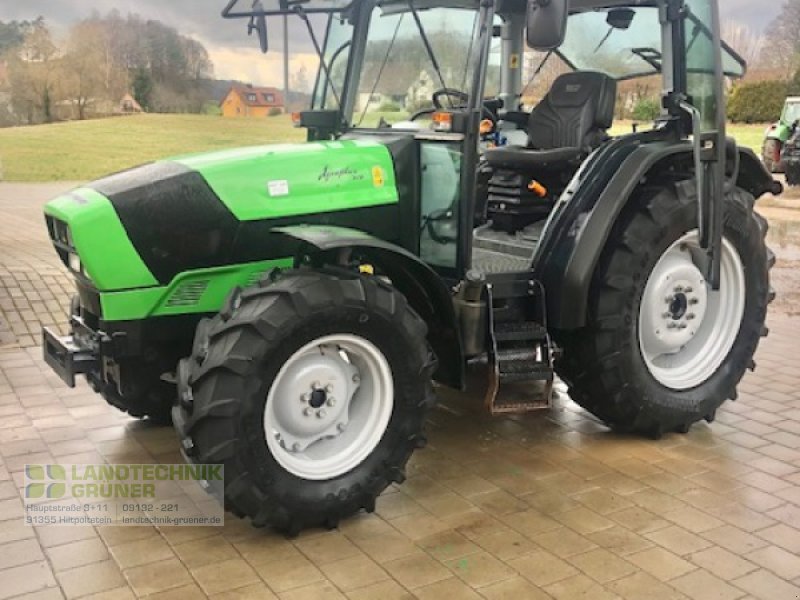

SAME Deutz Fahr Agroplus 320

Built: 2009 · Series: Agroplus - Reihe (dritte Generation)

More machines from model year 2009

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SAME Deutz Fahr Agroplus 320 is a model in the Agroplus - Reihe (dritte Generation) series. Production: 2009. The engine delivers 82 hp (60 kW), has 3 cylinders, with a displacement of 3,000 cm³. Torque is 310 Nm. Rated speed is 2,200 rpm. The machine is 3,560 mm long, 2,070 mm wide and 2,455 mm high. The unladen weight is 3,410 kg. The wheelbase measures 2,100 mm. Ground clearance is 390 mm. Top speed is 40 km/h. Transmission: 30V / 15R. The engine is water-cooled. Tyres: front 320/70 R 24, rear 480/70 R 30. The fuel is Diesel / B 100. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). Injection pressure is 1200 bar. The Agroplus - Reihe (dritte Generation) series covers 3 models. Rated output within it ranges from 62 to 85 hp; the Agroplus 320 sits at the top of that range with 82 hp. Its immediate neighbours are the Agroplus 310 below it with 62 hp and the Agroplus 410 above it with 85 hp. Unladen weight within it ranges from 3,230 to 3,410 kg; here the Agroplus 320 sits at the top of that range with 3,410 kg. 200 SAME Deutz Fahr models across 35 series are on record.

SAME Deutz-Fahr Agroplus (third generation) – Agroplus 310, 320 and 410 from Lauingen: diesel from 46.5 to 62.5 kW, 3,000 to 4,000 cm³ displacement, B100-capable

The SAME-Deutz-Fahr group builds the Agroplus range at its home plant in Lauingen on the Danube as a compact all-round tractor. The third generation includes in the register the models Agroplus 310, 320 and 410, whose type number rises with engine output within the range. The SAME-Deutz-Fahr group brings together several brands with separate histories that have shared common technical platforms for many tractors since the 1990s.

Read on 3 more paragraphs

The register lists 3 versions with 46.5 to 62.5 kW rated output at a constant 2,200 rpm. The engines produce between 3,000 and 4,000 cm³ displacement with three or four cylinders, torque ranges from 244 to 345 Nm. Operating weights lie between 3,230 and 3,410 kg, lengths between 3,560 and 3,570 mm. All three models are designed to run on diesel or B100 biodiesel.

As compact utility tractors, the Agroplus range targets smaller and medium-sized holdings as well as municipal and grassland work, where manoeuvrability and moderate dimensions matter. Within the SAME-Deutz-Fahr group, the Agroplus range complements the larger Deutz-Fahr and SAME ranges from below, offering closely related technology under different model names.

When buying used, the condition of clutch and gearbox, the tightness of the hydraulic system, and corrosion on wings and cab floor rank among the key checks. For B100 biodiesel operation, it is also worth checking the fuel filter and injection system, as well as the condition of the fuel lines; spare parts are carried by the SAME-Deutz-Fahr dealer network.

Sources: SpecCodex register, model data: SAME Deutz Fahr Agroplus-Reihe (dritte Generation), Deutz-Fahr (manufacturer)

Technical data

Engine

Fuel	Diesel / B 100correct
Power	82 hp (60 kW)correct
Rated speed	2,200 rpmcorrect
Torque	310 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Displacement	3,000 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Injection pressure	1,200 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,560 mmcorrect
Width	2,070 mmcorrect
Height	2,455 mmcorrect
Wheelbase	2,100 mmcorrect
Ground clearance	390 mmcorrect
Unladen weight	3,410 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	30V / 15Rcorrect
Front tyres	320/70 R 24correct
Rear tyres	480/70 R 30correct
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.6 kW/t (60 kW / 3.4 t)

Power class: Universal (40–100 hp)

Stronger than 56% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the SAME Deutz Fahr Agroplus 320 have?

The SAME Deutz Fahr Agroplus 320 delivers 82 hp.

How much does the SAME Deutz Fahr Agroplus 320 weigh?

The unladen weight is 3,410 kg.

What engine does the SAME Deutz Fahr Agroplus 320 have?

3 cylinders, 3,000 cm³ displacement, Diesel / B 100.

How fast does the SAME Deutz Fahr Agroplus 320 go?

Top speed is 40 km/h.

What are the dimensions of the SAME Deutz Fahr Agroplus 320?

3,560 mm × 2,070 mm × 2,455 mm.

When was the SAME Deutz Fahr Agroplus 320 built?

Production years: 2009.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
