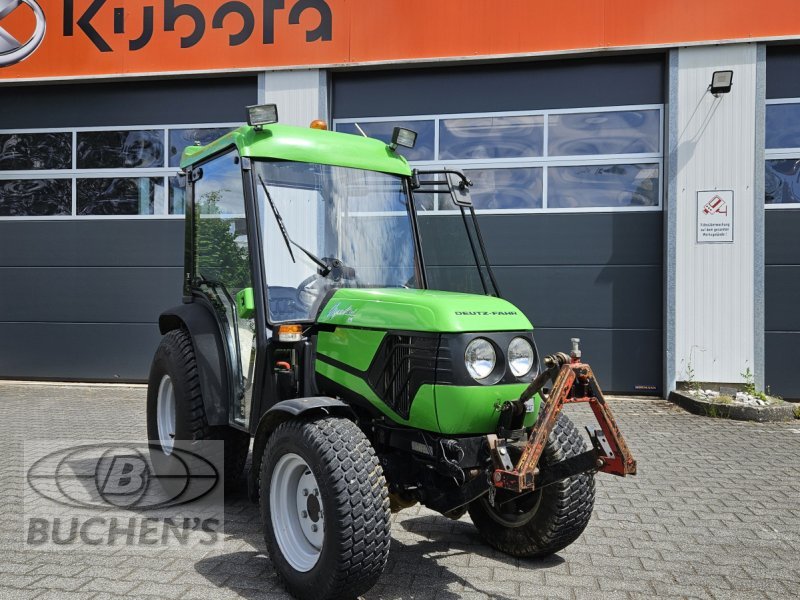

SAME Deutz Fahr Agrokid 35 A
Built: 1996–2004 · Series: Agrokid - Reihe
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrokid: the brand's smallest series, 35 to 47 hp, three- and four-cylinder diesels, choice of mechanical or hydrostatic HST transmission
The Agrokid series occupied Deutz-Fahr's lowest power segment, for small farms, municipal services and part-time farmers, with noticeably lower weight than every other SDF series covered here.
Read on 4 more paragraphs
The register lists 8 live models, from the Agrokid 25 (HST) to the Agrokid 230, built between 1996 and 2008. Output ranges from 18.4 to 35 kW, or 35 to 47 hp, weight from 1,005 to 1,420 kg, displacement from 1,118 to 1,758 cm3, across three- and four-cylinder engines.
The "HST" suffix on the Agrokid 25 denotes a hydrostatic transmission, favoured precisely in this power class for municipal and horticultural applications.
At just over a tonne, the Agrokid stands as the compact counterpart to the large Agrotron and Agrotrac flagships within the same group.
When buying a used Agrokid, besides clutch and hydraulic tightness, on the HST version the condition and tightness of the hydrostatic pump and drive motor matter, as these wear faster under intensive municipal use than a mechanical gearbox; on the small-displacement three- and four-cylinder engines, radiator tightness counts too. Parts run through the SAME Deutz-Fahr group. PTO and three-point hitch correspond in this small power class to ISO 730 Category I at 540 rpm, sufficient for mowers, snow blowers and small trailers. At a rated speed of 3,000 rpm, the small-displacement Agrokid engines spin noticeably faster than the larger SDF series, typical of compact engines of this design.
Sources: SpecCodex register, model data: Deutz-Fahr Agrokid
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.8 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,490 cm³correct |
| Bore | 78 mmcorrect |
| Stroke | 78 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,985 mmcorrect |
|---|---|
| Width | 1,120 mmcorrect |
| Height | 2,000 mmcorrect |
| Wheelbase | 1,630 mmcorrect |
| Ground clearance | 345 mmcorrect |
| Unladen weight | 1,235 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12Rcorrect |
| Front tyres | 7.00-12correct |
| Rear tyres | 11.2 R 20correct |
| Top speed | 27 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.9 kW/t (26 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the SAME Deutz Fahr Agrokid 35 A have?
The SAME Deutz Fahr Agrokid 35 A delivers 35 hp.
How much does the SAME Deutz Fahr Agrokid 35 A weigh?
The unladen weight is 1,235 kg.
What engine does the SAME Deutz Fahr Agrokid 35 A have?
4 cylinders, 1,490 cm³ displacement, Diesel.
How fast does the SAME Deutz Fahr Agrokid 35 A go?
Top speed is 27 km/h.
What are the dimensions of the SAME Deutz Fahr Agrokid 35 A?
2,985 mm × 1,120 mm × 2,000 mm.
When was the SAME Deutz Fahr Agrokid 35 A built?
Production years: 1996–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
