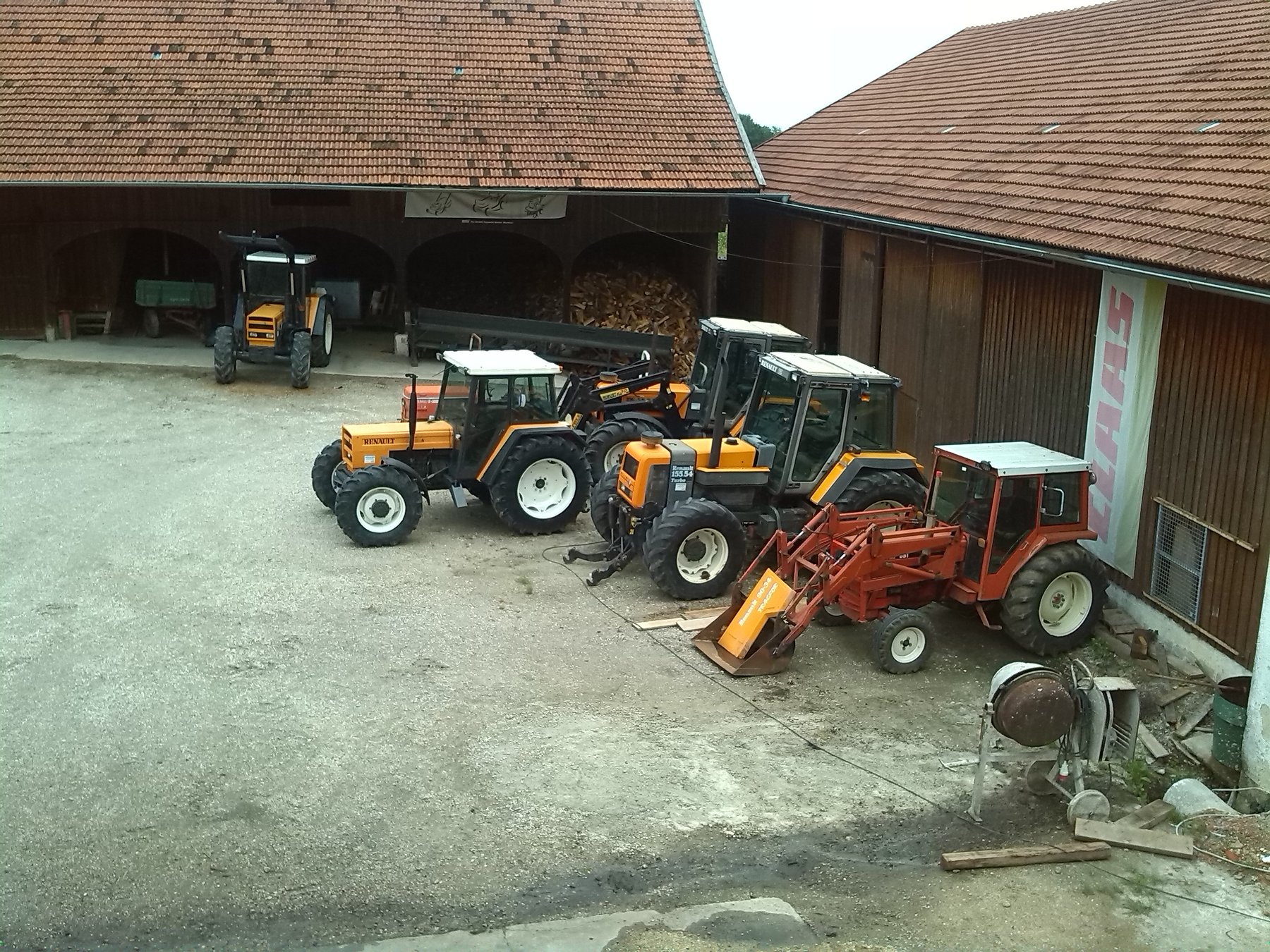

Renault 751
Built: 12/1973–3/1980 · Series: Other models
More machines from model year 1973
Renault – other models: the collective page of French tractors outside the named ranges, from the D and N types through the 651 to 981 ranges to Ceres, Ares and Celtis, 11 to 166 kW, MWM, Deutz and Perkins engines
This page gathers the Renault tractors the register could not assign to a named range – from early post-war models to the ranges shortly before the takeover by Claas in 2003. Renault Agriculture, which emerged from the farm-machinery division of the car maker founded in 1920, built its tractors in Le Mans, France. The type logic changed several times: the D and N types of the 1950s and 1960s (D22, D35, N72) were small, simple utility tractors; the three-digit 651 to 981 ranges of the 1970s and 1980s order the power class in ascending order, -4 marks four-wheel-drive models and (S) the synchro-gearbox version. From the 1990s came ranges with names instead of numbers – Ceres (mid-range), Cergos, Ares (large and mid-range), Atles (big tractors), Celtis (compact class) and Pales and the narrow-track Fructus and Multis models for vineyards and orchards.
Read on 3 more paragraphs
The register lists here 66 versions with 11 to 166.3 kW from two- to six-cylinders of 1,810 to 7,146 cm³, unladen weights from 1,400 to 9,690 kg, lengths from 3,000 to 6,641 mm, widths from 1,220 to 2,550 mm and torque from 113 to 505 Nm at 2,150 to 2,350 rpm; the engines come among others from MWM, Deutz, John Deere, Perkins and Mitsubishi.
For decades Renault was, alongside Massey Ferguson, one of the leading tractor brands in France and strongly represented in viticulture, for which the narrow-track Fructus and Multis ranges were developed; after the 2003 takeover by Claas the models continued for a time under the Renault name before the brand was replaced by Claas by 2005.
On used tractors, engine and clutch condition count on the older D and numbered ranges, electronics, hydraulics and cab-mounting condition on the named ranges of the 1990s, and wear on steering and lift linkage from working between vine rows on the narrow-track vineyard models; parts now run through the Claas network.
Sources: SpecCodex register, model data: Renault (weitere Modelle), Claas (Rechtsnachfolger von Renault Agriculture)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hp (55.2 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 255 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.4correct |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,814 mmcorrect |
|---|---|
| Width | 1,860 mmcorrect |
| Height | 2,545 mmcorrect |
| Wheelbase | 2,374 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 2,995 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12R or 16V/16Rcorrect |
| Front tyres | 7.50-18 ASFcorrect |
| Rear tyres | 16.9-30 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 82 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 6,200correct |
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.4 kW/t (55 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault 751 have?
The Renault 751 delivers 75 hp.
How much does the Renault 751 weigh?
The unladen weight is 2,995 kg.
What engine does the Renault 751 have?
4 cylinders, 4,156 cm³ displacement, Diesel.
How fast does the Renault 751 go?
Top speed is 25 km/h.
What are the dimensions of the Renault 751?
3,814 mm × 1,860 mm × 2,545 mm.
When was the Renault 751 built?
Production years: 12/1973–3/1980.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
