Renault/plandex MASTER/Z
Built: 2018-2024 · Series: Other models
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

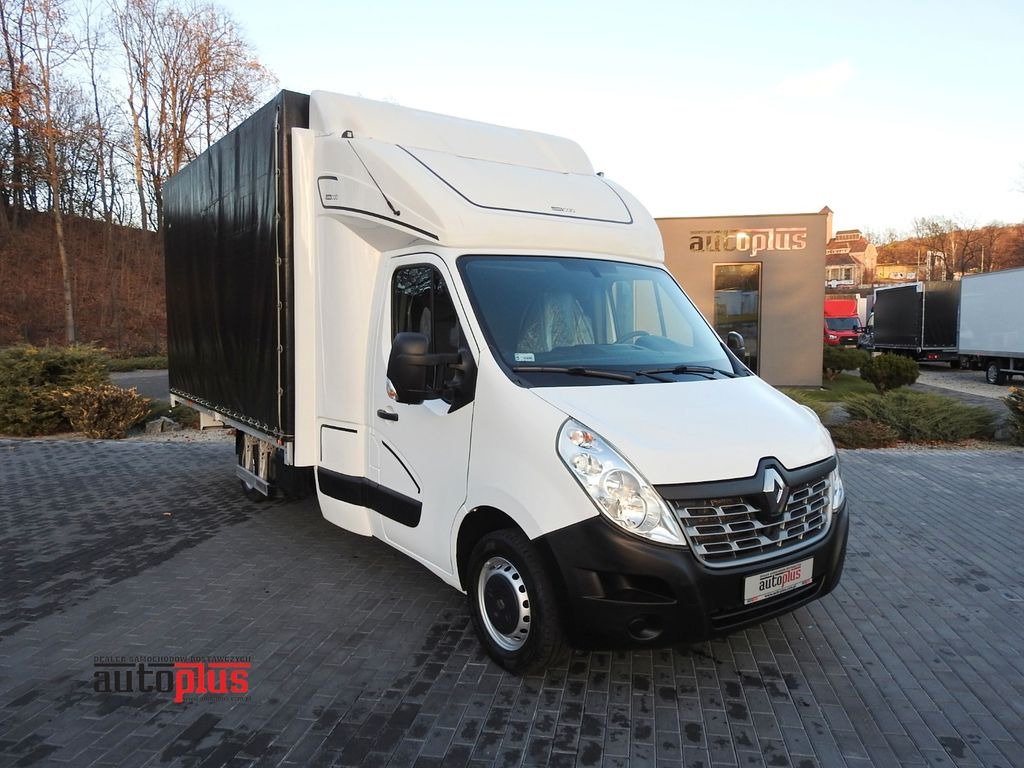

Renault Master with a body by Plandex: four-cylinder engine of 2,299 cm³, 3,500 kg maximum gross weight, 4.34 m wheelbase and a top speed of 160 km/h
The basis of this vehicle is the Renault Master, a light commercial vehicle from the French manufacturer Renault, built for many years as a panel van, dropside and bare chassis for conversions. The register lists not Renault itself as the brand, but the body builder Plandex, who fitted the chassis with its own body. The recorded registrations span 2018 to 2024.
Read on 3 more paragraphs
The engine has four cylinders and a displacement of 2,299 cm³. With a maximum gross weight of 3,500 kg and an unladen weight of 2,850 kg, the payload comes to around 650 kg. Length is 7.15 m, wheelbase 4.34 m and width 2.35 m, with a top speed of 160 km/h. The mid-range unladen weight at these dimensions shows a body that takes up a noticeable, though not extreme, share of the permitted payload.
At a maximum gross weight of 3,500 kg, the vehicle falls into EU class N1 and can be driven in most European countries on a category B licence. Vehicles in this class are subject to the rules for light commercial vehicles rather than the stricter requirements for trucks above 3.5 t. The 4.34 m wheelbase leaves room for a voluminous body without exceeding the permitted axle loads.
Buying a used example like this means checking two separate areas: the chassis with its engine, gearbox and brakes as on any Master, and Plandex's own body with its own wiring, seals and frame mounting. Corrosion where chassis and body meet, leaking body seams and added wiring deserve particular attention, as does the condition of the brakes on a vehicle regularly driven with varying loads.
Sources: SpecCodex-Register: Kennwerte des Modells Renault Master/Z (Plandex)
Technical data
Engine
| Cylinders | 4correct |
|---|---|
| Displacement | 2,299 cm³correct |
Dimensions and weights
| Length | 7,150 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Wheelbase | 4,340 mmcorrect |
| Unladen weight | 2,850 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 160 km/hcorrect |
Frequently asked questions
How much does the Renault/plandex MASTER/Z weigh?
The unladen weight is 2,850 kg.
What is the gross vehicle weight of the Renault/plandex MASTER/Z?
3,500 kg.
What engine does the Renault/plandex MASTER/Z have?
4 cylinders, 2,299 cm³ displacement.
What are the dimensions of the Renault/plandex MASTER/Z?
7,150 mm × 2,350 mm.
When was the Renault/plandex MASTER/Z built?
Production years: 2018-2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
