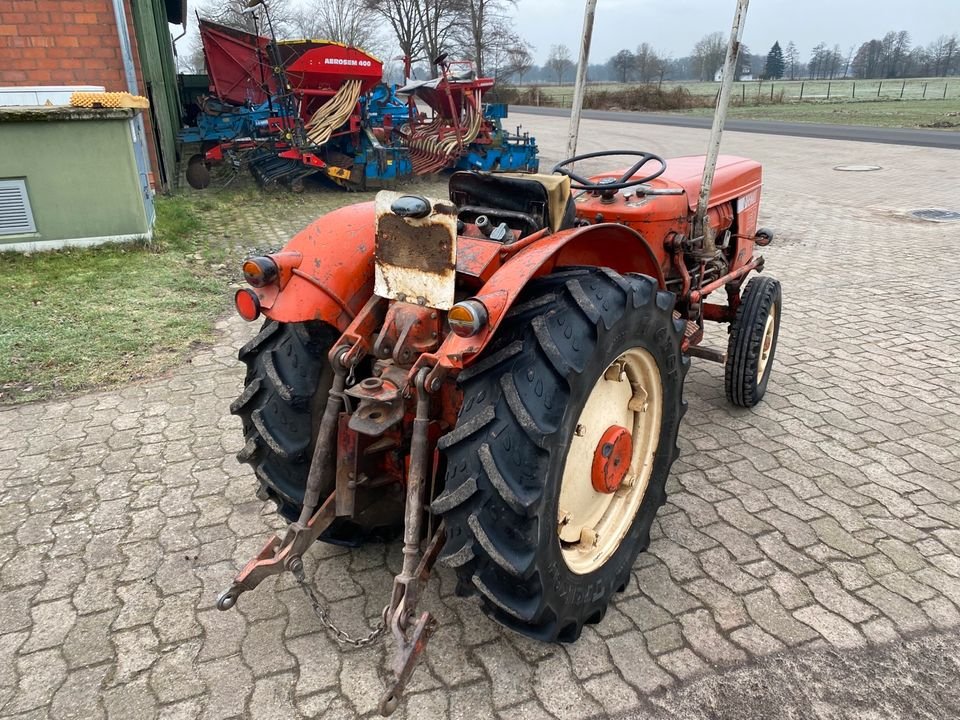

Renault R-50 Vigneron
Built: 1/1968–10/1976 · Series: 50-Baureihe
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Renault R-50 Vigneron (1968-1976): air-cooled two-cylinder vineyard tractor with 24.3 kW output and a width of only 890 mm from the 50 series
Under its 50 series, Renault built narrow specialist tractors for vineyard work, as the Vigneron designation in the model name already indicates. The R-50 Vigneron was built from January 1968 to October 1976 and belongs to the narrow-track special versions of the brand.
Read on 3 more paragraphs
The air-cooled two-cylinder diesel engine displaces 1,701 cm³ and delivers 24.3 kW at 2,150 rpm, equivalent to 33 horsepower. At only 890 mm wide, with a weight of 1,430 kg and a wheelbase of 1,680 mm, the R-50 was tailored to the narrow row spacing of vineyards, with a top speed of 25 km/h.
Narrow-track vineyard tractors must be able to turn between rows of vines that often leave little more than a metre of space, so their overall width was noticeably smaller than that of standard tractors of the same power class. The air-cooled design needed no radiator, saving space in the narrow engine bays typical of such vineyard tractors.
When buying a used R-50 Vigneron, the cooling airflow around the cylinder should be checked, as it is especially prone to fouling behind the tight bodywork of vineyard tractors. The steering and tyres also deserve attention, since frequent work between vine rows with tight turning manoeuvres puts more strain on the steering linkage and tyre sidewalls than straight fieldwork. Fender clearance should be checked too, since narrow vineyard bodywork is easily bent by contact with posts and end stakes.
Sources: SpecCodex-Register: Kennwerte des Modells R-50 Vigneron
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 33 hp (24.3 kW)correct |
| Rated speed | 2,150 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,701 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 176 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,570 mmcorrect |
|---|---|
| Width | 890 mmcorrect |
| Height | 1,200 mmcorrect |
| Wheelbase | 1,680 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 1,430 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1R or 10V/2Rcorrect |
| Front tyres | 4.00-15 ASFcorrect |
| Rear tyres | 9-24 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 4,546correct |
Where this model stands
Power-to-weight ratio: 17 kW/t (24 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Renault R-50 Vigneron have?
The Renault R-50 Vigneron delivers 33 hp.
How much does the Renault R-50 Vigneron weigh?
The unladen weight is 1,430 kg.
What engine does the Renault R-50 Vigneron have?
2 cylinders, 1,701 cm³ displacement, Diesel.
How fast does the Renault R-50 Vigneron go?
Top speed is 25 km/h.
What are the dimensions of the Renault R-50 Vigneron?
2,570 mm × 890 mm × 1,200 mm.
When was the Renault R-50 Vigneron built?
Production years: 1/1968–10/1976.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
