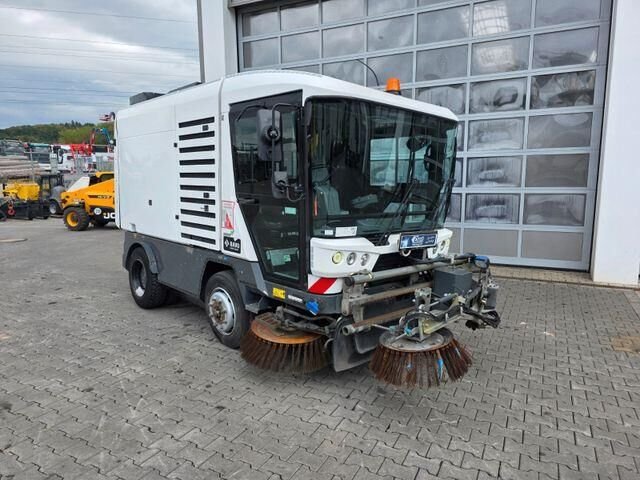

Ravo 560 EURO2
Built: 2006 · Series: Other models
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ravo – other models: the collective page of the Dutch maker's street sweepers registered as trucks, the 560 and 580 ranges with Euro 3 to Euro 6 emission stages, 3.9 to 4.5 litres
This page gathers Ravo street sweepers the register could not assign to a named range. Ravo of Roosendaal in the Netherlands builds suction and sweeping vehicles on its own chassis that are registered as trucks, and belongs to the Bucher Municipal group. The model list shows the 560 and 580 ranges as well as the 5 series with the 580 suffix, each supplemented by the emission stage (Euro 2 to Euro 6), from which the model year can be read approximately.
Read on 3 more paragraphs
The register lists here 29 versions with displacements from 3,900 to 4,485 cm³ from four- to six-cylinders, unladen weights from 5,840 to 11,820 kg, gross weights from 10,100 to 16,000 kg, lengths from 4,460 to 6,260 mm and widths from 1,860 to 2,420 mm.
Ravo sweepers are widespread with municipalities and road-cleaning companies in the Netherlands and neighbouring countries because the compact chassis combines high manoeuvrability in city centres with adequate sweeping and suction performance, which is especially valued in historic town centres with narrow streets.
On used examples, wear on the sweeping brushes, suction turbine and debris tank, corrosion from constant contact with road dirt and de-icing salt, the condition of the hydraulics and chassis engine, and the service history of the body technology count; parts run through Ravo and Bucher Municipal.
Sources: SpecCodex register, model data: Ravo (weitere Modelle), Ravo (Bucher Municipal, Hersteller)
Technical data
Engine
| Cylinders | 4correct |
|---|---|
| Displacement | 3,920 cm³correct |
Dimensions and weights
| Length | 4,470 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Wheelbase | 1,830 mmcorrect |
| Unladen weight | 6,160 kgcorrect |
| Gross vehicle weight | 11,150 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|
Frequently asked questions
How much does the Ravo 560 EURO2 weigh?
The unladen weight is 6,160 kg.
What is the gross vehicle weight of the Ravo 560 EURO2?
11,150 kg.
What engine does the Ravo 560 EURO2 have?
4 cylinders, 3,920 cm³ displacement.
What are the dimensions of the Ravo 560 EURO2?
4,470 mm × 1,900 mm.
When was the Ravo 560 EURO2 built?
Production years: 2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
