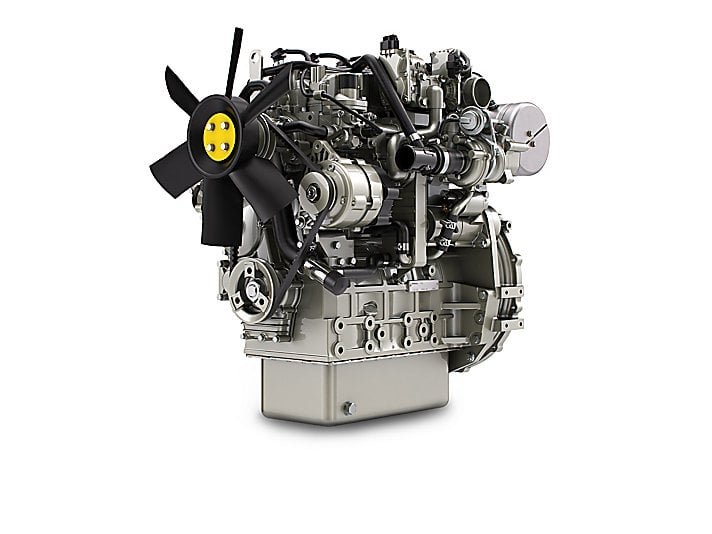

Perkins Engines 404J-E22TA(C2.2)
Built: 2020-2026 · Series: Other models
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Perkins Engines – other nonroad diesel engines: the collective page of the 1100 to 2500 ranges outside the named models, from Peterborough, 4 to 678 kW, dual Caterpillar designation C4.4 to C15
Perkins, headquartered in Peterborough, England, founded in 1932 and wholly part of Caterpillar since 1998, is one of the largest independent diesel-engine makers for construction, agricultural and industrial machinery. This page gathers the engines the register could not assign to a named range, from the 1100 series (1104, 1106) through the 1200 series (1204, 1206) to the 2200 and 2500 ranges; the parallel Caterpillar designations in brackets – C4.4, C6.6, C7.1 – give the displacement in litres and show that Perkins engines have been marketed under both brand names since the Caterpillar takeover.
Read on 3 more paragraphs
The register lists here 352 versions with 4 to 678 kW rated output at 1,500 to 2,800 rpm, from two- to six-cylinders with 67 to 145 mm bore and 72 to 183 mm stroke, torques from 19.1 to 5,500 Nm. The Tier 3 emission stage dominates with 214 versions ahead of Tier 4 (Final or Phase-in) with 72 and Interim Tier 4 with 66; the 75 to 130 kW power category is the most common with 128 versions.
Perkins engines drive construction machinery, telehandlers, compressors, generator sets and mid-size farm machinery; as a Caterpillar subsidiary the brand supplies both the group's own construction machinery and numerous outside manufacturers without their own engine production in this power segment.
On a used purchase, operating hours count, the condition of the turbocharger (predominantly waste-gate design), the injection pump or, on newer model years, the common-rail injectors, the cooling system and charge-air cooler, and on Tier 4 engines the exhaust aftertreatment; since Perkins parts run through both the Perkins and the Caterpillar network, it is worth checking both part numbers.
Sources: SpecCodex register, model data: Perkins Engines (weitere Nonroad-Dieselmotoren), Perkins Engines (Caterpillar, Hersteller)
Technical data
Engine
| Engine code | 6182/2800correct |
|---|---|
| Engine family | RPKXL02.2IR1correct |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 45 kWcorrect |
| Power band | 37<=kW<56correct |
| Rated speed | 2,800 rpmcorrect |
| Maximum torque | 235 N·mcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 84 mmcorrect |
| Stroke | 100 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Waste Gate Turbocharger, Waste Gate Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 6182/2800correct |
|---|---|
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Perkins Engines 404J-E22TA(C2.2) have?
The Perkins Engines 404J-E22TA(C2.2) delivers 45 kW.
When was the Perkins Engines 404J-E22TA(C2.2) built?
Production years: 2020-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
