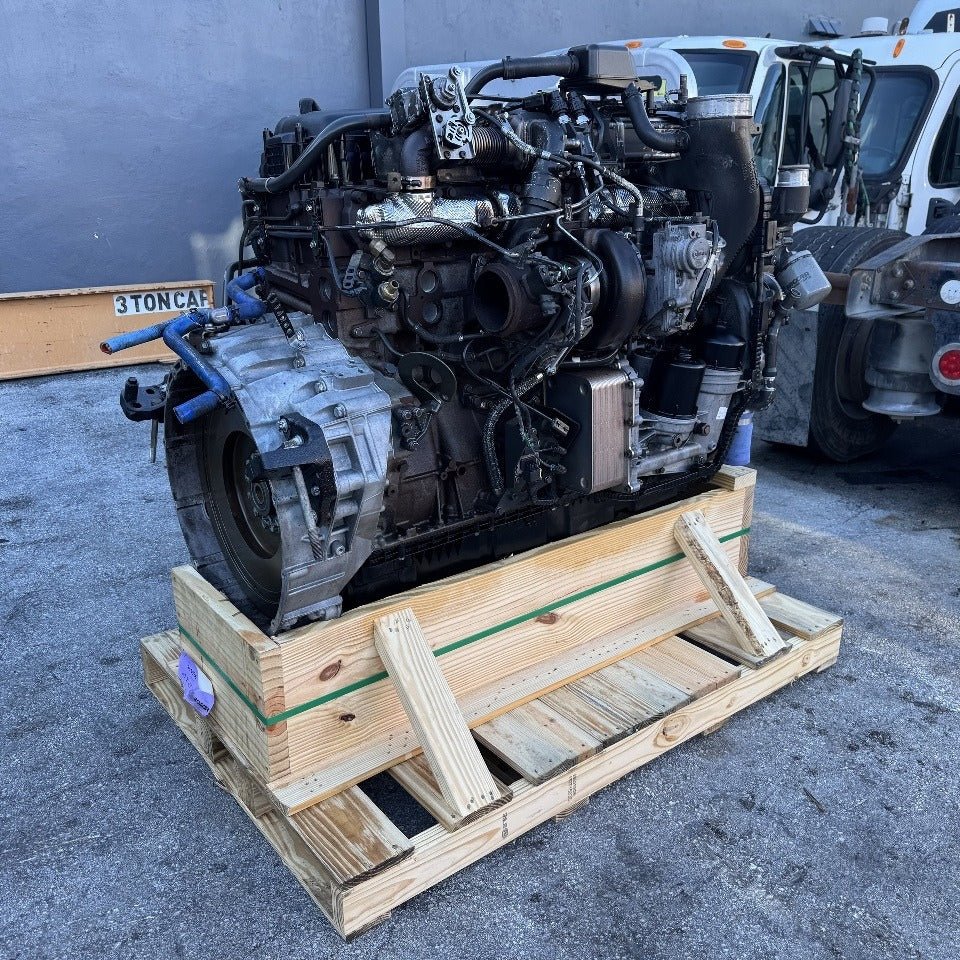

Paccar MX-13_510hp
Built: 2023-2026 · Series: Other models
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
PACCAR – other road engines: the collective page of MX-11 and MX-13 diesel engines outside the named versions, 355 to 510 hp, 10.8 and 12.9 litre displacement, model years 2023 to 2026
PACCAR is the US truck group behind the Kenworth, Peterbilt and DAF brands; the MX engine family has supplied the group's own drive technology for its heavy tractor units since the 2010s. This page gathers the engines the register could not assign to a named version, from the two displacement classes MX-11 (10.8 litres) and MX-13 (12.9 litres); model designations such as MX-11_429hp_MT1650 combine the output rating with the matching transmission coupling.
Read on 3 more paragraphs
The register lists here 21 versions with 355 to 510 hp at a uniform rated speed of 1,600 rpm, all with direct injection and ultra-low-sulphur diesel. Maximum torque ranges from 1,250 to 1,850 Nm at 900 to 1,000 rpm, all versions are certified for model years 2023 to 2026. The 10.8-litre MX-11 forms the majority with 11 versions, the 12.9-litre MX-13 follows with 10.
The MX engines drive the heavy tractor units of Kenworth and Peterbilt in North American long-haul transport; as the group's own engine family, PACCAR stands opposite outside sourcing from the likes of Cummins and covers practically the whole power spectrum of the Class 8 segment.
On a used purchase, operating hours and the service history of the turbocharger, the condition of the injectors and the common-rail high-pressure pump, the function of the diesel particulate filter and SCR catalyst with AdBlue dosing, and the coupling to the respective transmission matter; spares and service run through the Kenworth/Peterbilt dealer network.
Sources: SpecCodex register, model data: PACCAR (weitere Straßenmotoren), PACCAR (manufacturer)
Technical data
Engine
| Engine family | TPCRH12.9C01correct |
|---|---|
| Engine families | TPCRH12.9C01; TPCRH12.9C21; TPCRH12.9M21; SPCRH12.9C01; SPCRH12.9C21; SPCRH12.9M21; RPCRH12.9C01; RPCRH12.9C21; RPCRH12.9M21; PPCRH12.9C21; PPCRH12.9M21correct |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 380.3 kW (= 510 hp)correct |
| Rated speed | 1,600 rpmcorrect |
| Maximum torque | 1,850 ft·lbfcorrect |
| Speed at max. torque | 1,000 rpmcorrect |
| Displacement | 12,900 cm³correct |
| Displacement | 12.9 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Built from | 2023correct |
|---|---|
| Built to | 2026correct |
| Model year from | 2023correct |
| Model year to | 2026correct |
| Sales region | USA certificationcorrect |
Other data
| Application | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Paccar MX-13_510hp have?
The Paccar MX-13_510hp delivers 380 kW.
What engine does the Paccar MX-13_510hp have?
12,900 cm³ displacement, 7-15 ppm ultra low sulfur diesel.
When was the Paccar MX-13_510hp built?
Production years: 2023-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
MX-11_355hp
MX-11_355hp_FE
MX-11_355hp_R
MX-11_375hp
MX-11_402hp
MX-11_402hp_R
MX-11_416hp
MX-11_429hp
MX-11_429hp_FE
MX-11_429hp_MT1650
MX-11_443hp
MX-13_406hp_MT1750
Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Parts for this engine (200)
Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.
| Part number | Description | Manufacturer |
|---|---|---|
| D21-6024 | Accelerator Pedal Sensor | PACCAR |
| D21-6034-000 | Accelerator Pedal Sensor | PACCAR |
| D21-6034-003 | Accelerator Pedal Sensor | PACCAR |
| 2238921 | Air Intake Temp. / Press. Sensor | PACCAR |
| 2318280 | Air Intake Temp. / Press. Sensor | PACCAR |
| 2260397 | A/T Air Shut Off Valve;A/T Air Shut Off Valve;Air-Fuel Shut-Off Valve | PACCAR |
| 2333442 | A/T Air Shut Off Valve;Air-Fuel Shut-Off Valve;A/T Air Shut Off Valve;A/T Air Shut Off Valve;Air-Fuel Shut-Off Valve | PACCAR |
| R59-1079-000000 | Ambient Temperature Sensor | PACCAR |
| R59-6151-0000000 | Ambient Temperature Sensor | PACCAR |
| R59-6155-0000000 | Ambient Temperature Sensor | PACCAR |
| R59-6158-00000 | Ambient Temperature Sensor | PACCAR |
| 2126981 | Boost pressure sensor;Boost pressure sensor;Boost Pressure Sensor;Boost Pressure Sensor | PACCAR |
| 2393515 | Boost pressure sensor;Boost pressure sensor;Boost Pressure Sensor | PACCAR |
| 2326770 | Camshaft position sensor | PACCAR |
| 2327028 | Camshaft position sensor | PACCAR |
| 2388225 | Camshaft position sensor | PACCAR |
| Charge Air Cooler (TBD) | Charge Air Cooler | PACCAR |
| 2185362 | Common Rail | PACCAR |
| 2203682 | Common Rail Pressure Control Valve | PACCAR |
| 2210904 | Common Rail Pressure Sensor | PACCAR |
| 2334767 | Coolant Pump | PACCAR |
| 2345942 | Coolant Pump | PACCAR |
| 2400315 | Coolant Pump | PACCAR |
| 2458968 | Coolant Pump | PACCAR |
| 2383214 | Coolant Pump Cartridge | PACCAR |
| 2424165 | Coolant Pump Cartridge | PACCAR |
| 2458963 | Coolant Pump Cartridge | PACCAR |
| 2334769 | Coolant Pump Driver | PACCAR |
| 2345944 | Coolant Pump Driver | PACCAR |
| 2400313 | Coolant Pump Driver | PACCAR |
| 2433948 | Coolant Pump Driver | PACCAR |
| 2456652 | Coolant Pump Driver | PACCAR |
| 2344747 | Coolant line BPV to HC doser;Coolant lines to HC doser;Coolant lines to HC doser;Coolant line BPV to HC doser | PACCAR |
| 2344746 | Coolant line EGR outlet to BPV | PACCAR |
| 2396308 | Coolant line EGR outlet to BPV;BPV coolant supply line;BPV coolant supply line;Coolant line EGR outlet to BPV | PACCAR |
| 2426952 | Coolant line EGR outlet to BPV | PACCAR |
| 2344748 | Coolant line HC doser to block | PACCAR |
| 2418994 | Coolant lines BPV to HC doser | PACCAR |
| 2393904 | Coolant lines to EGR | PACCAR |
| 2237098 | Coolant lines to HC doser | PACCAR |
| 2411762 | Coolant lines to HC doser | PACCAR |
| 2387897 | Coolant lines to HC doser return | PACCAR |
| 2426954 | Coolant lines to HC doser return | PACCAR |
| 2236553 | Coolant lines to turbocharger | PACCAR |
| 2304847 | Coolant lines to turbocharger | PACCAR |
| 2399216 | Coolant to de-airation block | PACCAR |
| 1607435 | Camshaft position sensor;Crank Speed / Position Sensor;Crank Speed / Position Sensor;Camshaft position sensor;Camshaft position sensor;Crank Speed / Position Sensor;Crankshaft / Position Sensor;Crank Speed / Position Sensor;Crank Speed / Position Sensor;Crankshaft / Position Sensor | PACCAR |
| 2327027 | Crank Speed / Position Sensor | PACCAR |
| 2388224 | Crank Speed / Position Sensor | PACCAR |
| 2326769 | Crank Speed / Position sensor;Crank Speed / Position Sensor;Crank Speed / Position Sensor;Crank Speed / Position sensor;Crank Speed / Position sensor;Crank Speed / Position Sensor | PACCAR |
| 1607436 | Crank speed / position sensor;Camshaft position sensor;Camshaft position sensor;Crank speed / position sensor;Crank speed / position sensor;Camshaft position sensor;Camshaft Position Sensor | PACCAR |
| 2262695 | DEF Doser Filter | PACCAR |
| DEF Line Heater Relay | DEF Line Heater Relay | PACCAR |
| M50-6039 | DEF Backflow Line Heater 3;DEF Suction Line Heater 2;DEF Pressure Line Heater 1;DEF Pressure Line Heater 1;DEF Suction Line Heater 2;DEF Backflow Line Heater 3;DEF Suction Line Heater 2;DEF Backflow Line Heater 3;DEF Pressure Line Heater 1;DEF Backflow Line Heater 3;DEF Pressure Line Heater 1;DEF Suction Line Heater 2;DEF Pressure Line Heater 1;DEF Backflow Line Heater 3;DEF Suction Line Heater 2;DEF Suction Line Heater 2;DEF Pressure Line Heater 1;DEF Backflow Line Heater 3 | PACCAR |
| A063W687 | DEF Pump (Absolute) Pressure;DEF Supply Module Pump Motor;DEF Supply Module Pump Motor;DEF Pump (Absolute) Pressure | PACCAR |
| F90-6014 | DEF Tank Heater Valve | PACCAR |
| M86-6312 | DEF tank | PACCAR |
| M86-6313 | DEF tank | PACCAR |
| M86-6314 | DEF tank | PACCAR |
| M86-6330 | DEF tank | PACCAR |
| M86-6332 | DEF tank | PACCAR |
| M86-6350 | DEF tank | PACCAR |
| M86-6351 | DEF tank | PACCAR |
| M86-6352 | DEF tank | PACCAR |
| M86-6353 | DEF tank | PACCAR |
| M86-6354 | DEF tank | PACCAR |
| M86-6355 | DEF tank | PACCAR |
| M86-6356 | DEF tank | PACCAR |
| M86-6357 | DEF tank | PACCAR |
| M86-6358 | DEF tank | PACCAR |
| M86-6300 | DEF tank assembly | PACCAR |
| M86-6301 | DEF tank assembly | PACCAR |
| M86-6302 | DEF tank assembly | PACCAR |
| M86-6303 | DEF tank assembly | PACCAR |
| M86-6304 | DEF tank assembly | PACCAR |
| M86-6305 | DEF tank assembly | PACCAR |
| M86-6306 | DEF tank assembly | PACCAR |
| M86-6331 | DEF tank assembly | PACCAR |
| M86-6333 | DEF tank assembly | PACCAR |
| m86-1025 | DEF tank assembly;DEF tank assembly;DEF Tank Assembly;DEF Tank Assembly;DEF Tank Assembly;DEF tank assembly | PACCAR |
| m86-1029 | DEF tank assembly;DEF Tank Assembly;DEF tank assembly;DEF Tank Assembly;DEF tank assembly;DEF Tank Assembly | PACCAR |
| 2134929 | DPF (mono) (Module Particulate Filter);Diesel Particulate Filter;Diesel Particulate Filter;DPF (mono) (Module Particulate Filter);Diesel Particulate Filter;DPF (mono) (Module Particulate Filter) | PACCAR |
| 2191860 | DPF (mono) (Module Particulate Filter);Diesel Particulate Filter;Diesel Particulate Filter;DPF (mono) (Module Particulate Filter);DPF (mono) (Module Particulate Filter);Diesel Particulate Filter | PACCAR |
| 2200138 | Delta pressure sensor;Sensor, Pressure;Delta-Pressure Sensor;Delta pressure sensor;Delta pressure sensor;Delta-Pressure Sensor;Delta-Pressure Sensor | PACCAR |
| 2186364 | Diesel Exhaust Fluid Pump | PACCAR |
| 2290991 | Diesel Exhaust Fluid Pump | PACCAR |
| M31-6025 | Diesel Exhaust Fluid Quality Sensor | PACCAR |
| M31-6027 | Diesel Exhaust Fluid Quality Sensor;DEF Tank Temperature Sensor;DEF Tank Temperature Sensor;Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6167 | Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6168 | Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6170 | Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6171 | Diesel Exhaust Fluid Quality Sensor | PACCAR |
| M31-6032-001 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality Sensor | PACCAR |
| M31-6032-002 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality Sensor | PACCAR |
| M31-6032-003 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6207 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6208-001 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6208-002 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6208-003 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6209-001 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality Sensor | PACCAR |
| Q21-6209-002 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6210 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| Q21-6211 | Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality Sensor;Diesel Exhaust Fluid Quality/level/temp Sensor | PACCAR |
| 2131526 | Diesel Oxidation Catalyst | PACCAR |
| 2131532 | Diesel Oxidation Catalyst | PACCAR |
| 2156245 | Diesel Oxidation Catalyst | PACCAR |
| 2156483 | Diesel Oxidation Catalyst | PACCAR |
| 2350552 | Diesel Oxidation Catalyst | PACCAR |
| 2381222 | Diesel Oxidation Catalyst | PACCAR |
| 2381223 | Diesel Oxidation Catalyst | PACCAR |
| 2381224 | Diesel Oxidation Catalyst | PACCAR |
| 2381225 | Diesel Oxidation Catalyst | PACCAR |
| 2382304 | Diesel Oxidation Catalyst | PACCAR |
| 2439927 | Diesel Oxidation Catalyst | PACCAR |
| 2131533 | Diesel Particulate Filter | PACCAR |
| 2350550 | Diesel Particulate Filter | PACCAR |
| 2381231 | Diesel Particulate Filter | PACCAR |
| 2332297 | Downpipe Low Route;Exhaust Manifold | PACCAR |
| 2194925 | EGR cooler | PACCAR |
| 2346033 | EGR cooler | PACCAR |
| 2400908 | EGR cooler | PACCAR |
| 2393439 | EGR Delta Pressure Sensor | PACCAR |
| 2003641 | EGR Delta pressure sensos;EGR Delta Pressure Sensor;EGR Delta Pressure Sensor;EGR Delta pressure sensos;EGR Delta pressure sensos;EGR Delta Pressure Sensor | PACCAR |
| 2318904 | EGR Flex Pipes | PACCAR |
| 2210374 | EGR Valve | PACCAR |
| 2243011 | EGR Valve | PACCAR |
| 2339640 | EGR Valve | PACCAR |
| 2344223 | EGR Valve | PACCAR |
| 2381128 | EGR Valve | PACCAR |
| 2393485 | EGR Valve | PACCAR |
| 2398853 | EGR Valve | PACCAR |
| 2407994 | EGR Valve | PACCAR |
| 2418868 | EGR Valve | PACCAR |
| 2439230 | EGR Valve | PACCAR |
| 2458411 | EGR Valve | PACCAR |
| 2191702 | EGR Flex Pipes;EGR flex pipes;EGR Flex Pipes;EGR flex pipes;EGR flex pipes;EGR Flex Pipes | PACCAR |
| 1873020 | EGR temperature sensor;EGR Temperature Sensor;EGR Temperature Sensor;EGR temperature sensor;EGR temperature sensor;EGR Temperature Sensor | PACCAR |
| 2302978 | Temperature sensor;EGR temperature sensor;EGR temperature sensor;Temperature sensor | PACCAR |
| 2302980 | EGR temperature sensor;Temperature sensor | PACCAR |
| 2256031 | Electronic Control Module | PACCAR |
| 2300479 | Electronic Control Module | PACCAR |
| 2302109 | Electronic Control Module | PACCAR |
| 2342786 | Electronic Control Module | PACCAR |
| 2112272 | Engine oil temperature sensor;Fuel Temperature;Coolant temperature sensor;Coolant Temperature Sensor;Engine oil temperature sensor;Coolant temperature sensor;Engine Oil Temperature Sensor;Fuel Temperature;Coolant Temperature Sensor;Engine Oil Temperature Sensor;Coolant Temperature Sensor;Engine oil temperature sensor;Fuel Temperature;Coolant temperature sensor;Coolant Temperature Sensor;Fuel Temperature;Engine Oil Temperature Sensor;Coolant temperature sensor;Engine oil temperature sensor;Engine Oil Temperature Sensor;Coolant temperature sensor;Fuel Temperature;Engine oil temperature sensor;Coolant Temperature Sensor;Engine Oil Temperature Sensor;Fuel Temperature;Coolant Temperature Sensor;Coolant temperature sensor;Engine oil temperature sensor;Fuel Temperature;Coolant temperature sensor;Engine Oil Temperature Sensor;Coolant Temperature Sensor;Engine oil temperature sensor;Coolant Temperature Sensor;Engine oil temperature sensor;Fuel Temperature;Engine Oil Temperature Sensor;Coolant temperature sensor;Coolant Temperature Sensor;Engine Oil Temperature Sensor;Fuel Temperature;Engine oil temperature sensor;Coolant temperature sensor;Engine Oil Temperature Sensor;Fuel Temperature;Coolant Temperature Sensor;Fuel Temperature;Coolant Temperature Sensor;Engine Oil Temperature Sensor;Engine Oil Temperature Sensor;Coolant Temperature Sensor;Fuel Temperature | PACCAR |
| 2397738 | Exhaust Heater Control Unit | PACCAR |
| 2418255 | Exhaust Heater Control Unit | PACCAR |
| 2418256 | Exhaust Heater Control Unit | PACCAR |
| 2418257 | Exhaust Heater Control Unit | PACCAR |
| 2420093 | Exhaust Heater Control Unit | PACCAR |
| 2425783 | Exhaust Heater Control Unit | PACCAR |
| 2425785 | Exhaust Heater Control Unit | PACCAR |
| 2464334 | Exhaust Heater Control Unit | PACCAR |
| 2333935 | Exhaust Manifold | PACCAR |
| 2333939 | Exhaust Manifold | PACCAR |
| 2047461 | Exhaust Manifold (Front);Exhaust manifold;Exhaust Manifold;Exhaust manifold;Exhaust manifold;Exhaust Manifold | PACCAR |
| 2124731 | Exhaust Manifold (Middle) | PACCAR |
| 2047447 | Exhaust Manifold (Rear);Exhaust manifold;Exhaust manifold;Exhaust Manifold;Exhaust Manifold;Exhaust manifold | PACCAR |
| 2124729 | Exhaust Manifold (assembly);Exhaust Manifold (assembly);Exhaust Manifold;Exhaust Manifold;Exhaust Manifold (assembly) | PACCAR |
| 2406414 | Exhaust Manifold (assembly);Exhaust Manifold;Exhaust Manifold;Exhaust manifold;Exhaust Manifold (assembly) | PACCAR |
| 2440218 | Exhaust Manifold (assembly);Exhaust Manifold;Exhaust Manifold;Exhaust manifold;Exhaust Manifold;Exhaust Manifold (assembly);Exhaust Manifold (assembly);Exhaust manifold;Exhaust Manifold | PACCAR |
| 2210375 | Exhaust throttle valve | PACCAR |
| 2243026 | Exhaust throttle valve | PACCAR |
| 2243027 | Exhaust throttle valve | PACCAR |
| 2339629 | Exhaust throttle valve | PACCAR |
| 2339630 | Exhaust throttle valve | PACCAR |
| 2344224 | Exhaust throttle valve | PACCAR |
| 2393518 | Exhaust throttle valve | PACCAR |
| 2418876 | Exhaust throttle valve | PACCAR |
| 2458403 | Exhaust throttle valve | PACCAR |
| F17-1023-001 | Fan Speed Sensor | PACCAR |
| F17-1023-002 | Fan Speed Sensor | PACCAR |
| F17-1023-003 | Fan Speed Sensor | PACCAR |
| F17-1023-004 | Fan Speed Sensor | PACCAR |
| F17-1034-001 | Fan Speed Sensor | PACCAR |
| F17-1034-002 | Fan Speed Sensor | PACCAR |
| F17-1034-003 | Fan Speed Sensor | PACCAR |
| F17-1034-004 | Fan Speed Sensor | PACCAR |
| F17-1037-001 | Fan Speed Sensor | PACCAR |
| F17-1054 | Fan Speed Sensor | PACCAR |
| 2185361 | Fuel Injection Pump | PACCAR |
| 2328007 | Fuel Injection Pump | PACCAR |
| 2344776 | Fuel Injection Pump | PACCAR |
| 2243494 | Fuel Injector | PACCAR |
| 2301928 | Fuel Injector | PACCAR |
| 2314737 | Fuel Injector | PACCAR |
| 2383581 | Fuel Injector | PACCAR |
| 2393269 | Fuel Injector | PACCAR |
| 2393821 | Fuel Injector | PACCAR |
| 2394548 | Fuel Injector | PACCAR |
| 2403201 | Fuel Injector | PACCAR |
| 2403776 | Fuel Injector | PACCAR |
| 2403778 | Fuel Injector | PACCAR |
| 2410290 | Fuel Injector | PACCAR |
| 2426854 | Fuel Injector | PACCAR |
| 2426856 | Fuel Injector | PACCAR |
| 2428774 | Fuel Injector | PACCAR |
| 2429855 | Fuel Injector | PACCAR |
| 2477785 | Fuel Injector | PACCAR |
| 2477787 | Fuel Injector | PACCAR |
| 2477789 | Fuel Injector | PACCAR |
Source: EPA HD Engines 2015–Present
Enquire about these parts
