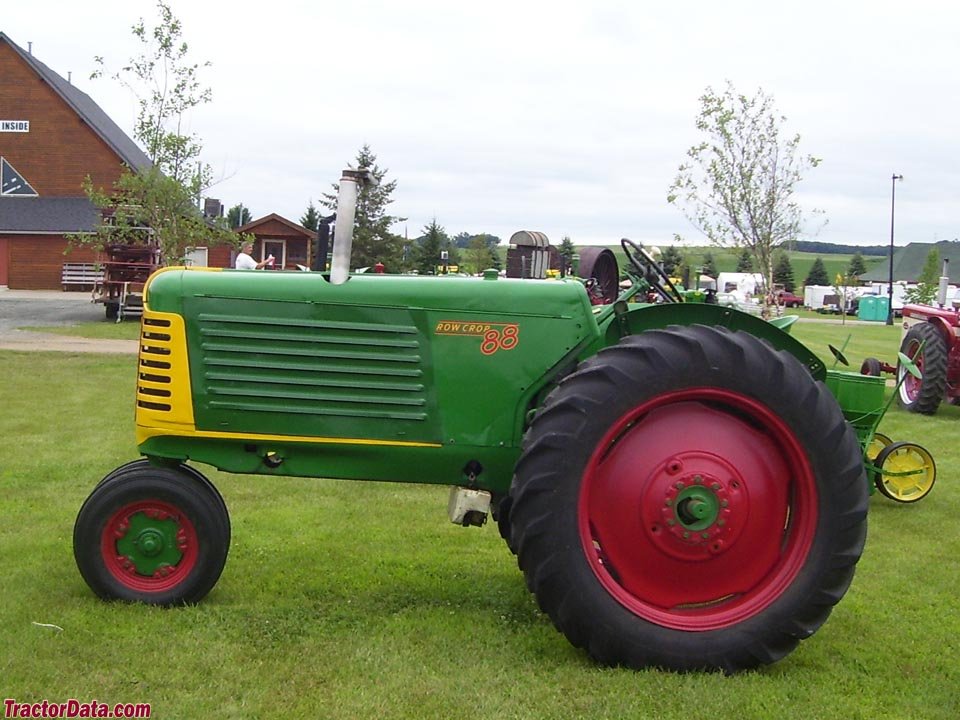

Oliver 88 HC/KD

Built: 1947–1954 · Series: FLEETLINE-SERIE

More machines from model year 1947

Source: https://www.tractordata.com/farm-tractors/000/6/7/674-oliver

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FLEETLINE series from Oliver includes the 88 HC/KD. Production: 1947–1954. The engine delivers 41.5 hp (30.5 kW), has 6 cylinders, with a displacement of 3,784 cm³. Rated speed is 1,600 rpm. The machine is 3,604 mm long, 1,727 mm wide and 1,753 mm high. The unladen weight is 2,173 kg. The wheelbase measures 2,007 mm. Top speed is 20 km/h. Transmission: 6 V/2 R or 4 V/4 R. The engine is water-cooled. Tyres: front 6.00 x 16 (RC = 9.00 x 10), rear 13 x 26 (RC = 12 x 38). The fuel is Benzin/Kerosin/LPG/Diesel. The bore measures 88.9 mm. The stroke is 101.6 mm. The compression ratio is 6.75:1. Construction: frame construction. Around 7.966 (RC = 23.232) units were built. The FLEETLINE-SERIE series covers 4 models. Rated output within it ranges from 25 to 65 hp; the 88 HC/KD sits in the middle of that range with 41.5 hp. Its immediate neighbours are the 77 HC/KD below it with 36 hp and the 99 above it with 65 hp. Unladen weight within it ranges from 1,315 to 3,758 kg; here the 88 HC/KD sits in the lower part of that range with 2,173 kg. 70 Oliver models across 13 series are on record.

Oliver Fleetline series: the post-war 66 to 99 range from 1948 to 1954, 18.4 to 47.8 kW from four- to six-cylinder engines of 2,118 to 4,942cc, optional petrol, kerosene, LPG or diesel operation

The Fleetline series replaced Oliver's pre-war 70/80/90 range in 1948 and ran until 1954 with four base models: the 66, 77, 88 and 99; the HC and KD suffixes denote different versions within the 77 and 88 series. The engines came from Oliver's collaboration with Waukesha and, depending on the model, were set up for petrol, kerosene, LPG or diesel, letting post-war American farms choose whichever fuel was cheapest to hand.

Read on 3 more paragraphs

The register lists 4 versions with 18.4 to 47.8 kW from four- to six-cylinder engines of 2,118 to 4,942cc, kerb weights from 1,315 to 3,758 kg, lengths from 3,146 to 3,604 mm, widths from 1,583 to 1,727 mm, heights from 1,373 to 1,753 mm and rated speeds from 1,600 to 1,675 rpm.

The Fleetline series marked Oliver's move into modern post-war farm machinery with streamlined bodywork, an enclosed radiator grille and the six-cylinder engines in the larger models that became characteristic of the brand; it competed with the John Deere Model A/B, Farmall H/M and Massey-Harris 44.

When buying used, check the carburettor or fuel system according to fuel type, engine oil-tightness, clutch and gearbox condition, and corrosion on the mudguards and body panels; spare parts for the widely produced Fleetline series are comparatively easy to find through the North American vintage tractor market.

Sources: SpecCodex register, model data: Oliver Fleetline-Serie

Technical data

Engine

Fuel	Benzin/Kerosin/LPG/Dieselcorrect
Power	41.5 hp (30.5 kW)correct
Rated speed	1,600 rpmcorrect
Cylinders	6correct
Displacement	3,784 cm³correct
Bore	88.9 mmcorrect
Stroke	101.6 mmcorrect
Compression ratio	6.75correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,604 mmcorrect
Width	1,727 mmcorrect
Height	1,753 mmcorrect
Wheelbase	2,007 mmcorrect
Ground clearance	RC: 632 mmcorrect
Unladen weight	2,173 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	6 V/2 R or 4 V/4 Rcorrect
Front tyres	6.00 x 16 (RC = 9.00 x 10)correct
Rear tyres	13 x 26 (RC = 12 x 38)correct
Top speed	20 km/hcorrect

Origin and approval

Construction	frame constructioncorrect
Units built	7.966 (RC = 23.232)correct

Where this model stands

Power-to-weight ratio: 14 kW/t (30 kW / 2.2 t)

Power class: Universal (40–100 hp)

Stronger than 27% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Oliver 88 HC/KD have?

The Oliver 88 HC/KD delivers 41.5 hp.

How much does the Oliver 88 HC/KD weigh?

The unladen weight is 2,173 kg.

What engine does the Oliver 88 HC/KD have?

6 cylinders, 3,784 cm³ displacement, Benzin/Kerosin/LPG/Diesel.

How fast does the Oliver 88 HC/KD go?

Top speed is 20 km/h.

What are the dimensions of the Oliver 88 HC/KD?

3,604 mm × 1,727 mm × 1,753 mm.

When was the Oliver 88 HC/KD built?

Production years: 1947–1954.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
