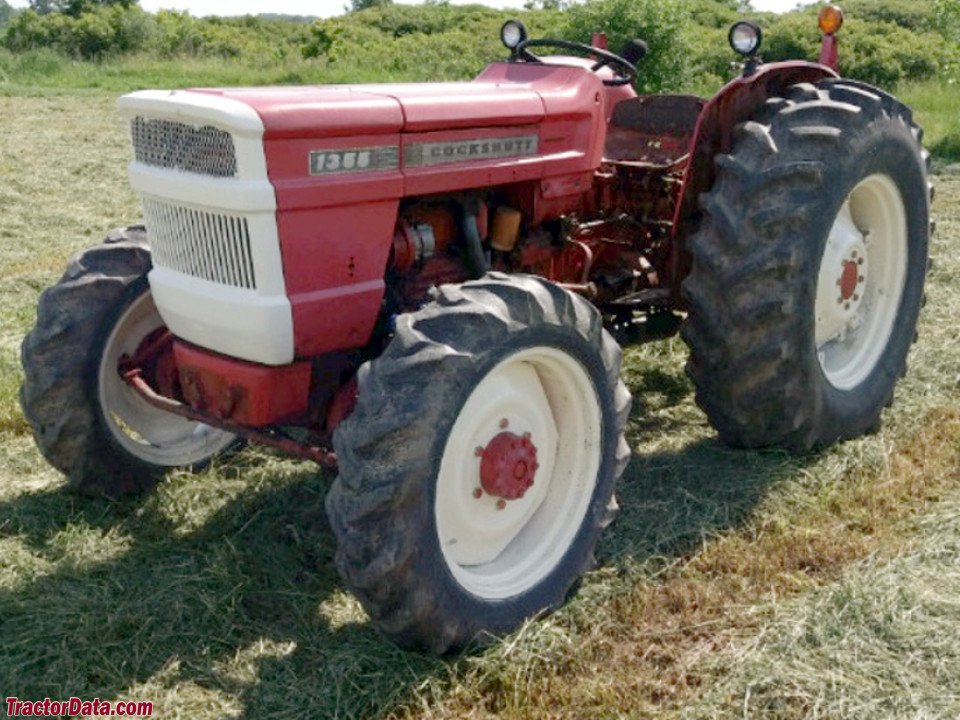

Oliver / Fiat 1355 (4 WD)
Built: 1969–1971 · Series: 55 er-Baureihe
More machines from model year 1969
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Oliver / Fiat 55 series – four-wheel-drive tractors built in Italy for Oliver's European network: 1255 and 1355, 30.9 to 40.5 kW, three- to four-cylinder engines of 2,339 to 3,119 cm³
Oliver, the tractor maker from Charles City, Iowa, had its own ranges built by Fiat in Italy for the European market during the 1960s; the 55 series names approximately the power class in hp. It comprises the two four-wheel-drive models 1255 and 1355. Sales ran through Oliver's European dealer network, while the technical base was closely aligned with contemporary Fiat ranges.
Read on 3 more paragraphs
The register lists here 2 versions with 30.9 to 40.5 kW from three- to four-cylinder engines of 2,339 to 3,119 cm³, an unladen weight of 1,870 to 2,000 kg, a length of 2,921 to 3,099 mm, a width of 1,598 to 1,778 mm, a height of 1,488 to 1,539 mm, torque of 143 to 186 Nm and a rated speed of 2,400 rpm.
The range targeted medium-sized arable farms in Europe and stands in close technical kinship with contemporary Fiat tractors of the same power class, with which it shared engines and chassis. These models competed with other mid-range standard tractors of the 1960s on the Western European market, without departing fundamentally in technical terms from their Fiat origin.
Buyers of used units should check the front axle on the four-wheel-drive versions, clutch and gearbox, and the hydraulics, as well as rust on the bodywork and mudguards; because production has ended, spares run mostly through Fiat parts stocks and specialist vintage-tractor dealers. An inspection should also cover the alternator, starter motor and the seals on the engine and gearbox.
Sources: SpecCodex register, model data: Oliver / Fiat 55er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 55 hp (40.5 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 186 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,119 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 2 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,099 mmcorrect |
|---|---|
| Width | 1,778 mmcorrect |
| Height | 1,539 mmcorrect |
| Wheelbase | 2,070 mmcorrect |
| Ground clearance | 478 mmcorrect |
| Unladen weight | 2,000 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 R or 12 V/3 Rcorrect |
| Front tyres | 6.00-16 (4WD: 9.5-24)correct |
| Rear tyres | 14.9-28 (4WD: 16.9-30)correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.2 kW/t (40 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 38% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Oliver / Fiat 1355 (4 WD) have?
The Oliver / Fiat 1355 (4 WD) delivers 55 hp.
How much does the Oliver / Fiat 1355 (4 WD) weigh?
The unladen weight is 2,000 kg.
What engine does the Oliver / Fiat 1355 (4 WD) have?
4 cylinders, 3,119 cm³ displacement, Diesel.
How fast does the Oliver / Fiat 1355 (4 WD) go?
Top speed is 25 km/h.
What are the dimensions of the Oliver / Fiat 1355 (4 WD)?
3,099 mm × 1,778 mm × 1,539 mm.
When was the Oliver / Fiat 1355 (4 WD) built?
Production years: 1969–1971.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
