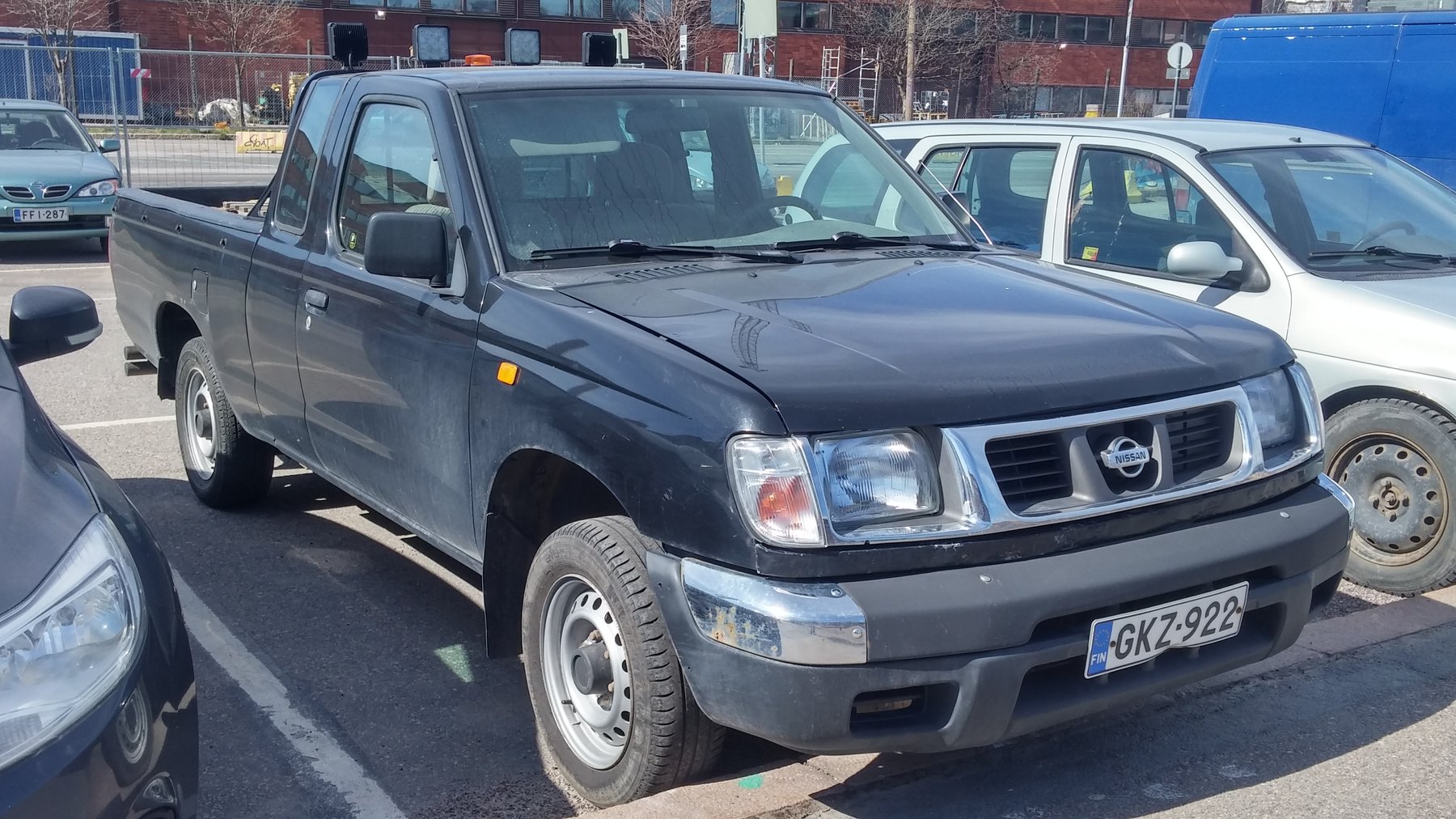

Nissan King Cab 2.5Di

Built: 2002-2007 · Series: KING CAB

More machines from model year 2002

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Nissan King Cab 2.5Di is a model in the KING CAB series. Production: 2002-2007. The engine delivers 98 kW, has 4 cylinders, with a displacement of 2,480 cm³. The vehicle is 5,190 mm long and 1,830 mm wide. The unladen weight is 1,970 kg. The gross vehicle weight is 2,860 kg. The gearbox offers 5 gears. The KING CAB series covers 35 models. Rated output within it ranges from 53 to 98 kW; the King Cab 2.5Di sits at the top of that range with 98 kW. Its immediate neighbours are the KING CAB 4WD below it with 97 kW. Unladen weight within it ranges from 1,580 to 2,530 kg; here the King Cab 2.5Di sits in the middle of that range with 1,970 kg. 1264 Nissan models across 47 series are on record.

Nissan KING CAB – collective page of the extended-cab pickup (D21/D22 platform, Navara): four- and six-cylinder engines from 1,952 to 2,635 cm³, 53 to 98 kW, gross weights up to 2,905 kg

This page gathers the King Cab versions of Nissan's pickups, whose extended cabin with small rear seats or extra space behind the front seats sits between the two-door base model and the four-door double cab. The range traces back to the D21 platform of the 1980s, continued through the D22 generation up to the successor marketed as Navara; King Cab denotes the body variant, not a separate model line. The model list shows both diesel and petrol versions with four-wheel and rear-wheel drive, some marked additionally with the Navara name.

Read on 3 more paragraphs

The register lists 35 versions here with 53 to 98 kW from four- to six-cylinder engines of 1,952 to 2,635 cm³, kerb weights of 1,400 to 2,600 kg, gross vehicle weights of 2,470 to 2,905 kg, lengths of 4,950 to 5,275 mm and widths of 1,690 to 2,180 mm.

For decades the King Cab was the compromise model between a pure working vehicle and a family-friendly leisure pickup, competing with comparable extended cabs from the Toyota Hilux, Mitsubishi L200 and Ford Ranger. In Europe the range was used both commercially as a tradesman's and site vehicle and privately, while in many markets outside Europe it remains a common working vehicle to this day.

On used examples it is worth checking the frame for corrosion, especially around the leaf springs and tow hitch, as well as load bed wear and cab roof sealing. The diesel engines should be checked for turbocharger, injection pump and timing chain condition, and four-wheel-drive versions additionally for the transfer case and free-wheeling hubs. Spare parts are readily available through the Nissan dealer network and a wide range of aftermarket parts for the D21/D22 range.

Sources: SpecCodex register, model data: Nissan KING CAB, Nissan (manufacturer)

Technical data

Engine

Power98 kWcorrect
Cylinders4correct
Displacement2,480 cm³correct

Dimensions and weights

Length5,190 mmcorrect
Width1,830 mmcorrect
Unladen weight1,970 kgcorrect
Gross vehicle weight2,860 kgcorrect

Drivetrain and chassis

Gears5correct

Where this model stands

Power-to-weight ratio: 49.7 kW/t (98 kW / 2 t)

Stronger than 67% of the vans in the register — out of 7,144 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Nissan King Cab 2.5Di have?

The Nissan King Cab 2.5Di delivers 98 kW.

How much does the Nissan King Cab 2.5Di weigh?

The unladen weight is 1,970 kg.

What is the gross vehicle weight of the Nissan King Cab 2.5Di?

2,860 kg.

What engine does the Nissan King Cab 2.5Di have?

4 cylinders, 2,480 cm³ displacement.

What are the dimensions of the Nissan King Cab 2.5Di?

5,190 mm × 1,830 mm.

When was the Nissan King Cab 2.5Di built?

Production years: 2002-2007.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
