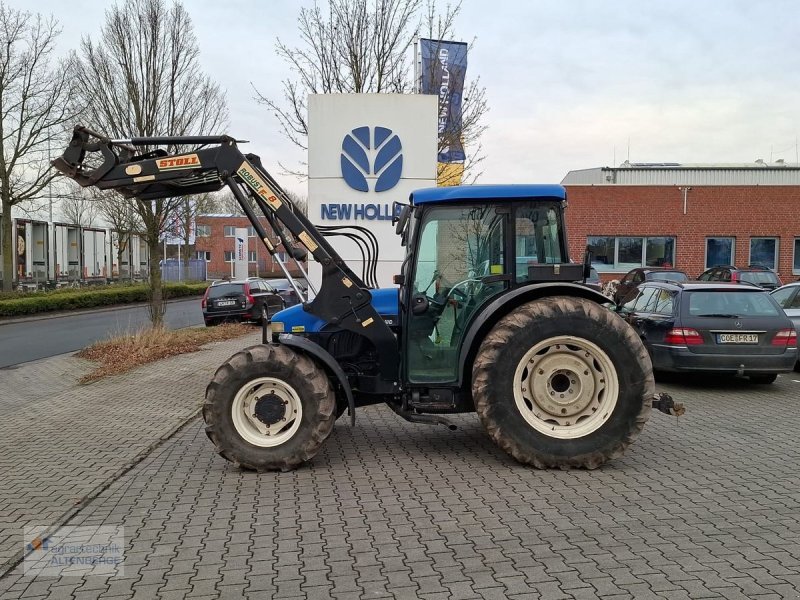

Nh Geotech TN 75 D (DT)
Built: 1999–2004 · Series: TN-D-Baureihe
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland Geotech TN-D-range – the TN 75 D and TN-65 D from Jesi: three-cylinder diesel, 44.2 to 53 kW, four-wheel-drive (DT) versions
New Holland Geotech was a range of all-purpose tractors built during the 1990s within the Fiat group at the Jesi plant in Italy. The TN 75 D and TN-65 D of the TN-D range follow a type logic in which the number denotes the approximate output in metric horsepower; the DT suffix marks the four-wheel-drive versions. The New Holland Geotech name reflects the transitional period in which the Fiat group gradually merged its tractor brands – Fiat, Ford and New Holland – under the New Holland name.
Read on 3 more paragraphs
The register lists here 2 versions with 44.2 to 53 kW from three-cylinder engines of 2,930 cm³ displacement and 206 to 274 Nm of torque, with an unladen weight of 3,060 kg, a length of 3,980 mm, widths from 1,850 to 2,158 mm and a height of 2,400 mm.
The TN-D range counted among the mid power segment of all-purpose tractors for arable and grassland farms and was direct competition for New Holland against comparable models from Deutz-Fahr, Massey Ferguson and John Deere of the same era. With four-wheel drive and compact dimensions, the DT versions suited grassland farms and front-loader work particularly well.
When buying used, check operating hours and condition of the three-cylinder engine, the condition of the clutch and gearbox, the tightness of the hydraulics, and rust on the chassis and cab. The condition of the cab and its controls is also worth checking, as tractors of this era already featured simple cab suspension. Spares and service run through the New Holland dealer network.
Sources: SpecCodex register, model data: New Holland Geotech TN-D-Baureihe, New Holland (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 72 hp (53 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 274 Nmcorrect |
| Speed at max. torque | 1,392 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,930 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 18.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 1,850 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,130 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 3,060 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16R, 32V/16R and 44V/16Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 380/70 R 20 AS)correct |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.3 kW/t (53 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 50% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nh Geotech TN 75 D (DT) have?
The Nh Geotech TN 75 D (DT) delivers 72 hp.
How much does the Nh Geotech TN 75 D (DT) weigh?
The unladen weight is 3,060 kg.
What engine does the Nh Geotech TN 75 D (DT) have?
3 cylinders, 2,930 cm³ displacement, Diesel.
How fast does the Nh Geotech TN 75 D (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Nh Geotech TN 75 D (DT)?
3,980 mm × 1,850 mm × 2,400 mm.
When was the Nh Geotech TN 75 D (DT) built?
Production years: 1999–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
