Nh Geotech TN 55 D (DT)
Built: 1999–2004 · Series: TN-Baureihe
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

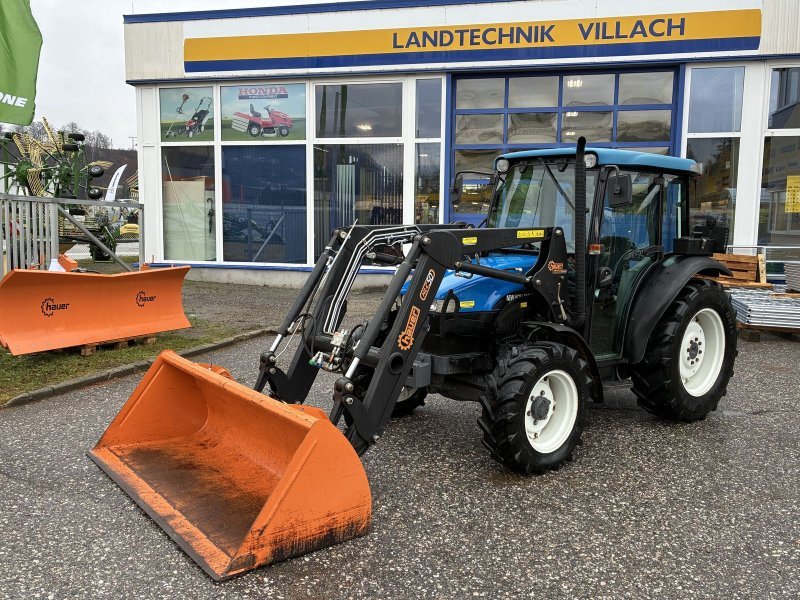

New Holland TN 55 D (DT): three-cylinder compact tractor of the TN range with four-wheel drive, 36.8 kW output, built between 1999 and 2004
The TN range belongs to New Holland's compact general-purpose tractors, offered in two-wheel and four-wheel drive versions for smaller and medium holdings as well as municipal use.
Read on 3 more paragraphs
The TN 55 D (DT) is powered by a three-cylinder diesel engine of 2.9 litres, delivering 36.8 kW at 2,300 rpm, roughly 50 hp, with 185 Nm of torque. On manufacturers with Italian roots, the DT suffix stands for doppia trazione, meaning four-wheel drive; at an unladen weight of 3,010 kg and a wheelbase of 2,130 mm, the machine has a design top speed of 30 km/h.
Compact four-wheel-drive tractors of this power class suit grassland work, transport and implements driven off the power take-off at the standard speeds of 540 or 1,000 rpm. The combination of four-wheel drive and a relatively low unladen weight makes it easier to work on waterlogged grassland without compacting the soil excessively. The lower top speed of 30 km/h places the tractor, under German rules, in driving licence category L.
When buying a used four-wheel-drive compact tractor of this age, check the front axle transfer gearbox and freewheel hubs, since four-wheel-drive components wear unevenly under uneven use. The power-take-off clutch, the tightness of hydraulic couplings and cracks in the axle boots, which are usually the first parts to fail on four-wheel-drive tractors, are equally worth checking.
Sources: SpecCodex-Register: Kennwerte des Modells New Holland TN 55 D (DT)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 50 hp (36.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 185 Nmcorrect |
| Speed at max. torque | 1,100 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,930 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 18.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 1,794 mmcorrect |
| Height | 2,310 mmcorrect |
| Wheelbase | 2,130 mmcorrect |
| Ground clearance | 330 mmcorrect |
| Unladen weight | 3,010 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16R, 32V/16R and 44V/16Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 11.2 R 20 AS)correct |
| Rear tyres | 14.9 R 28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 12.2 kW/t (37 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nh Geotech TN 55 D (DT) have?
The Nh Geotech TN 55 D (DT) delivers 50 hp.
How much does the Nh Geotech TN 55 D (DT) weigh?
The unladen weight is 3,010 kg.
What engine does the Nh Geotech TN 55 D (DT) have?
3 cylinders, 2,930 cm³ displacement, Diesel.
How fast does the Nh Geotech TN 55 D (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Nh Geotech TN 55 D (DT)?
3,980 mm × 1,794 mm × 2,310 mm.
When was the Nh Geotech TN 55 D (DT) built?
Production years: 1999–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
