New Holland TM155 4WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

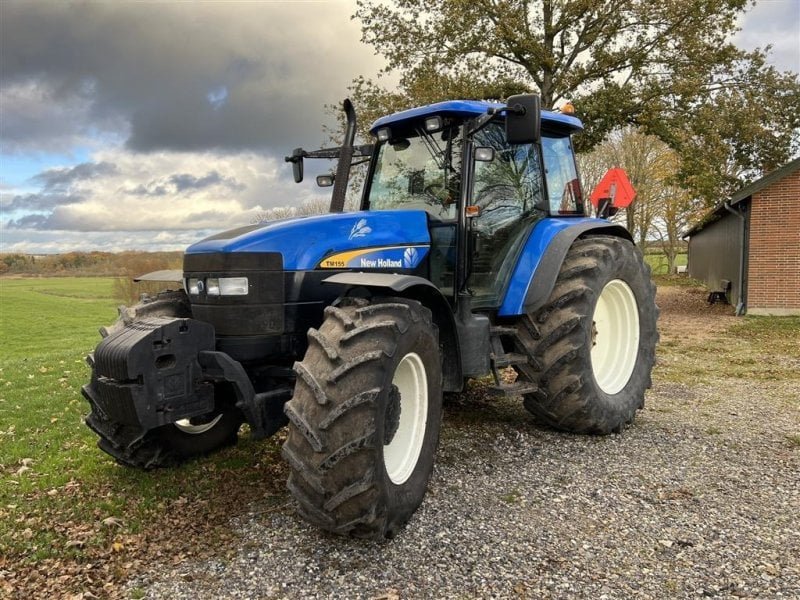

The New Holland TM155 is a tractor from the TM series, configured with all-wheel drive. As a six-cylinder diesel engine with turbocharging and intercooling, it represents the mid-range power class of this model series. The machine is designed for demanding field work, combining high tractive force with a compact design.
With a rated power of 155 hp at 2,200 rpm and a maximum torque of 627 Nm, the engine provides sufficient power for heavy implements. The empty weight of 5,449.9 kg ensures good traction, while the ground clearance of 405.1 mm allows the machine to overcome obstacles on uneven terrain. The powershift transmission with 18 forward gears enables fine adjustment of speed to the specific tillage operation. The lifting capacity of 5,180 kg allows for lifting heavy implements, supported by a hydraulic pressure of 189.6 bar and a pump flow rate of 106 l/min. The fuel tank capacity of 285 l ensures long operating times without frequent refueling.
Within the series, the TM155 is positioned as a model with high power density. It is suitable for farms requiring a combination of tractive force and hydraulic power for large working widths. The PTO power of 125 hp covers the demand for rotating implements such as mowers or manure spreaders. The available tire sizes allow the machine to be adapted to different soil conditions.
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 155 hp (114 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 627 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,472.5 cm³correct |
| Aspiration | Turbocharged, air-to-air intercooledcorrect |
| Coolant capacity | 25.4 lcorrect |
| Engine oil capacity | 19.3 lcorrect |
Dimensions and weights
| Length | 4,720 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Height | 2,975 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Ground clearance | 405.1 mmcorrect |
| Unladen weight | 5,449.9 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R or 24 V/12 Rcorrect |
|---|---|
| Gearbox type | Power Command powershift transmissioncorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Tyre size | 14.9R28/18.4R38correct |
| Top speed | 40 km/hcorrect |
Working data
| Lifting capacity | 5,180 kgcorrect |
|---|---|
| Pump flow | 106 l/mincorrect |
| Hydraulic oil capacity | 90.1 lcorrect |
| Hydraulic pressure | 189.6 barcorrect |
| Fuel tank capacity | 285 lcorrect |
Other data
| Cab height | 2,831.6 mmcorrect |
|---|---|
| Linkage category | Cat II/IIIcorrect |
| PTO output | 125 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 20.9 kW/t (114 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TM155 have?
The New Holland TM155 delivers 155 hp.
How much does the New Holland TM155 weigh?
The unladen weight is 5,450 kg.
What engine does the New Holland TM155 have?
6 cylinders, 7,472 cm³ displacement.
How fast does the New Holland TM155 go?
Top speed is 40 km/h.
What is the PTO output of the New Holland TM155?
PTO output is 125 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland TM155 lift?
The rear linkage lifts 5,180 kg.
What are the dimensions of the New Holland TM155?
4,720 mm × 2,350 mm × 2,975 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
