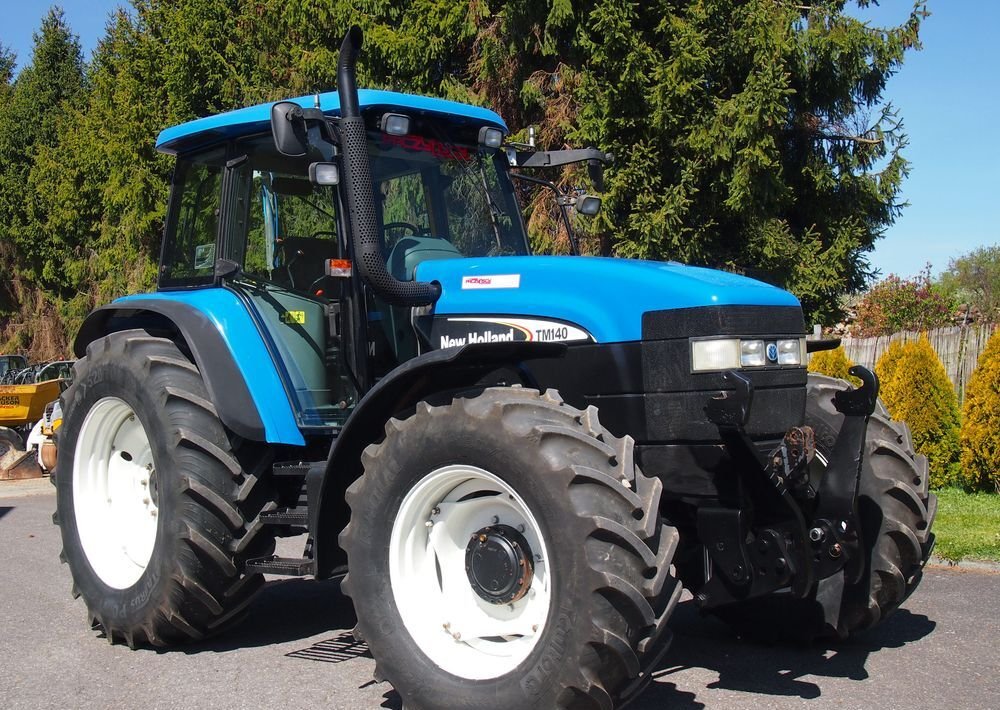

New Holland TM140 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland TM140 is a tractor from the TM series, designed in its four-wheel-drive variant for demanding agricultural applications. As a six-cylinder machine with turbocharging and charge-air cooling, it is positioned in the mid-to-upper power segment. The design featuring a cab and a ground clearance of 405.1 mm enables operation under various field conditions. The empty weight of 5,350.1 kg, combined with large tires in the size 14.9R28/18.4R38, ensures stable stability and good traction in the field.

The engine output of 144 hp at a rated speed of 2,200 rpm is supported by a maximum torque of 569 Nm, ensuring high drawbar pull for heavy implements. The powershift transmission offers a choice of 18 forward and 6 reverse gears or a variant with 24 forward and 12 reverse gears, allowing precise adjustment of speed to various working speeds. The lifting capacity of 5,180 kg on the Category II/III three-point hitch allows lifting of heavy equipment, while PTO speeds of 540/540E/1,000 rpm enable flexible use of the 115 hp PTO power for various drive tasks.

Within the TM series, the TM140 occupies a central position in the power spectrum. The available transmission variants with different gear counts offer users the option to configure the machine for a higher number of gears for finer speed gradations or for a simpler configuration for standard operation. The hydraulics, with a pump flow rate of 106 l/min and a pressure of 189.6 bar, ensure that hydraulic control units and auxiliary functions are adequately supplied even during simultaneous operation of implements.

New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF

This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.

Read on 3 more paragraphs

The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.

New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.

On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.

Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
TM140 2002-200786—Official register
Tm140 4wd 200499—Official register
TM140 —105.9—Reference work (Wikipedia/Wikibooks)
● TM140 —105.9—Reference work (Wikipedia/Wikibooks)

Technical data

Engine

Power144 hp (105.9 kW)correct
Rated speed2,200 rpmcorrect
Torque569 Nmcorrect
Cylinders6correct
Displacement7,472.5 cm³correct
AspirationTurbocharged, air-to-air intercooledcorrect
Coolant capacity25.4 lcorrect
Engine oil capacity19.3 lcorrect

Dimensions and weights

Length4,720 mmcorrect
Width2,485 mmcorrect
Height2,980 mmcorrect
Wheelbase2,723 mmcorrect
Ground clearance405.1 mmcorrect
Unladen weight5,350.1 kgcorrect

Drivetrain and chassis

Gearbox18 V/6 R or 24 V/12 Rcorrect
Gearbox typePower Command powershift transmissioncorrect
Forward gears18correct
Reverse gears6correct
Tyre size14.9R28/18.4R38correct
Top speed40 km/hcorrect

Working data

Lifting capacity5,180 kgcorrect
Pump flow106 l/mincorrect
Hydraulic oil capacity90.1 lcorrect
Hydraulic pressure189.6 barcorrect
Fuel tank capacity285 lcorrect

Other data

Cab height2,831.6 mmcorrect
Linkage categoryCat II/IIIcorrect
PTO output115 hpcorrect
PTO speed540/540E/1000 rpmcorrect
System voltage12 Vcorrect

Where this model stands

Power-to-weight ratio: 19.8 kW/t (106 kW / 5.4 t)

Power class: Large (100–180 hp)

Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland TM140 have?

The New Holland TM140 delivers 144 hp.

How much does the New Holland TM140 weigh?

The unladen weight is 5,350 kg.

What engine does the New Holland TM140 have?

6 cylinders, 7,472 cm³ displacement.

How fast does the New Holland TM140 go?

Top speed is 40 km/h.

What is the PTO output of the New Holland TM140?

PTO output is 115 hp. PTO speeds: 540/540E/1000 rpm.

How much does the rear linkage of the New Holland TM140 lift?

The rear linkage lifts 5,180 kg.

What are the dimensions of the New Holland TM140?

4,720 mm × 2,485 mm × 2,980 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
