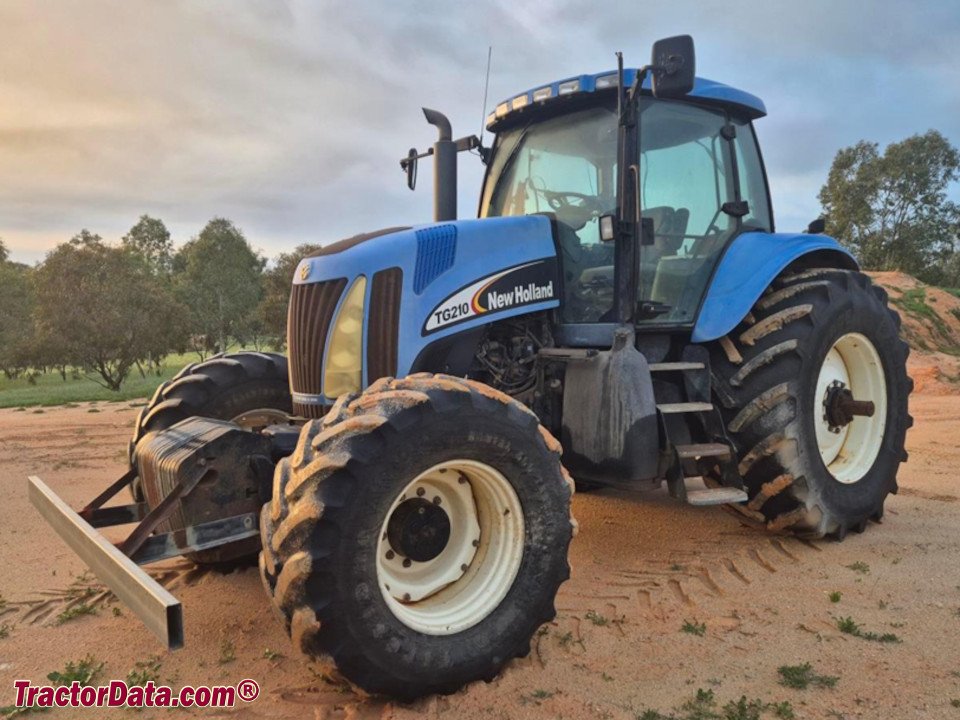

New Holland TG210 4WD – specifications

Series: Other models

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland TG210 is a heavy-duty tractor from the TG series, designed in the four-wheel-drive variant. This model targets professional users who require high tractive effort and stable handling under difficult soil conditions. The design is based on a robust chassis that securely accommodates the heavy components of the drivetrain and hydraulics. As part of the TG family, this tractor represents the manufacturer’s upper performance class for field and transport operations.

The TG210 is powered by a six-cylinder diesel engine with a displacement of 8,275.5 cm³, operating at a rated speed of 2,200 rpm. Turbocharging with intercooling ensures efficient combustion and high torque values, resulting in a PTO power output of 170 hp. This power is sufficient to pull large mounted implements such as plows or cultivators in continuous operation. The powershift transmission enables uninterrupted gear changes, increasing productivity under varying working conditions. With an empty weight of 10,659.4 kg, the tractor offers a high traction reserve, which is particularly advantageous on loose soils. The hydraulic pump delivers a flow rate of 146.1 l/min, allowing for fast and precise control of complex mounted implements. The large tank capacity of 492.1 l ensures long working intervals without frequent refueling stops.

Within the TG series, the TG210 is positioned as a high-performance model for demanding agricultural tasks. The combination of high weight and high PTO power makes it suitable for work with heavy equipment where maximum power transmission is required. The four-wheel-drive variant supports these characteristics through improved traction, which is particularly important in wet or uneven field conditions.

New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF

This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.

Read on 3 more paragraphs

The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.

New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.

On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.

Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)

Technical data

Engine

Rated speed2,200 rpmcorrect
Cylinders6correct
Displacement8,275.5 cm³correct
AspirationTurbocharged, air-to-air intercooledcorrect

Dimensions and weights

Unladen weight10,659.4 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect

Working data

Pump flow146.1 l/mincorrect
Fuel tank capacity492.1 lcorrect

Other data

PTO output170 hpcorrect

Frequently asked questions

How much does the New Holland TG210 weigh?

The unladen weight is 10,659 kg.

What engine does the New Holland TG210 have?

6 cylinders, 8,276 cm³ displacement.

What is the PTO output of the New Holland TG210?

PTO output is 170 hp.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
