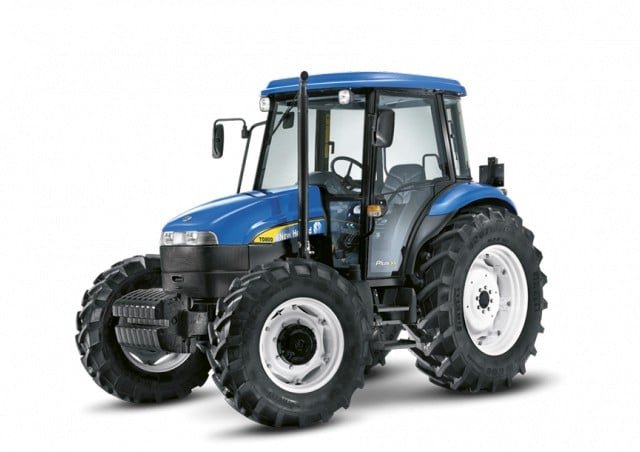

New Holland TD95D High-Clearance 4WD

Series: TD95D

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the TD95D High-Clearance 4WD, New Holland offers a model from the TD95D series. The engine delivers 91.2 hp (67.1 kW), has 4 cylinders, with a displacement of 3,900.1 cm³. Rated speed is 2,500 rpm. Lifting capacity is 2,280 kg. The tank holds 101.1 litres. The gearbox has 20 forward gears. There are also 12 reverse gears. PTO output is 80 hp. The pump delivers 82.1 l/min. Working pressure is 190 bar. The electrical system runs on 12 V. Tyre size: rear: 13,6R38. The TD95D series covers 5 models. 1448 New Holland models across 71 series are on record.

New Holland TD95D – the four-cylinder tractor from the TD range with a high-clearance version, 67 to 72 kW, 3.9-litre displacement, PTO output 80 hp

The TD95D belongs to New Holland's TD range, which the company builds for markets outside Western Europe; the range is produced among other places in Turkey, where, as in other export markets, it covers the mid power class. Alongside the standard version, the register lists the High-Clearance version with a raised chassis, designed for work in row crops requiring high ground clearance. Both versions share the engine, transmission and cab and differ essentially in the chassis ground clearance.

Read on 3 more paragraphs

The register lists here 5 versions with 67.1 to 72.1 kW from four-cylinders of 3,900.1 to 3,908 cm³, a lift capacity of 2,280 kg, torque from 280 to 469.1 Nm at a rated speed of 2,500 rpm and a PTO output of 80 hp.

The TD95D covers the mid power class of general arable farming in its export markets, while the High-Clearance version is designed specifically for row crops such as cotton and vegetables, where clearance over the plant rows is decisive. In these markets the TD range competes with locally built tractors and with the export models of other international makers.

On used examples, engine and injection-pump condition count, condition of clutch and gearbox, hydraulics and PTO, and on the High-Clearance version additionally the condition of the raised axle gearboxes; spare parts run through the New Holland network.

Sources: SpecCodex register, model data: New Holland TD95D, New Holland Agriculture (manufacturer)

Technical data

Engine

Power	91.2 hp (67.1 kW)correct
Rated speed	2,500 rpmcorrect
Cylinders	4correct
Displacement	3,900.1 cm³correct
Aspiration	turbochargedcorrect

Drivetrain and chassis

Gearbox type	20FX12R creeper with synchromesh gearbox mechanical gearboxcorrect
Forward gears	20correct
Reverse gears	12correct
Tyre size	rear: 13.6R38correct

Working data

Lifting capacity	2,280 kgcorrect
Pump flow	82.1 l/mincorrect
Hydraulic pressure	190 barcorrect
Fuel tank capacity	101.1 lcorrect

Other data

PTO output	80 hpcorrect
System voltage	12 Vcorrect

Frequently asked questions

How much power does the New Holland TD95D High-Clearance have?

The New Holland TD95D High-Clearance delivers 91.2 hp.

What engine does the New Holland TD95D High-Clearance have?

4 cylinders, 3,900 cm³ displacement.

What is the PTO output of the New Holland TD95D High-Clearance?

PTO output is 80 hp.

How much does the rear linkage of the New Holland TD95D High-Clearance lift?

The rear linkage lifts 2,280 kg.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
