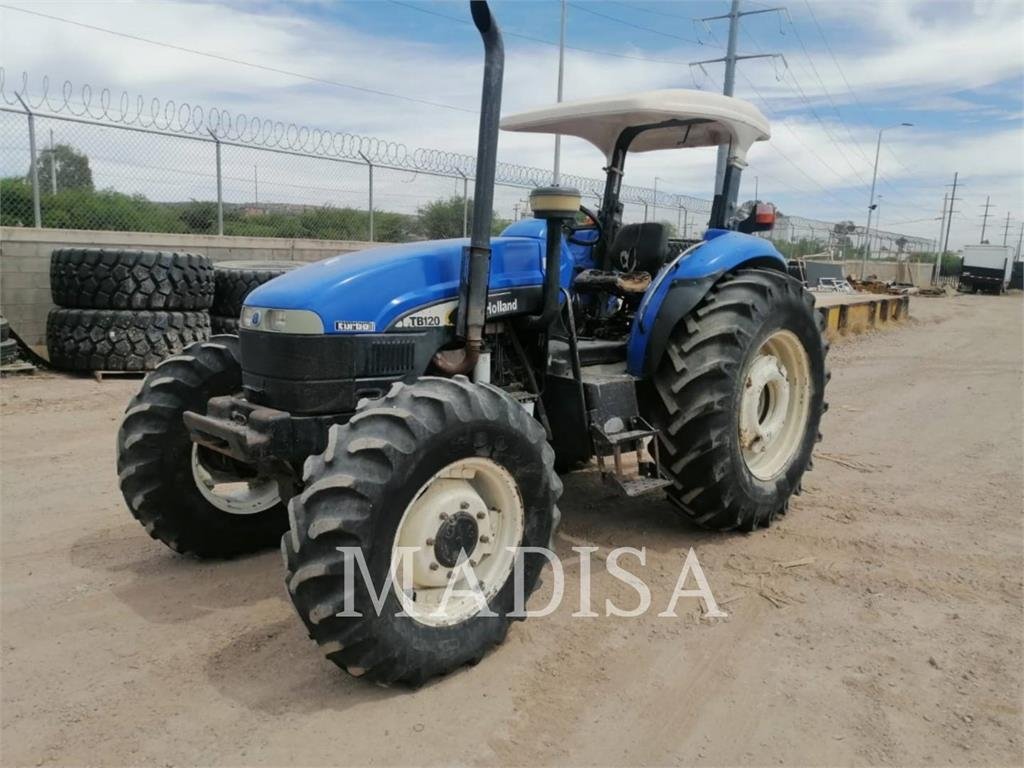

New Holland TB120 All-Purpose 4WD
Series: TB120
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland TB120 – North American TB utility range in All-Purpose, High Clearance and Low Profile versions, 85.8 kW, 96 hp PTO output, 7,500 cm³ displacement
New Holland positions the TB series as utility tractors mainly for the North American market; within it, the TB120 represents the 120 hp class and comes in several body variants – All-Purpose as the standard version, High Clearance with raised ground clearance for tall crops, and Low Profile with a lowered silhouette for orchards and vineyards.
Read on 3 more paragraphs
The register lists 6 versions with 85.8 kW engine output and 96 hp PTO output from four- to six-cylinder engines of 7,500 cm³ displacement, a lift capacity of 1,633 kg and torque of 485.4 Nm at 2,100 rpm; length varies by body variant from 3,700 to 4,430 mm.
Within the TB series, the TB120 covers the upper power class and is aimed at operations with mixed arable, orchard or vineyard work, choosing between standard, high-clearance and low-profile builds depending on the crop; the range competes in North America with comparable utility tractors from other makers such as John Deere and Case IH.
On a used example, check the PTO and lift linkage, the front axle on four-wheel-drive variants, and the seals and radiator of the larger six-cylinder engines; on High Clearance and Low Profile versions, look at special tyres and fenders, and inspect the cab mounts and wiring harness for wear, with parts available through the New Holland dealer network.
Sources: SpecCodex register, model data: New Holland TB120, New Holland (CNH Industrial, Hersteller)
Technical data
Engine
| Power | 116.6 hp (85.8 kW)correct |
|---|---|
| Cylinders | 6correct |
| Displacement | 7,500.4 cm³correct |
| Aspiration | naturally aspiratedcorrect |
| Coolant capacity | 16.3 lcorrect |
| Engine oil capacity | 19.7 lcorrect |
Dimensions and weights
| Length | 4,090 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | 8x2 constant-mesh gearboxcorrect |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Tyre size | 18.4x30 R1correct |
Working data
| Lifting capacity | 1,633 kgcorrect |
|---|---|
| Pump flow | 70 l/mincorrect |
| Hydraulic pressure | 179.3 barcorrect |
| Fuel tank capacity | 140.1 lcorrect |
Other data
| Cab height | 2,532.9 mmcorrect |
|---|---|
| PTO output | 96 hpcorrect |
| System voltage | 12 Vcorrect |
Frequently asked questions
How much power does the New Holland TB120 All-Purpose have?
The New Holland TB120 All-Purpose delivers 117 hp.
What engine does the New Holland TB120 All-Purpose have?
6 cylinders, 7,500 cm³ displacement.
What is the PTO output of the New Holland TB120 All-Purpose?
PTO output is 96 hp.
How much does the rear linkage of the New Holland TB120 All-Purpose lift?
The rear linkage lifts 1,633 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
