Start › Tractors › New Holland › TB110 All-Purpose

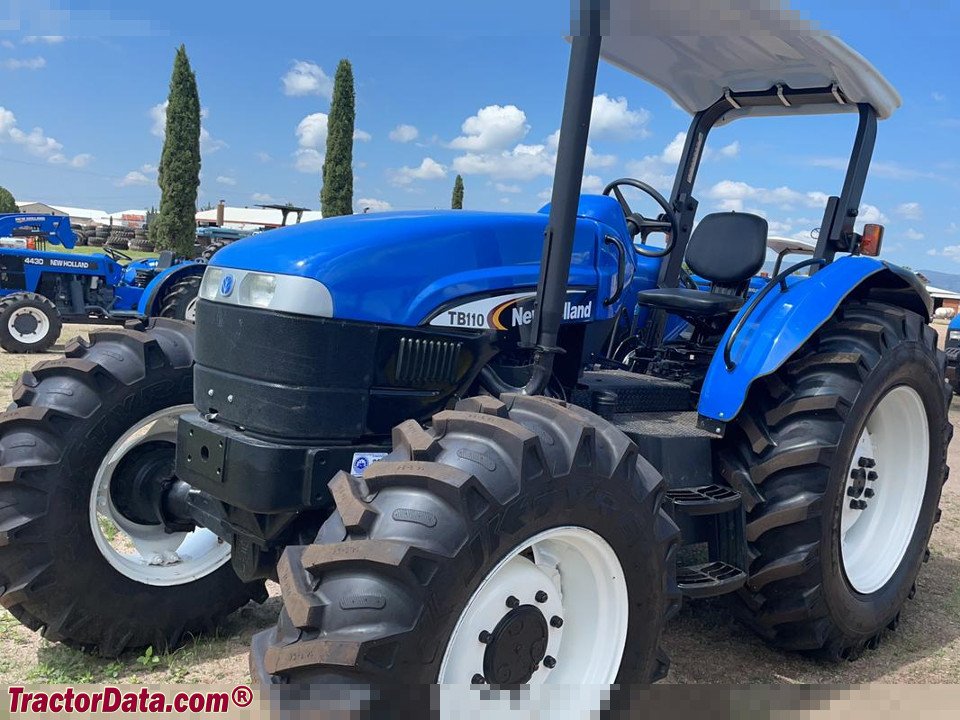

New Holland TB110 All-Purpose 4WD

Series: Other models

Source: https://www.tractordata.com/farm-tractors/003/1/5/3150-new-h

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TB110 All-Purpose 4WD comes from New Holland. The engine delivers 109.5 hp (80.5 kW), has 4 cylinders, with a displacement of 5,001.3 cm³. The machine is 3,860 mm long. Lifting capacity is 1,633 kg. The tank holds 140.1 litres. The gearbox has 8 forward gears. There are also 2 reverse gears. PTO output is 90 hp. The pump delivers 70 l/min. Working pressure is 179.3 bar. The cooling system holds 13.2 litres. The oil fill is 11.4 litres. The electrical system runs on 12 V. Tyre size: 18,4x30 R1. Rated output across the New Holland range ranges from 12.1 to 621.5 hp; the TB110 All-Purpose sits in the lower part of that range with 109.5 hp. Its immediate neighbours are the T5.105 below it with 107 hp and the B110 above it with 111.5 hp. Rated output across the New Holland range ranges from 8.9 to 404.2 kW; here the TB110 All-Purpose sits in the lower part of that range with 80.5 kW. 1448 New Holland models across 71 series are on record.

New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF

This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.

Read on 3 more paragraphs

The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.

New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.

On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.

Sources: SpecCodex register, model data: New Holland (weitere Modelle), New Holland Agriculture (manufacturer)

Technical data

Engine

Power109.5 hp (80.5 kW)correct
Cylinders4correct
Displacement5,001.3 cm³correct
Aspirationturbochargedcorrect
Coolant capacity13.2 lcorrect
Engine oil capacity11.4 lcorrect

Dimensions and weights

Length3,860 mmcorrect

Drivetrain and chassis

Gearbox type8x2 constant-mesh gearboxcorrect
Forward gears8correct
Reverse gears2correct
Tyre size18.4x30 R1correct

Working data

Lifting capacity1,633 kgcorrect
Pump flow70 l/mincorrect
Hydraulic pressure179.3 barcorrect
Fuel tank capacity140.1 lcorrect

Other data

Cab height2,532.9 mmcorrect
PTO output90 hpcorrect
System voltage12 Vcorrect

Frequently asked questions

How much power does the New Holland TB110 All-Purpose have?

The New Holland TB110 All-Purpose delivers 110 hp.

What engine does the New Holland TB110 All-Purpose have?

4 cylinders, 5,001 cm³ displacement.

What is the PTO output of the New Holland TB110 All-Purpose?

PTO output is 90 hp.

How much does the rear linkage of the New Holland TB110 All-Purpose lift?

The rear linkage lifts 1,633 kg.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
