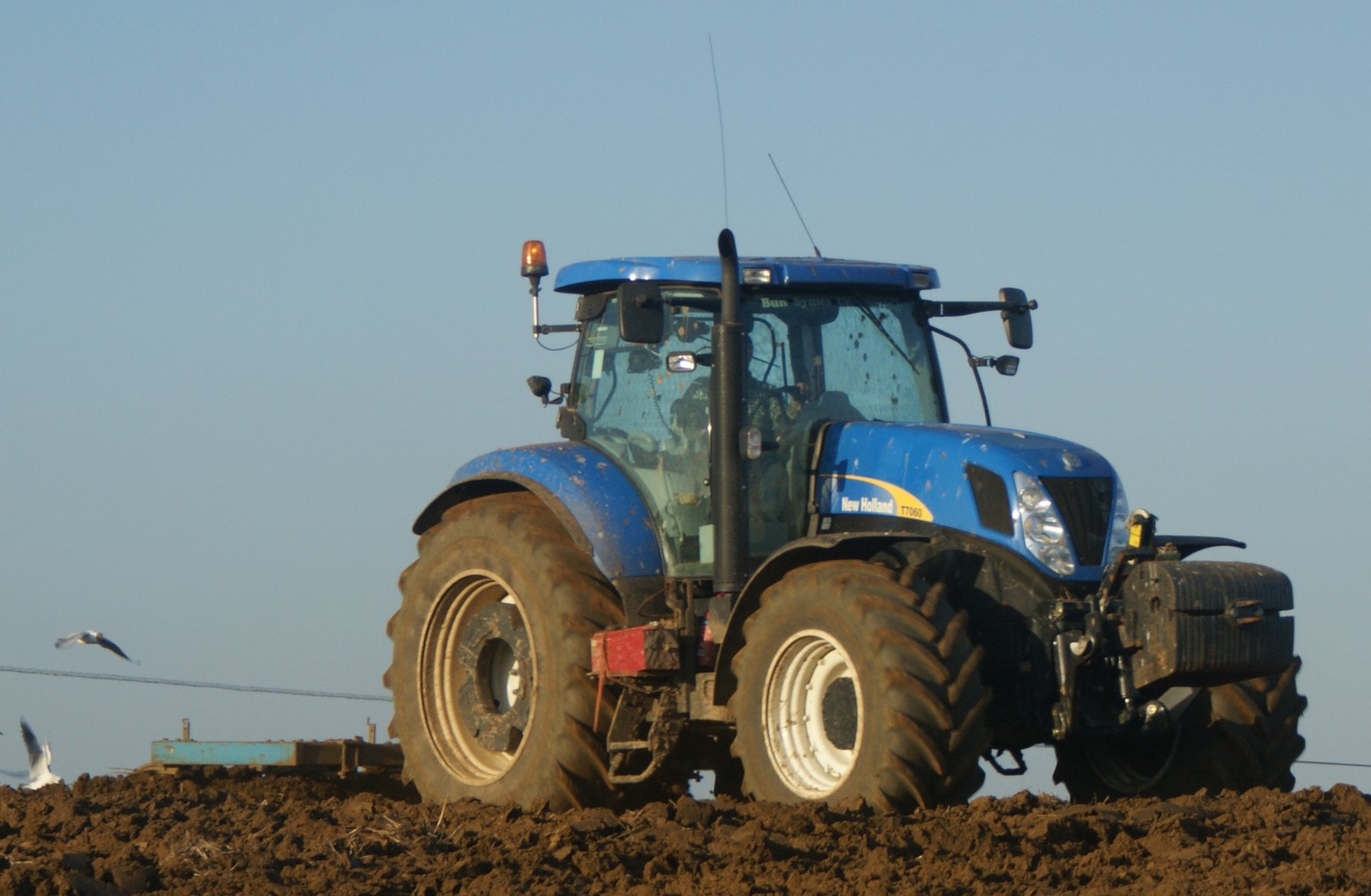

New Holland T7060
Built: Year not documented · Series: T7000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T7000 – large range with its own engine: T7060 and T7070, six-cylinder of 6,728 cm³, 157 to 167 kW (210 to 225 hp), unladen weight 7,200 to 9,250 kg, gross weight 13,000 kg
The T7000 range formed New Holland's large class with a four-digit model designation, in which the last two digits give the power step within the range, here T7060 and T7070. Both models are fitted with New Holland's own-brand six-cylinder diesel engine of 6,728 cm³ rather than a bought-in unit from a third party.
Read on 3 more paragraphs
The register lists 2 versions with 157 to 167 kW (210 to 225 hp) from six-cylinder engines of 6,728 cm³, unladen weights of 7,200 to 9,250 kg and a gross weight of 13,000 kg; lift capacity is 7,200 kg, length is 4,820 mm, width is 2,330 mm and height is 3,050 mm, at rated speeds of 1,450 to 2,200 rpm and a PTO output of 180 hp.
With high engine power and corresponding pulling capacity, the T7000 targeted large arable farms and contractors who had to move heavy tillage equipment, wide seed drills and large trailers in continuous use, placing it in the upper power segment of its time.
When buying used, check operating hours and the condition of the six-cylinder's injection system, wear on clutch, gearbox and PTO, the tightness of hydraulics and lift, the condition of axles and tyres at this weight class, and the cab suspension; parts run through New Holland's wide dealer network.
Sources: SpecCodex register, model data: New Holland T7000, New Holland (CNH, Hersteller)
Technical data
Engine
| Engine make | New Hollandcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 214 hp (157 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
| Aspiration | Turbocharged/intercooledcorrect |
| Cooling | water-cooledcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 4,820 mmcorrect |
|---|---|
| Width | 2,330 mmcorrect |
| Height | 3,050 mmcorrect |
| Unladen weight | 7,200 kgcorrect |
| Gross vehicle weight | 13,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18/6- oder 19/6-Getriebecorrect |
| Gearbox type | 18x6 Power command full powershift transmissioncorrect |
| Forward gears | 19correct |
| Reverse gears | 6correct |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Tyre size | 18.4R42correct |
| Top speed | 50 km/hcorrect |
Working data
| Lifting capacity | 7,200 kgcorrect |
|---|---|
| Pump flow | 214.3 l/mincorrect |
| Hydraulic oil capacity | 100.3 lcorrect |
| Fuel tank capacity | 439.1 lcorrect |
Origin and approval
| Plant | Englandcorrect |
|---|
Other data
| Cab height | 3,041.9 mmcorrect |
|---|---|
| PTO output | 180 hpcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 21.8 kW/t (157 kW / 7.2 t)
Power class: Heavy (> 180 hp)
Stronger than 92% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T7060 have?
The New Holland T7060 delivers 214 hp.
How much does the New Holland T7060 weigh?
The unladen weight is 7,200 kg.
What is the gross vehicle weight of the New Holland T7060?
13,000 kg.
What engine does the New Holland T7060 have?
6 cylinders, 6,728 cm³ displacement, Diesel.
How fast does the New Holland T7060 go?
Top speed is 50 km/h.
What is the PTO output of the New Holland T7060?
PTO output is 180 hp.
How much does the rear linkage of the New Holland T7060 lift?
The rear linkage lifts 7,200 kg.
What are the dimensions of the New Holland T7060?
4,820 mm × 2,330 mm × 3,050 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
