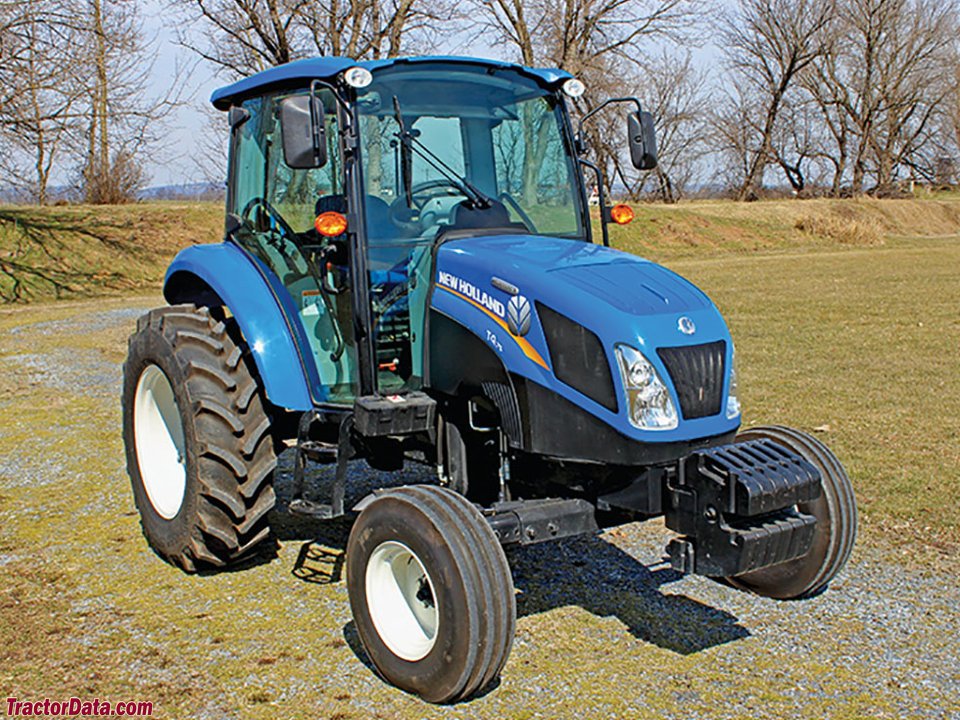

New Holland T4.75
Built: 2011 · Series: T4
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland T4 – compact all-purpose class: T4.75 and T4.75 Powerstar, four-cylinder of 3,200 to 3,400 cm³, 55 to 63 kW (75 to 86 hp), unladen weight 2,800 to 2,830 kg, lift capacity 2,715 kg
The T4 range forms New Holland’s compact entry class within the unified T-naming scheme in place since the mid-2000s, in which the first digit gives the frame size and the number after the dot the approximate power class. The Powerstar suffix denotes a more powerful or differently tuned version of the T4.75 at the same displacement.
Read on 3 more paragraphs
The register lists 2 versions with 55 to 63 kW (75 to 86 hp) from four-cylinder engines of 3,200 to 3,400 cm³, unladen weights of 2,800 to 2,830 kg and a gross weight of 4,800 kg; lift capacity is 2,715 kg, length is 3,792 to 3,884 mm, width is 1,950 to 2,008 mm and height is 2,380 to 2,479 mm, at a rated speed of 2,300 rpm.
As a compact all-rounder the T4 targets smaller arable and livestock farms, orchard and special crops, and municipal users who need a manoeuvrable tractor for front-loader work, mulching and transport in confined space, competing there with similarly compact ranges from other makers.
When buying used, check operating hours and the condition of clutch and gearbox, the tightness of hydraulics and lift, the condition of the front-loader mount where fitted, PTO operation, and rust on the cab and bonnet; parts run through New Holland's wide dealer network.
Sources: SpecCodex register, model data: New Holland T4, New Holland (CNH, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 86 hp (63 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,200 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,792 mmcorrect |
|---|---|
| Width | 1,950 mmcorrect |
| Height | 2,380 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 2,800 kgcorrect |
| Gross vehicle weight | 4,800 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12/12 Powershuttlecorrect |
| Top speed | 40 km/hcorrect |
Working data
| Lifting capacity | 2,715 kgcorrect |
|---|
Where this model stands
Power-to-weight ratio: 22.5 kW/t (63 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T4.75 have?
The New Holland T4.75 delivers 86 hp.
How much does the New Holland T4.75 weigh?
The unladen weight is 2,800 kg.
What is the gross vehicle weight of the New Holland T4.75?
4,800 kg.
What engine does the New Holland T4.75 have?
4 cylinders, 3,200 cm³ displacement, Diesel.
How fast does the New Holland T4.75 go?
Top speed is 40 km/h.
How much does the rear linkage of the New Holland T4.75 lift?
The rear linkage lifts 2,715 kg.
What are the dimensions of the New Holland T4.75?
3,792 mm × 1,950 mm × 2,380 mm.
When was the New Holland T4.75 built?
Production years: 2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
