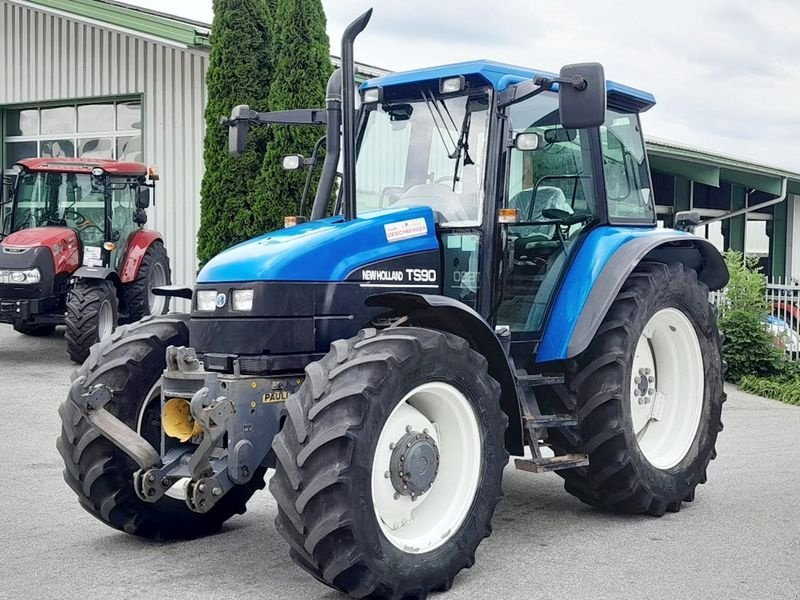

New Holland TS 90
Built: 2000-2001 · Series: TS
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland TS and TSA – the Basildon mid-range 1997–2007: TS 90 to TS 115 with Ford engines, TS 100A to TS 135A with NEF six-cylinders, the forerunners of the T6000, 61 to 119 kW
The TS range was New Holland's mid-range from the Basildon plant in Essex – the old Ford tractor works that has built the blue tractors since the 1991 merger. Two generations appear in the register: the TS 90, TS 100 and TS 115 of 1997 to 2003 continued the Ford 40 line, with four-cylinders of the Ford New Holland engine family and plain equipment that made them the standard tractor for grassland and arable farming. The TSA generation of 2003 to 2007 – TS 100A, TS 110A, TS 115A, TS 125A and TS 135A – brought the NEF six-cylinders from the group's tie-up with Iveco, the Horizon cab and powershift steps; it was the direct forerunner of the T6000 range. The number roughly gives the output in hp, A the second generation, 4WD four-wheel drive; the long registration codes in the register come from vehicle registers.
Read on 3 more paragraphs
The register lists 14 versions with 61.4 to 119 kW from four- and six-cylinders of 4,485 to 7,490 cm³, unladen weights from 4,660 to 6,800 kg, gross weights from 7,500 to 8,700 kg and widths from 2,200 to 2,600 mm.
The TSAs are regarded as one of New Holland's most robust generations: NEF engine without aftertreatment, mechanical injection on the entry model, cab with all-round view – reasons for their popularity on the used market to this day.
On used tractors, operating hours, the condition of engine and powershift (clutch packs), hydraulics and front axle, the electronics of the linkage control and, on the early TS, the cab mounts are what count.
Sources: SpecCodex register, model data: New Holland TS (Zulassungsdaten), New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 80 hp (61.4 kW)correct |
|---|---|
| Rated speed | 2,170 rpmcorrect |
| Torque | 325 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,983.5 cm³correct |
Dimensions and weights
| Length | 4,080 mmcorrect |
|---|---|
| Width | 2,265 mmcorrect |
| Height | 2,726 mmcorrect |
| Unladen weight | 4,805 kgcorrect |
| Gross vehicle weight | 7,500 kgcorrect |
Drivetrain and chassis
| Gearbox | 12 V/12 R, 16 V/16 R and 24 V/24 Rcorrect |
|---|---|
| Gears | 16correct |
Working data
| Fuel tank capacity | 160 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 12.8 kW/t (61 kW / 4.8 t)
Power class: Universal (40–100 hp)
Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TS 90 have?
The New Holland TS 90 delivers 80 hp.
How much does the New Holland TS 90 weigh?
The unladen weight is 4,805 kg.
What is the gross vehicle weight of the New Holland TS 90?
7,500 kg.
What engine does the New Holland TS 90 have?
4 cylinders, 4,984 cm³ displacement.
What are the dimensions of the New Holland TS 90?
4,080 mm × 2,265 mm × 2,726 mm.
When was the New Holland TS 90 built?
Production years: 2000-2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
