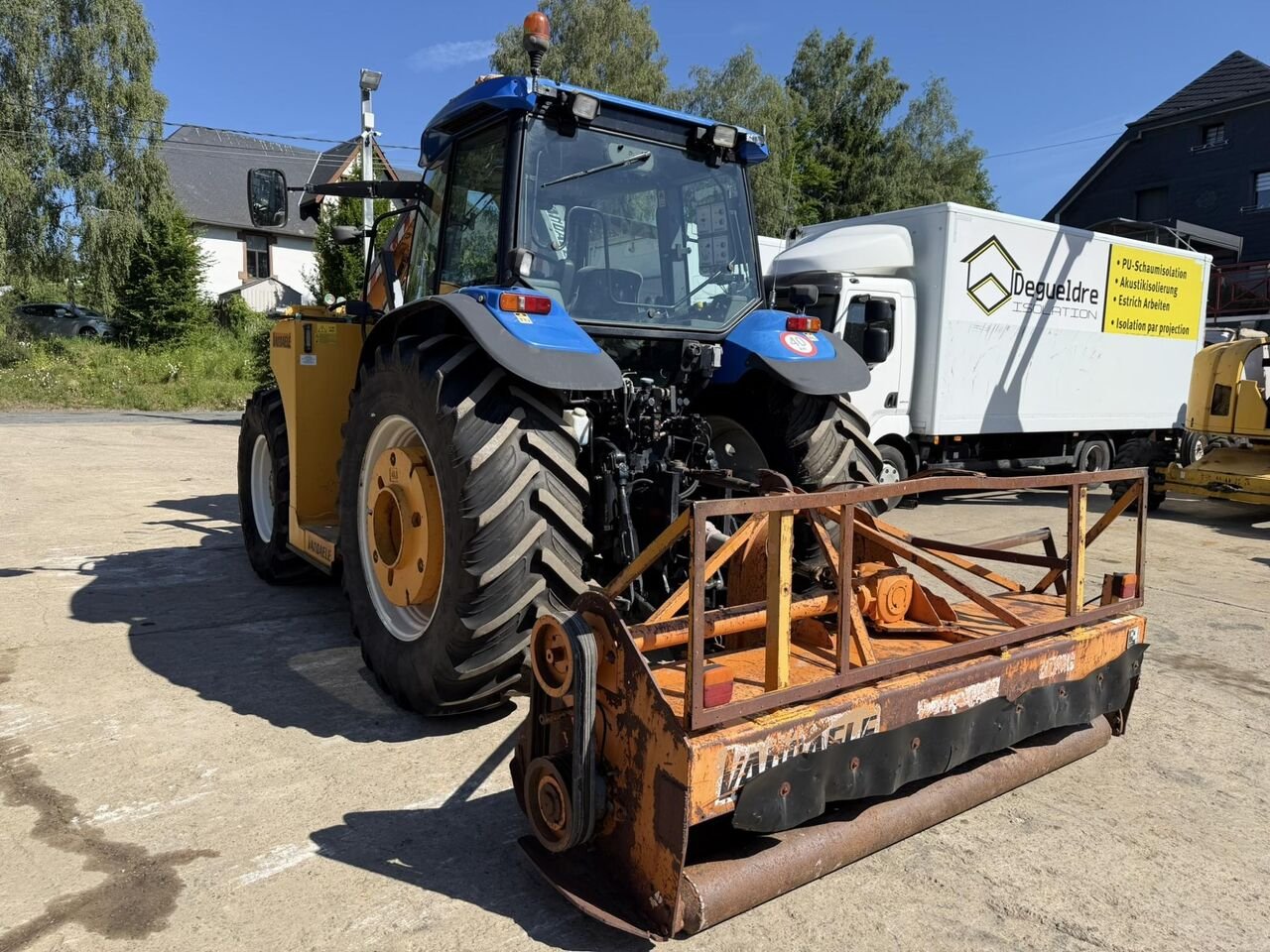

New Holland TM 130
Series: TM
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland TM (1999–2007) – the six-cylinder from Basildon between TS and TG: TM115 to TM190, the number as hp class, RC for Range Command, SS for SuperSteer, 7.5 litre engine of the Genesis line, 85 to 168 kW
The TM range was New Holland's upper mid-range tractor in the first blue years: introduced in 1999 as successor to the 8x60 range, built in Basildon, England, and replaced by the T7000 range in 2007. The type logic: TM marks the range, the number the hp class – TM115 about 115 hp, TM150 150 hp, TM190 190 hp – RC stands for the Range Command semi-powershift, SS for the SuperSteer front axle with increased steering angle, 4WD for four-wheel drive. In 2002 the range was revised and re-graded from TM120 to TM190, with power boost for PTO and transport work, which explains the register span up to 168 kW. The engine in all versions is the six-cylinder of 7.5 litres from the Genesis line Ford New Holland had developed in the 1990s for the 70 series – the register values of 7,478 to 7,500 cm³ show the one engine family.
Read on 3 more paragraphs
The register lists 18 versions with 84.6 to 168 kW from the six-cylinder at 2,200 rpm, torque from 472 to 627 Nm, unladen weights from 5,250 to 8,900 kg, gross weights from 8,500 to 12,000 kg, lengths from 4,675 to 5,789 mm, widths from 2,150 to 2,550 mm and heights from 2,926 to 2,980 mm.
In Western Europe the TM was the tractor of contractors and large arable farms – six-cylinder smoothness, powershift and a cab regarded as one of the quietest of its time; the TM range sold in large numbers in Britain, France and Germany.
On used tractors, operating hours, the condition of engine and injection pump, Range Command clutches and electronics, SuperSteer axle (play and leaks), hydraulics and cab count; parts run through CNH.
Sources: SpecCodex register, model data: New Holland TM, New Holland Agriculture (manufacturer)
Technical data
Engine
| Power | 131 hp (96.4 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 472 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,478 cm³correct |
Dimensions and weights
| Length | 5,789 mmcorrect |
|---|---|
| Width | 2,420 mmcorrect |
| Height | 2,926 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Unladen weight | 5,480 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R or 24 V/12 Rcorrect |
|---|---|
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 285 lcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.6 kW/t (96 kW / 5.5 t)
Power class: Large (100–180 hp)
Stronger than 78% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland TM 130 have?
The New Holland TM 130 delivers 131 hp.
How much does the New Holland TM 130 weigh?
The unladen weight is 5,480 kg.
What engine does the New Holland TM 130 have?
6 cylinders, 7,478 cm³ displacement.
How fast does the New Holland TM 130 go?
Top speed is 40 km/h.
What are the dimensions of the New Holland TM 130?
5,789 mm × 2,420 mm × 2,926 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
