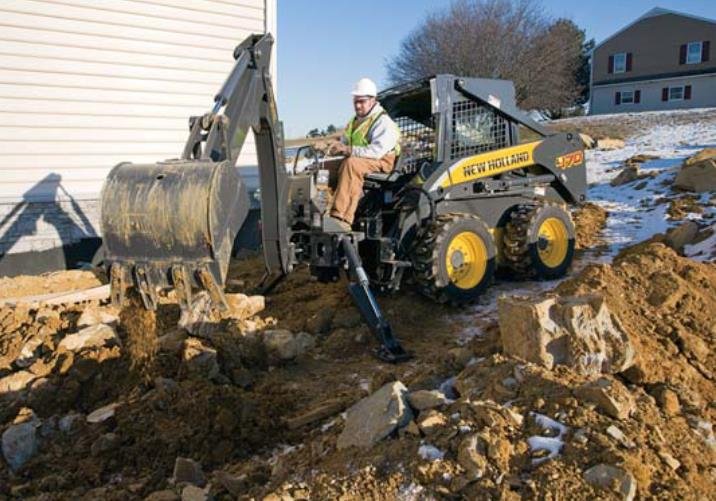

New Holland LS170

Series: New Holland Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland Skid Steer Loader series from New Holland includes the LS170. The engine delivers 52.7 hp (37.3 kW), has 4 cylinders, with a displacement of 1,995.9 cm³. Rated speed is 2,900 rpm. The wheelbase measures 1,082 mm. Ground clearance is 200.2 mm. Top speed is 12.2 km/h. The tank holds 54.5 litres. The pump delivers 92.7 l/min. The hydraulic tank holds 32.9 litres. Working pressure is 179.3 bar. The cooling system holds 10.2 litres. The electrical system runs on 12 V. The engine fitted is the N844T. Tyre size: 10x16,5. The New Holland Skid Steer Loader series covers 18 models. Rated output within it ranges from 16.7 to 82.1 hp; the LS170 sits in the middle of that range with 52.7 hp. Its immediate neighbours are the LS160 below it with 46.6 hp and the L175 above it with 61.2 hp. 502 New Holland models across 32 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelN844Tcorrect
Power52.7 hp (37.3 kW)correct
Rated speed2,900 rpmcorrect
Cylinders4correct
Displacement1,995.9 cm³correct
Aspirationturbochargedcorrect
Coolant capacity10.2 lcorrect

Dimensions and weights

Wheelbase1,082correct
Ground clearance200.2correct

Drivetrain and chassis

Tyre size10x16.5correct
Top speed12.2 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow92.7 l/mincorrect
Hydraulic oil capacity32.9 lcorrect
Hydraulic pressure179.3correct
Fuel tank capacity54.5 lcorrect

Other data

Height1,902correct

Frequently asked questions

How much power does the New Holland LS170 have?

The New Holland LS170 delivers 52.7 hp.

What engine does the New Holland LS170 have?

4 cylinders, 1,996 cm³ displacement.

How fast does the New Holland LS170 go?

Top speed is 12.2 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
