New Holland LS120

Series: New Holland Skid Steer Loader

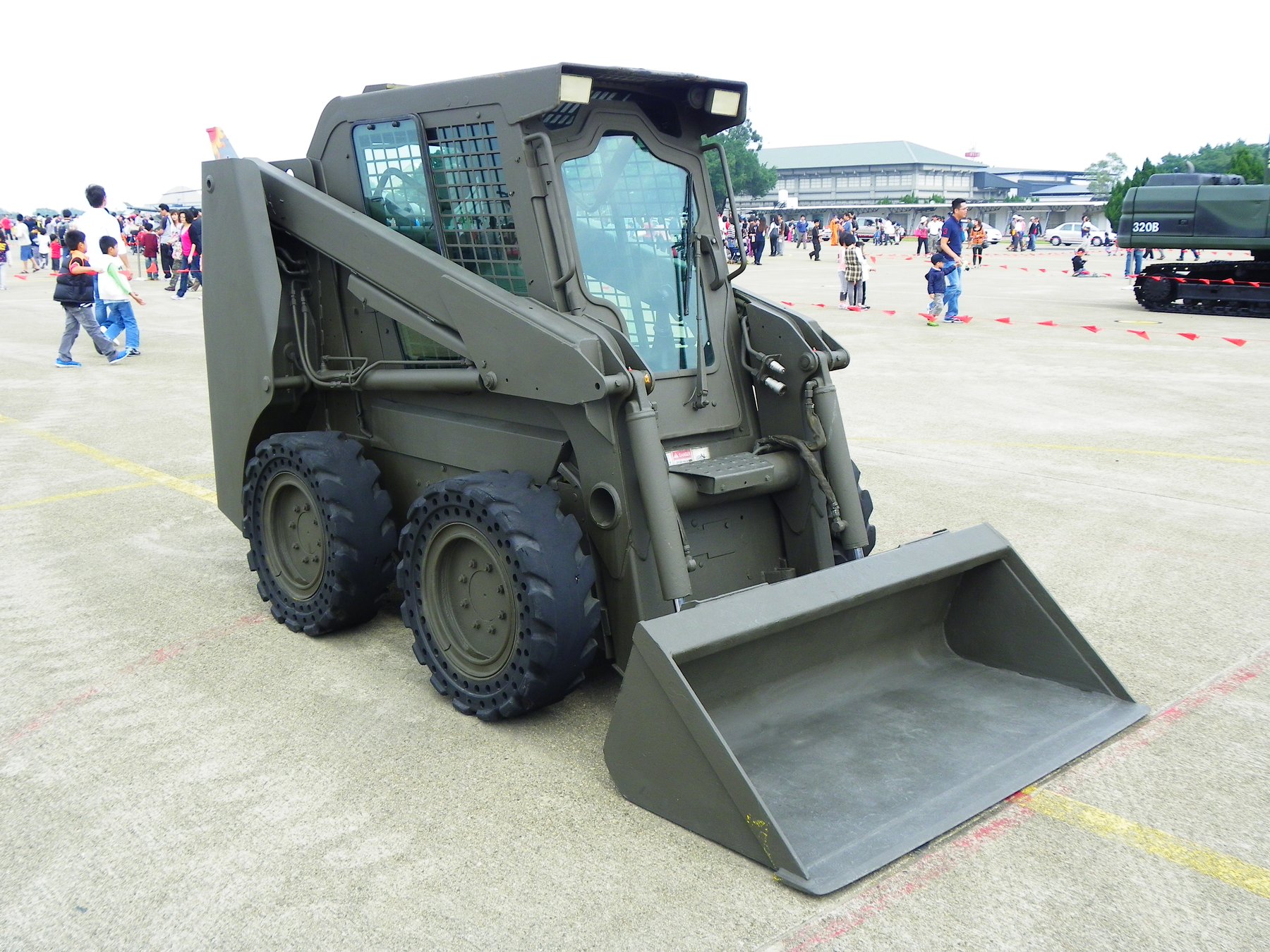

The photo shows the L170 from the same series. Source: https://commons.wikimedia.org/w/index.php?curid=17345600 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland Skid Steer Loader series from New Holland includes the LS120. The engine delivers 18.2 hp (13.4 kW), with a displacement of 624.3 cm³. The wheelbase measures 810.8 mm. Ground clearance is 170.2 mm. Top speed is 9.3 km/h. The tank holds 22.7 litres. The pump delivers 30.3 l/min. The hydraulic tank holds 34.4 litres. Working pressure is 110.3 bar. The electrical system runs on 12 V. The engine fitted is the CH18. Tyre size: 12x16,5. The New Holland Skid Steer Loader series covers 18 models. Rated output within it ranges from 16.7 to 82.1 hp; the LS120 sits at the bottom of that range with 18.2 hp. Its immediate neighbours are the LS125 below it with 16.7 hp and the L150 above it with 38.5 hp. 502 New Holland models across 32 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCH18correct
Power18.2 hp (13.4 kW)correct
Displacement624.3 cm³correct

Dimensions and weights

Wheelbase810.8correct
Ground clearance170.2correct

Drivetrain and chassis

Tyre size12x16.5correct
Top speed9.3 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow30.3 l/mincorrect
Hydraulic oil capacity34.4 lcorrect
Hydraulic pressure110.3correct
Fuel tank capacity22.7 lcorrect

Other data

Height1,761.7correct

Frequently asked questions

How much power does the New Holland LS120 have?

The New Holland LS120 delivers 18.2 hp.

What engine does the New Holland LS120 have?

624 cm³ displacement.

How fast does the New Holland LS120 go?

Top speed is 9.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
