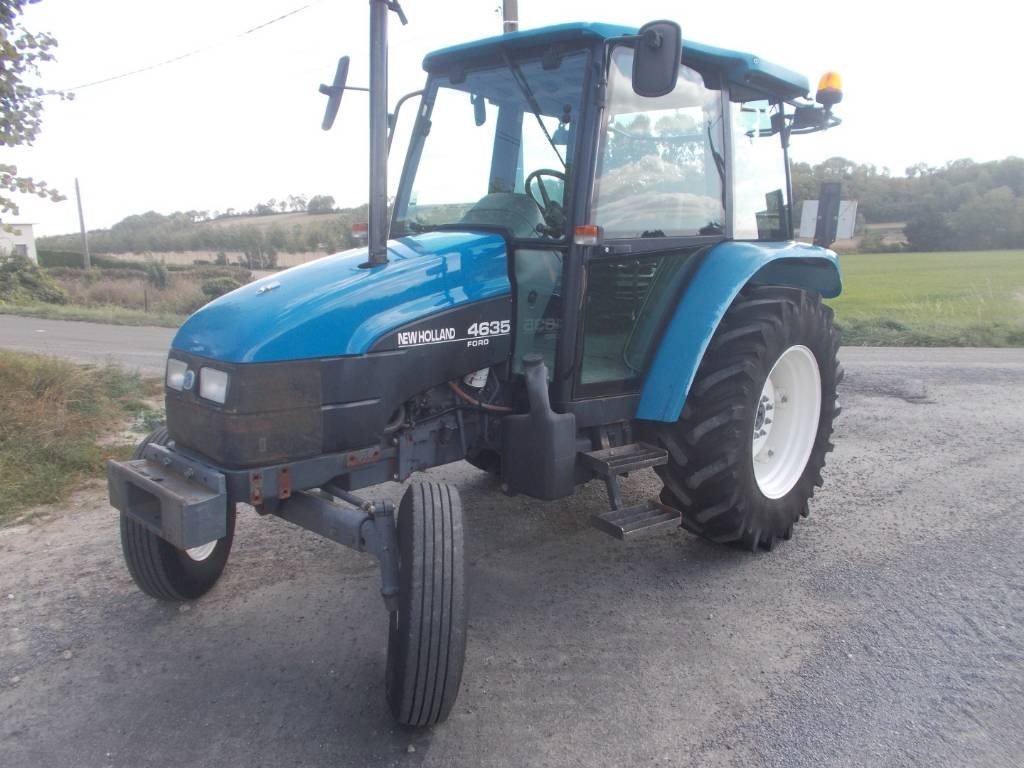

New Holland Geotech 4635 (A)
Built: 1996–1998 · Series: 35 er-Baureihe
More machines from model year 1996
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
New Holland Geotech 35 series: nine versions from 3235 to 7635, 28.7 to 69.9 kW from three- and four-cylinder diesels, built by Türk Traktör in Ankara for Eastern and South-Eastern Europe
Geotech is the designation under which New Holland offers a range of compact to mid-size tractors built by Türk Traktör in Ankara, Turkey, for Eastern European, Balkan and other export markets. The nine types 3235 to 7635 of the 35 series all carry the closing digits 35 as a shared series mark, while the leading digits order the size and power step – from the small 3235 to the strongest 7635; the (A) suffix on the mid-range and large types (3435 A to 7635 A) marks a distinct equipment level within the series. All nine versions run three-cylinder diesels in the small and four-cylinder diesels in the large models.
Read on 3 more paragraphs
The register lists here 9 versions with 28.7 to 69.9 kW from three- to four-cylinders of 2,710 to 3,908 cm³, torque from 134 to 294 Nm at 2,500 rpm, unladen weights from 1,720 to 4,270 kg, lengths from 3,240 to 4,000 mm, widths from 1,540 to 2,120 mm and heights from 2,270 to 2,550 mm.
The Geotech range occupies New Holland's value-conscious entry segment outside Western Europe, competing there with other budget imports and regional brands such as Ursus, Zetor and Belarus; it complements the Western European New Holland T4 to T6 ranges without sharing their naming.
On used tractors, operating hours and injection-pump condition, clutch and hydraulic lift, front-axle tightness on the four-wheel-drive versions, and rust on panels and mudguards, which run thinner on value ranges than on the big New Holland series, count; parts run through the New Holland and CNH network.
Sources: SpecCodex register, model data: New Holland Geotech 35, New Holland Agriculture (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44.2 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 187 Nmcorrect |
| Speed at max. torque | 1,493 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,931 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,910 mmcorrect |
|---|---|
| Width | 2,120 mmcorrect |
| Height | 2,500 mmcorrect |
| Wheelbase | 2,342 mmcorrect |
| Ground clearance | 480 mmcorrect |
| Unladen weight | 3,940 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4R, 12V/12R, 20V/12R and 24V/12Rcorrect |
| Front tyres | 7.50-16 ASF (A: 320/70 R 24 AS)correct |
| Rear tyres | 480/70 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 11.2 kW/t (44 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 42% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland Geotech 4635 (A) have?
The New Holland Geotech 4635 (A) delivers 60 hp.
How much does the New Holland Geotech 4635 (A) weigh?
The unladen weight is 3,940 kg.
What engine does the New Holland Geotech 4635 (A) have?
3 cylinders, 2,931 cm³ displacement, Diesel.
How fast does the New Holland Geotech 4635 (A) go?
Top speed is 30 km/h.
What are the dimensions of the New Holland Geotech 4635 (A)?
3,910 mm × 2,120 mm × 2,500 mm.
When was the New Holland Geotech 4635 (A) built?
Production years: 1996–1998.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
