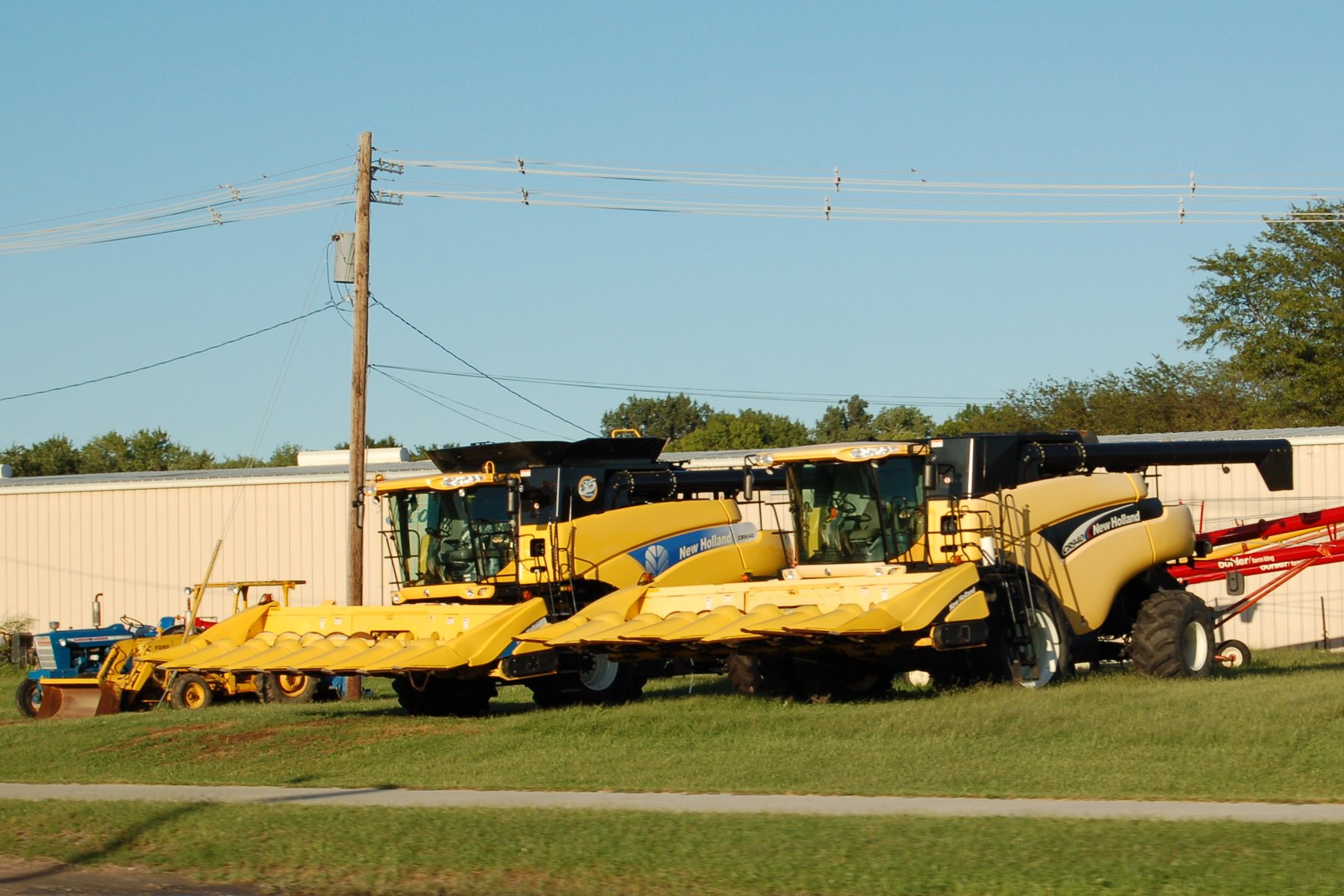

New Holland CR940 – specifications
Series: New Holland Combine
Build year not documented · Data origin: Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland CR940 belongs to the first CR generation that New Holland introduced in 2002 with the CR960 and CR980; service manuals also list the CR920, CR940 and CR970 alongside them. The CR line combined the technology of the CX with that of the earlier American TR. The threshing unit consists of two counter-rotating longitudinal rotors, which on the 9-series models are 264 cm long.
According to Ritchie Specs the CR940 has 295 hp at 2,100 rpm and a six-cylinder engine of 7,500.4 cm³ (457.7 cu in) with intercooling. The tank holds 749.5 l (198 gallons), the grain tank 255 bushels. Rotors of 17 in diameter and 104 in length and a cleaning system with 8,370 square inches of area characterise it; the weight is 34,308 lb and the wheelbase 3,761.2 mm.
In 2006 the CR types received an additional zero; in this numbering the 940 corresponds to the CR9040.
New Holland combines TR, TX, CX and CR – from the world's first rotary combine (TR70, 1975) to the Twin Rotor CR: TR from New Holland, Pennsylvania, TX and CX as straw-walker machines from Zedelgem, CR as twin rotor
New Holland's combines stand for two designs and two plants: the TR70 of 1975 was the world's first combine with rotors instead of threshing drum and straw walkers – two longitudinal rotors, the Twin Rotor, developed at the home plant in New Holland, Pennsylvania – and the TR range (TR85, TR86, TR89, TR95, TR96, TR99) carried that principle on in North America until 2002, with Ford engines and the Caterpillar 3208 V8 in the big models. The TX range (TX36, TX66, TX68) is the European straw-walker machine from the Zedelgem plant in Belgium, the former Claeys works that has belonged to New Holland since 1964; the CX range replaced it in 2001, CX8070 to CX8090 being the big six-walker machines of the 2000s. The CR range (CR940 to CR980, then CR9040 to CR9090) brought the Twin Rotor to Zedelgem and Europe in 2002 – with the Iveco Cursor 9 to Cursor 13 engines; the register span of 7.5 to 12.9 litres and 6 to 8 cylinders shows the engine breadth from the Ford six-cylinders to the Cat V8.
Read on 3 more paragraphs
The register lists 18 versions with engines of 7,500 to 12,897 cm³ at rated speeds of 2,100 to 2,630 rpm and lengths from 3,079 to 9,531 mm.
The Twin Rotor is New Holland's distinguishing feature against Claas (hybrid) and John Deere (single rotor); the CR9090 held the world record in 2008 for the quantity of wheat harvested in eight hours.
On used combines, threshing and engine hours, the condition of rotors, concave and sieves, header and feeder house, elevators and grain tank, engine and hydrostat and parts supply through CNH are what count.
Sources: SpecCodex register, model data: New Holland Mähdrescher, New Holland Agriculture (manufacturer)
Technical data
Engine
| Rated speed | 2,100 rpmcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 7,500.4 cm³correct |
| Aspiration | Intercooledcorrect |
Dimensions and weights
| Wheelbase | 3,761.2 mmcorrect |
|---|
Drivetrain and chassis
| Gearbox type | hydrostatic transmission, 4-speed gearboxcorrect |
|---|
Working data
| Fuel tank capacity | 749.5 lcorrect |
|---|
Frequently asked questions
What engine does the New Holland CR940 have?
6 cylinders, 7,500 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
