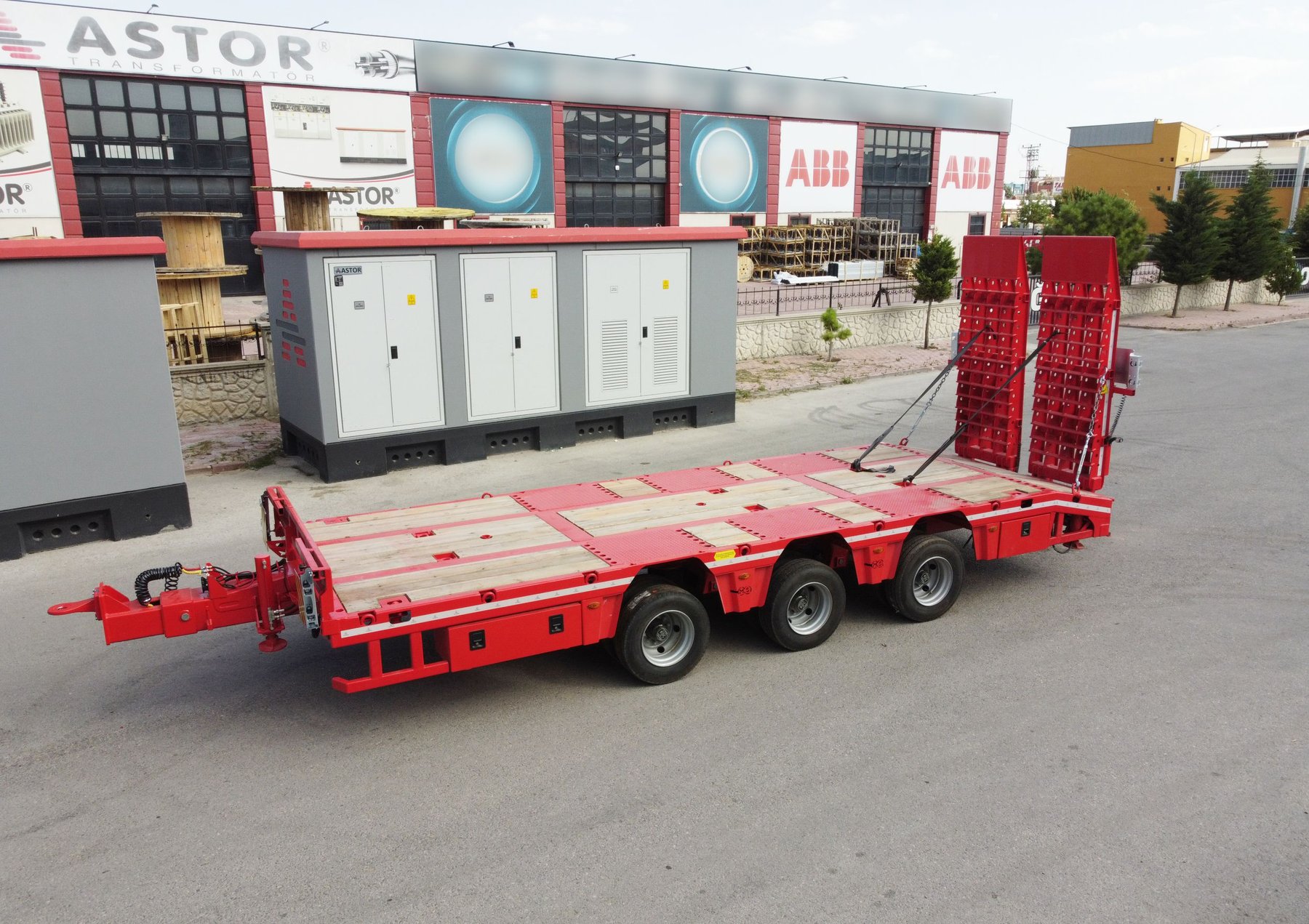

Ms Dorse CENTRE AXLE TRAILER
Built: 2025 · Series: Other models
More machines from model year 2025
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CENTRE AXLE TRAILER by Ms Dorse: EU class O4 centre-axle trailer with a gross vehicle weight of 20,000 kg and a length of 8,650 mm
With a gross vehicle weight of 20,000 kg, the CENTRE AXLE TRAILER belongs to EU trailer class O4, the heavy trailers above 10 tonnes. As the model name states, this is a centre-axle trailer, with its axles positioned in the middle of the body rather than at its rear end, unlike most other trailer types.
Read on 3 more paragraphs
The trailer is 8,650 mm long and 2,550 mm wide, with an unladen weight of 4,500 kg and a payload of 15,500 kg. The wheelbase is 6,420 mm, and eight wheels are spread across four axles. Its design top speed of 80 km/h is lower than the usual 100 km/h for trailers, worth factoring into route planning for long-haul journeys.
Centre-axle trailers transfer part of their weight to the towing vehicle through the drawbar, which limits the permitted trailer load for that towing vehicle. As an O4 trailer, air brakes with a two-line system are required, and the rig is driven on licence category CE. Spreading eight wheels across four axles keeps the load on any single axle within reasonable bounds despite the high gross weight.
On a four-axle centre-axle trailer, check the steering knuckles and the air suspension on each axle individually, since one faulty axle in the group unevenly loads the rest. Equally important: the condition of the drawbar support for the trailer's nose weight, the brake system, and the marking of the reduced 80 km/h top speed.
Sources: SpecCodex-Register: Kennwerte des Modells CENTRE AXLE TRAILER
Technical data
Dimensions and weights
| Length | 8,650 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,420 mmcorrect |
| Unladen weight | 4,500 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Ms Dorse CENTRE AXLE TRAILER weigh?
The unladen weight is 4,500 kg.
What is the gross vehicle weight of the Ms Dorse CENTRE AXLE TRAILER?
20,000 kg.
Up to what speed is the Ms Dorse CENTRE AXLE TRAILER approved?
Approved up to 80 km/h.
What are the dimensions of the Ms Dorse CENTRE AXLE TRAILER?
8,650 mm × 2,550 mm.
When was the Ms Dorse CENTRE AXLE TRAILER built?
Production years: 2025.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
