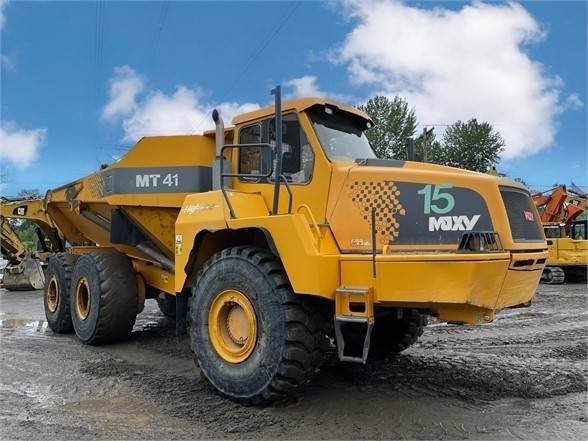

Moxy MT41

Series: Moxy Articulated Dump Truck

Source: https://www.ritchielist.com/construction/articulated-dump-tr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Moxy Articulated Dump Truck series from Moxy includes the MT41. The engine delivers 450.1 hp (331 kW), has 6 cylinders, with a displacement of 11,700.4 cm³. Torque is 1,854.1 Nm. Rated speed is 1,800 rpm. The wheelbase measures 5,361.4 mm. Ground clearance is 652.3 mm. Top speed is 53.1 km/h. The tank holds 490.2 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The hydraulic tank holds 275.2 litres. The cooling system holds 50.3 litres. The oil fill is 13.2 litres. The electrical system runs on 24 V. The engine fitted is the DC 12. Tyre size: 29,5R25. The Moxy Articulated Dump Truck series covers 5 models. Rated output within it ranges from 318.2 to 509.9 hp; the MT41 sits in the upper part of that range with 450.1 hp. Its immediate neighbours are the MT36 below it with 448.7 hp and the MT51 above it with 509.9 hp. 5 Moxy models are on record. The model is listed under Mining equipment. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDC 12correct
Power450.1 hp (331 kW)correct
Rated speed1,800 rpmcorrect
Torque1,854.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders6correct
Displacement11,700.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity50.3 lcorrect
Engine oil capacity13.2 lcorrect

Dimensions and weights

Length10,451.6correct
Width3,477.8correct
Wheelbase5,361.4correct
Ground clearance652.3correct

Drivetrain and chassis

Gearbox typeZF 6 WG 310 Dash 4 electronically-controlled automatic gearboxcorrect
Forward gears6correct
Reverse gears3correct
Tyre size29.5R25correct
Top speed53.1 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity275.2 lcorrect
Fuel tank capacity490.2 lcorrect

Frequently asked questions

How much power does the Moxy MT41 have?

The Moxy MT41 delivers 450 hp.

What engine does the Moxy MT41 have?

6 cylinders, 11,700 cm³ displacement.

How fast does the Moxy MT41 go?

Top speed is 53.1 km/h.

What are the dimensions of the Moxy MT41?

10,452 mm × 3,478 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
