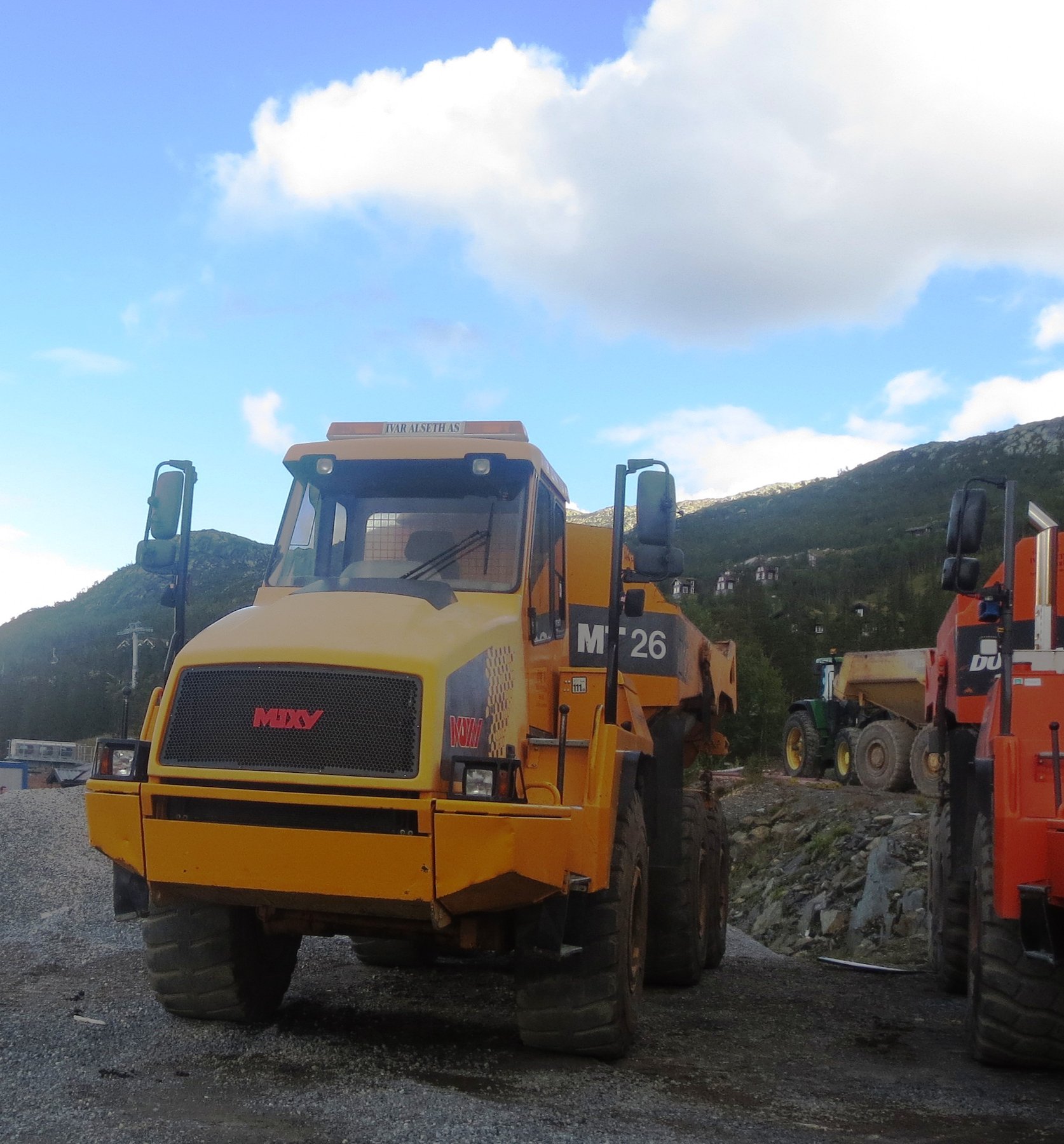

Moxy MT26

Series: Moxy Articulated Dump Truck

Source: https://commons.wikimedia.org/w/index.php?curid=42807303 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Moxy MT26 is a model in the Moxy Articulated Dump Truck series. The engine delivers 318.2 hp (234 kW), has 6 cylinders, with a displacement of 9,001.4 cm³. Torque is 1,450 Nm. The machine is 9,400 mm long. Ground clearance is 576.1 mm. Top speed is 51 km/h. The tank holds 320.2 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. The hydraulic tank holds 138.2 litres. The cooling system holds 36.3 litres. The oil fill is 27.3 litres. The electrical system runs on 24 V. The engine fitted is the DC 9. Tyre size: 23,5R25. The Moxy Articulated Dump Truck series covers 5 models. Rated output within it ranges from 318.2 to 509.9 hp; the MT26 sits at the bottom of that range with 318.2 hp. Its immediate neighbours are the MT31 above it with 340 hp. 5 Moxy models are on record. The model is listed under Mining equipment. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDC 9correct
Power318.2 hp (234 kW)correct
Torque1,450correct
Cylinders6correct
Displacement9,001.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity36.3 lcorrect
Engine oil capacity27.3 lcorrect

Dimensions and weights

Length9,400correct
Width2,752.3correct
Ground clearance576.1correct

Drivetrain and chassis

Gearbox typeZF 6 WG 260 Dash 4 electronically-controlled automatic gearboxcorrect
Forward gears6correct
Reverse gears3correct
Tyre size23.5R25correct
Top speed51 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity138.2 lcorrect
Fuel tank capacity320.2 lcorrect

Frequently asked questions

How much power does the Moxy MT26 have?

The Moxy MT26 delivers 318 hp.

What engine does the Moxy MT26 have?

6 cylinders, 9,001 cm³ displacement.

How fast does the Moxy MT26 go?

Top speed is 51 km/h.

What are the dimensions of the Moxy MT26?

9,400 mm × 2,752 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
