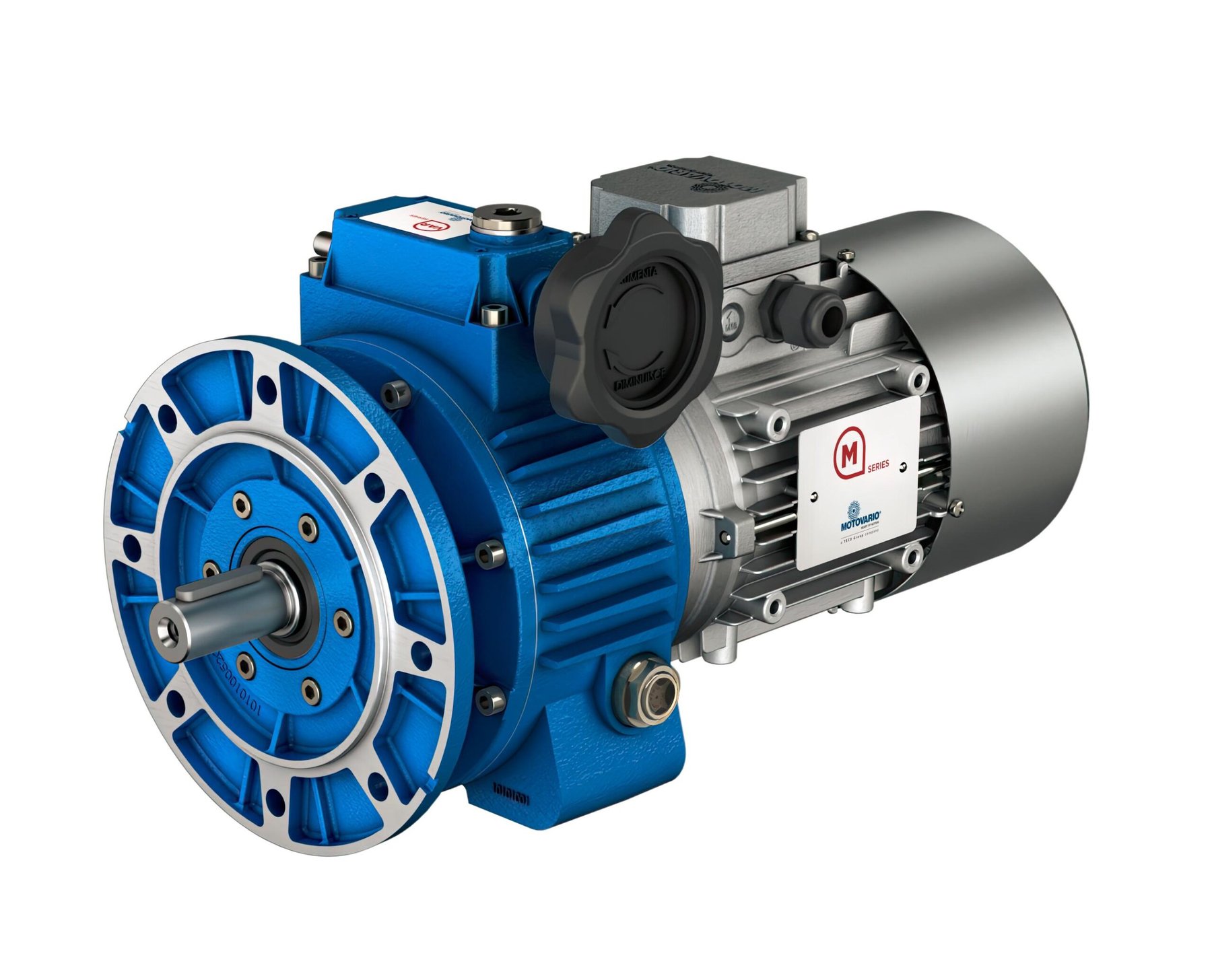

Motovario TP100LR6
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Motovario – other models: the collective page for small three-phase motors outside the named series, frame sizes 71 to 100, 0.75 to 1.5 kW, two- to six-pole, made in Italy and China
This page gathers small three-phase motors of the Motovario brand that the register does not assign to a named series. Motovario is an Italian gearbox and motor manufacturer headquartered in Formigine near Modena, which alongside geared motors also builds standalone standard motors. Specific series codes are noted in the register, such as TP80B4, TP80A2 and TP71C2, each for 230/400-volt versions at 50 hertz, and TH80B4 as a four-pole variant of the TH range.
Read on 3 more paragraphs
The register lists 11 versions with 0.75 to 1.5 kW rated output, two- to six-pole, at supply voltages from 230 to 460 V. Full-load efficiency ranges from 78.9 to 82.9%, frame sizes span 71 to 100, and protection classes range from IP55 to IP66. Some motors are made in Italy, others in China.
Motors of this compact size serve as the drive for small conveying systems, fans and geared-motor combinations in machine building, where Motovario appears alongside standalone motors also as a supplier of complete drive units. The lower efficiency compared with larger ranges matches the older efficiency level typical of many small motors of this frame size.
For a replacement, these compact motors call for correctly matching the supply voltage to the intended mains, and for the protection class, which varies by model between IP55 and IP66 and is accordingly more or less resistant to dust and water jets. The predominant B3,B5,B10,B14,B34,B35 mounting code makes replacement with other frame sizes in the Motovario range easier.
Sources: SpecCodex register, model data: Motovario (weitere Modelle), Motovario (manufacturer), Zulassungsdaten GEMS/MEPS (Australien, Neuseeland)
Technical data
Engine
| Rated output | 1.1 kWcorrect |
|---|
Electrical data
| Rated voltage | 230/400/460 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP56correct |
| Frame size | 100 (flange)correct |
| Mounting (IEC 60034-7) | B5correct |
| Efficiency at full load | 81.8 %correct |
| Efficiency at 75 % load | 82.2 %correct |
| Efficiency at half load | 79.9 %correct |
Origin and approval
| Country of manufacture | China, Italycorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Motovario TP100LR6 have?
The Motovario TP100LR6 delivers 1.1 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
