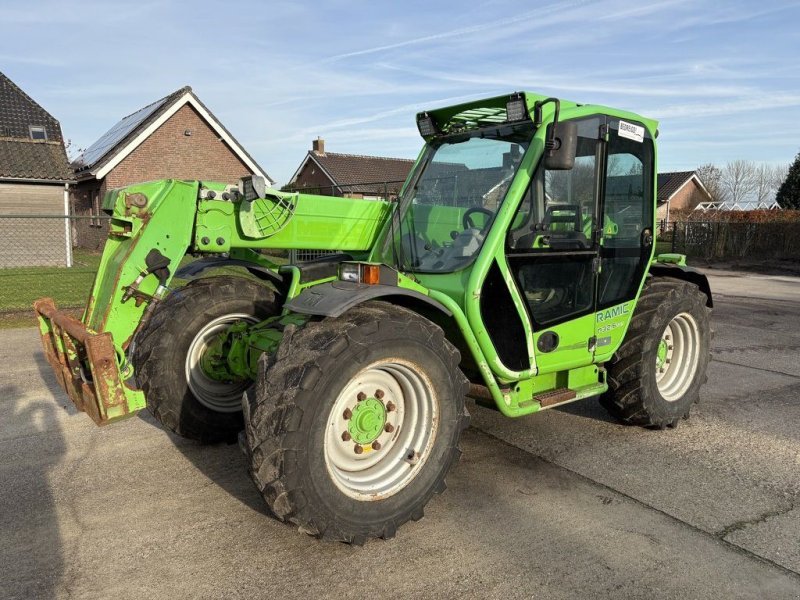

Merlo P 32.6 Top

Series: Merlo Telescopic Forklift

Source: https://www.technikboerse.com/gebraucht/teleskoplader-354/me

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the P 32.6 Top, Merlo offers a model from the Merlo Telescopic Forklift series. The engine delivers 101.4 hp (74.6 kW), has 4 cylinders, with a displacement of 4,000.1 cm³. The engine comes from Kubota. Rated speed is 2,400 rpm. The machine is 2,150 mm high. The unladen weight is 5,960 kg. The wheelbase measures 2,721.9 mm. Ground clearance is 387.1 mm. The tank holds 100.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 108.3 l/min. The hydraulic tank holds 85.2 litres. Working pressure is 210 bar. The electrical system runs on 12 V. Lift height is 6,400 mm. The engine fitted is the BF4M2012. Tyre size: 405/70-20. The Merlo Telescopic Forklift series covers 107 models. Rated output within it ranges from 76 to 231.2 hp; the P 32.6 Top sits in the lower part of that range with 101.4 hp. Its immediate neighbours are the P 40.9 below it with 87.1 hp and the 27.8 above it with 101.9 hp. Unladen weight within it ranges from 5,960 to 15,500 kg; here the P 32.6 Top sits at the bottom of that range with 5,960 kg. 186 Merlo models across 6 series are on record.

Merlo P/Roto – the type number reads as capacity times lift height

At Italian manufacturer Merlo, telehandler type designations combine two numbers: the first gives maximum capacity in hundreds of kilograms, the second maximum lift height in metres. The P 25.6, for instance, lifts up to 2.5 t to a height of up to 6 m; the "P" marks the "Panoramic" range with its characteristic offset cab and clear view of the forks.

Read on 3 more paragraphs

Suffix letters refine the picture: an "L" as in P 25.6 L marks a low-cab version with reduced overall height for low barns or halls, while an "S" denotes compact multi-stage ("Stage") versions such as 38.14S. For machines with full 360° rotation, Merlo runs a separate "Roto" line.

Models recorded in the database span engine outputs of 55 to 170 kW, own weights of 4,900 to 15,500 kg, capacities of 2,500 to 7,900 kg, and lift heights of 5.9 to 21 metres across 4 to 6 cylinders — the bucket covers everything from compact farmyard telehandlers to high-reach machines for construction and industry, represented by models such as 27.8, 38.14, 38.16S or 50.10S.

Used buyers should watch the boom condition and, above all, the load chart: the capacity named in the type code only applies at minimum reach close to the machine — with the telescopic arm extended, the permissible load drops noticeably, as shown in that machine's own load diagram.

Sources: SpecCodex register, model data: Merlo Telescopic Forklift, - Landwirt.com: Merlo P 25.6 L, Tragkraft/Hubhöhe-Logik, - Top Agrar: Merlo P 25.6 L Baubericht

Technical data

Engine

Engine makeKubotacorrect
Engine modelBF4M2012correct
Power101.4 hp (74.6 kW)correct
Rated speed2,400 rpmcorrect
Cylinders4correct
Displacement4,000.1 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Height2,150 mmcorrect
Wheelbase2,721.9 mmcorrect
Ground clearance387.1 mmcorrect
Unladen weight5,960 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size405/70-20correct

Working data

Lift height6,400 mmcorrect
Pump flow108.3 l/mincorrect
Hydraulic oil capacity85.2 lcorrect
Hydraulic pressure210 barcorrect
Fuel tank capacity100.3 lcorrect

Other data

System voltage12 Vcorrect

More machines with this engine (Kubota BF4M2012, 11)

Where this model stands

Power-to-weight ratio: 12.5 kW/t (75 kW / 6 t)

Stronger than 39% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Merlo P 32.6 Top have?

The Merlo P 32.6 Top delivers 101 hp.

How much does the Merlo P 32.6 Top weigh?

The unladen weight is 5,960 kg.

What engine does the Merlo P 32.6 Top have?

4 cylinders, 4,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
