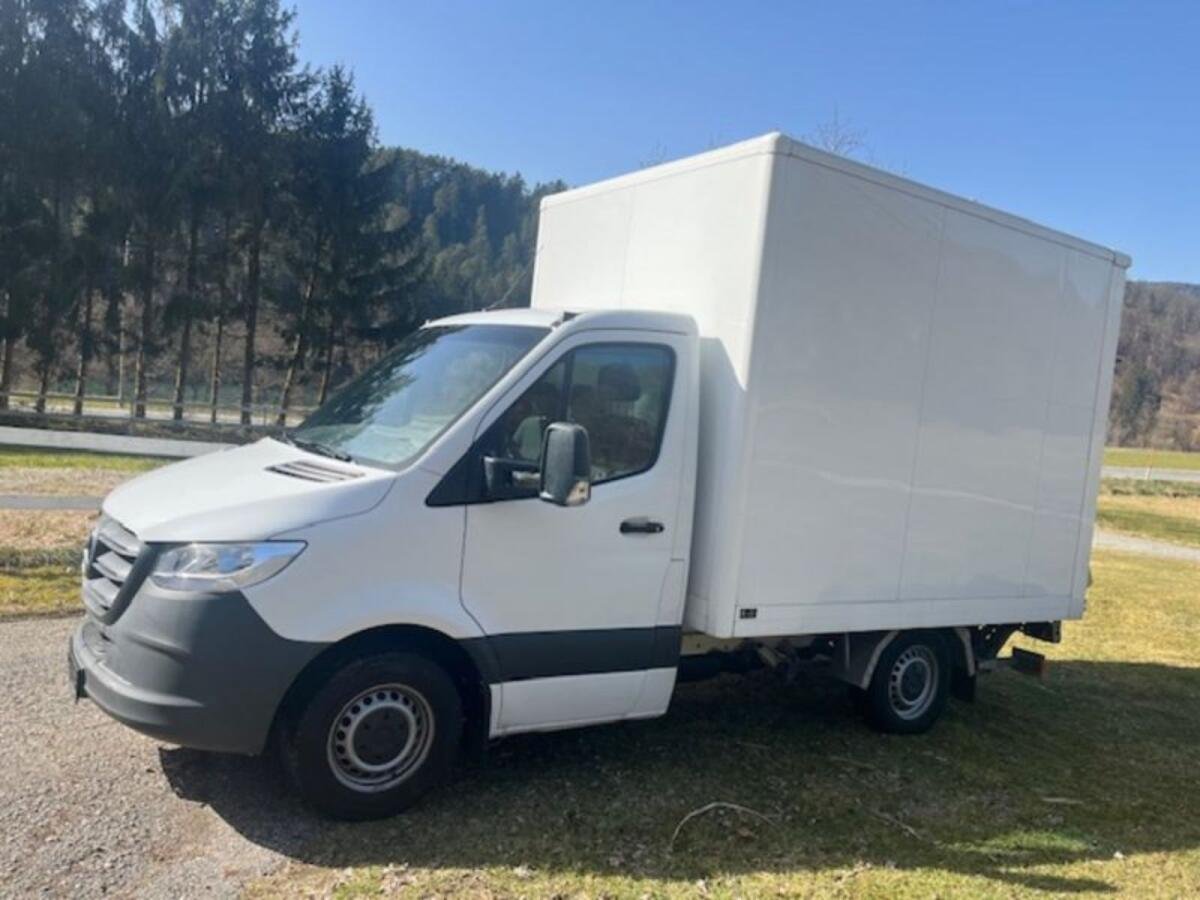

Mercedes Idilis SPRINTER
Built: 2024 · Series: Other models
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz Sprinter as a single model: four-cylinder diesel at 1,950 cc and 140 kW, 3,500 kg gross weight on twin rear wheels – a light commercial chassis for a special body
The Sprinter is Mercedes-Benz's large van range, serving as a base not only for the factory's own bodies but also for numerous independent converters building panel vans, crew-cab, motorhome and special-purpose conversions, whose particular design can be read from the chassis specification.
Read on 3 more paragraphs
The four-cylinder diesel engine, at 1,950 cc, produces 140 kW. The vehicle weighs 2,570 kg unladen and is rated for 3,500 kg gross weight, giving around 930 kg of payload. At 6.96 m long, 2.21 m wide, on a 4.33 m wheelbase and with six wheels – twin rear tyres – the chassis is built for the upper payload tier of the Sprinter range. Top speed is 90 km/h.
At 3,500 kg gross weight the vehicle stays within EU class N1 for light commercial vehicles and can be driven on a category B licence. Twin rear wheels on Sprinter chassis in this weight class are typical of bodies with substantial kerb weight of their own, since of the 3,500 kg gross weight only about 930 kg is left, on paper, for load and crew – a sign of a heavy, permanently fitted body rather than an error in the figures.
On a used Sprinter chassis of this kind it is worth checking the mounting points between chassis and body for corrosion, the brakes given the high gross weight, and the condition of the twin rear tyres, where a flat inner tyre is easy to miss. Service history of the diesel engine, particularly the timing belt or chain and the exhaust after-treatment, matters as much as the tightness of the body itself.
Sources: SpecCodex-Register: Kennwerte des Modells Mercedes-Benz Sprinter
Technical data
Engine
| Power | 140 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 1,950 cm³correct |
Dimensions and weights
| Length | 6,960 mmcorrect |
|---|---|
| Width | 2,210 mmcorrect |
| Wheelbase | 4,330 mmcorrect |
| Unladen weight | 2,570 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Gears | 6correct |
|---|---|
| Wheels | 6correct |
| Top speed | 90 km/hcorrect |
Where this model stands
Power-to-weight ratio: 54.5 kW/t (140 kW / 2.6 t)
Stronger than 17% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mercedes Idilis SPRINTER have?
The Mercedes Idilis SPRINTER delivers 140 kW.
How much does the Mercedes Idilis SPRINTER weigh?
The unladen weight is 2,570 kg.
What is the gross vehicle weight of the Mercedes Idilis SPRINTER?
3,500 kg.
What engine does the Mercedes Idilis SPRINTER have?
4 cylinders, 1,950 cm³ displacement.
How fast does the Mercedes Idilis SPRINTER go?
Top speed is 90 km/h.
What are the dimensions of the Mercedes Idilis SPRINTER?
6,960 mm × 2,210 mm.
When was the Mercedes Idilis SPRINTER built?
Production years: 2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
