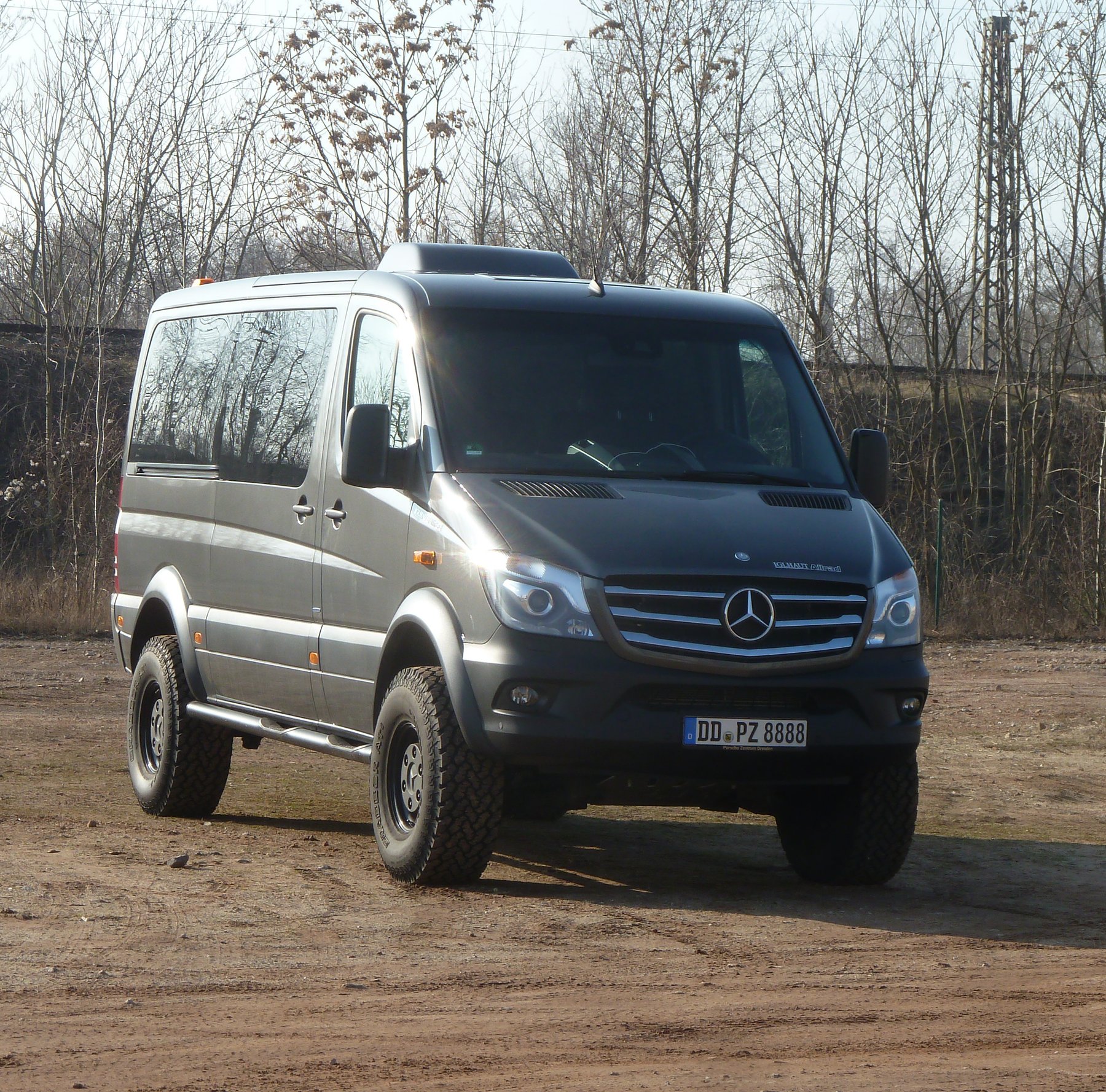

Mercedes Benz/jegger SPRINTER
Built: 2017-2024 · Series: Other models
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz Sprinter chassis with a six-cylinder diesel engine: this body brings 3,500 kg gross vehicle weight, 120 kW output and six wheels for a heavy payload onto the road
This version is based on the Mercedes-Benz Sprinter chassis, one of the most widely used platforms for light commercial vehicles in Europe. Numerous coachbuilders fit their own bodies for transport, refrigeration or special purposes onto this platform; the vehicle manufacturer supplies only the base vehicle, while the bodywork and intended use are determined by the respective converter.
Read on 3 more paragraphs
The six-cylinder diesel engine with 2,987 cm³ displacement produces 120 kW and powers a vehicle with a 2,715 kg kerb weight, leaving around 785 kg of payload at a 3,500 kg gross vehicle weight. At 7,550 mm long, 2,350 mm wide and with a 4,330 mm wheelbase, this body counts among the larger Sprinter versions; the six wheels point to twin tyres on the rear axle, as used on heavily loaded or particularly long bodies. Top speed is 160 km/h.
In the EU, a vehicle with this gross weight falls into category N1 and can be driven on a category B licence, provided the gross weight does not exceed 3,500 kg. Twin rear tyres improve weight distribution and stability under heavy load, but also require wider tyres and a larger turning circle than a Sprinter with single rear wheels.
When buying a used chassis of this kind, it is worth checking the condition of the rear twin tyres: uneven wear between the two tyres on one side points to incorrect axle geometry or a history of overloading. The frame around the body should be checked for rust scars and properly executed reinforcements, as should the mounting points between chassis and body for cracks.
Sources: SpecCodex-Register: Kennwerte des Modells SPRINTER
Technical data
Engine
| Power | 120 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 2,987 cm³correct |
Dimensions and weights
| Length | 7,550 mmcorrect |
|---|---|
| Width | 2,350 mmcorrect |
| Wheelbase | 4,330 mmcorrect |
| Unladen weight | 2,715 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 160 km/hcorrect |
Where this model stands
Power-to-weight ratio: 44.2 kW/t (120 kW / 2.7 t)
Stronger than 81% of the vans in the register — out of 7,144 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mercedes Benz/jegger SPRINTER have?
The Mercedes Benz/jegger SPRINTER delivers 120 kW.
How much does the Mercedes Benz/jegger SPRINTER weigh?
The unladen weight is 2,715 kg.
What is the gross vehicle weight of the Mercedes Benz/jegger SPRINTER?
3,500 kg.
What engine does the Mercedes Benz/jegger SPRINTER have?
6 cylinders, 2,987 cm³ displacement.
What are the dimensions of the Mercedes Benz/jegger SPRINTER?
7,550 mm × 2,350 mm.
When was the Mercedes Benz/jegger SPRINTER built?
Production years: 2017-2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
