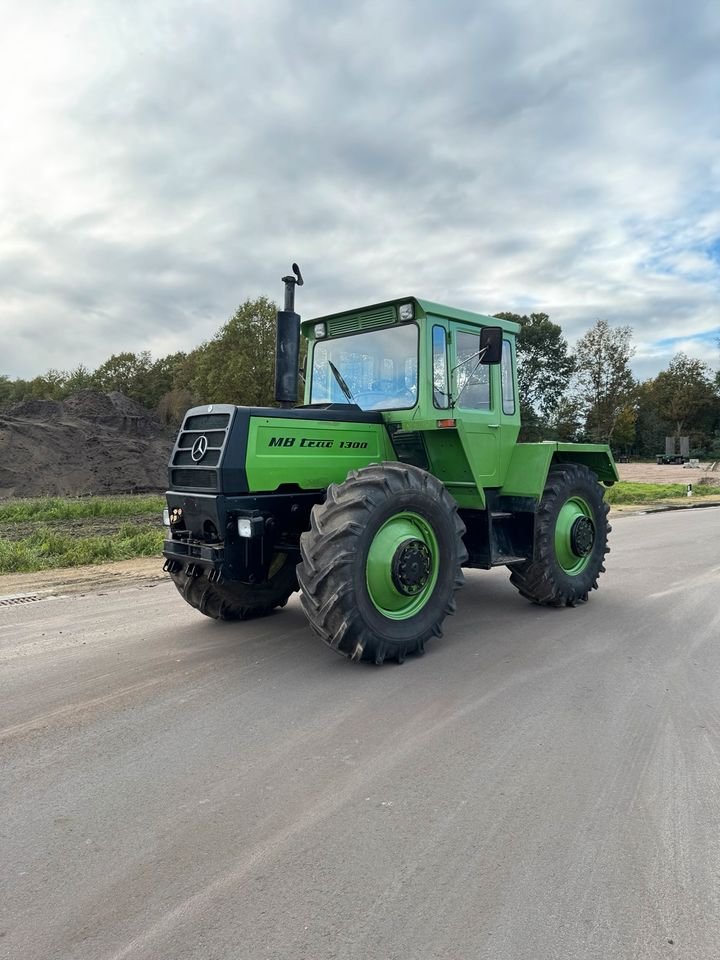

Mercedes Benz MB trac 1300
Built: 5/1976–2/1987 · Series: 443
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz MB trac 1300 (series 443): six-cylinder engine rated at 92 kW, built from May 1976 to February 1987, top speed 25 km/h.
The MB trac 1300 of the 443 series was built by Mercedes-Benz at its Gaggenau plant from May 1976 to February 1987 and counts among the long-lived models of the early MB-trac generation. Like the whole line, it follows the system-tractor concept with equal-sized wheels front and rear and a rotating driver's seat for working front- and rear-mounted implements.
Read on 3 more paragraphs
The water-cooled six-cylinder engine displaces 5,675 cm³ and produces 125 hp (92 kW) with 392 Nm of torque. Rated speed was initially 2,600 rpm, reduced to 2,500 rpm from March 1982. At an unladen weight of 5,540 kg and a wheelbase of 2,650 mm, the tractor's design top speed is 25 km/h; length and width are 4,680 mm and 2,470 mm, with a height of 2,925 mm.
At 25 km/h the MB trac 1300 stays well within the 60 km/h limit of the T tractor licence class. As on the Unimog, portal axles and standard four-wheel drive provide high ground clearance, allowing use on soft and uneven ground as well.
Since the rated engine speed changed during the production run, it is worth checking the actual state of the injection pump when buying a used example. The tubular frame should be checked for rust at the implement mounting points, and the seat-rotation mechanism for smooth operation. On the hydraulics, check the fittings for leaks. Drivetrain and axle parts are usually still available through Unimog spares suppliers.
Sources: SpecCodex-Register: Kennwerte des Modells MB trac 1300, Mercedes-Benz
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 125 hp (92 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Torque | 392 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,675 cm³correct |
| Bore | 97 mmcorrect |
| Stroke | 128 mmcorrect |
| Injection pressure | 200 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,680 mmcorrect |
|---|---|
| Width | 2,470 mmcorrect |
| Height | 2,925 mmcorrect |
| Wheelbase | 2,650 mmcorrect |
| Ground clearance | 515 mmcorrect |
| Unladen weight | 5,540 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 14V / 14Rcorrect |
| Front tyres | 18.4-30 AScorrect |
| Rear tyres | 18.4-30 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 170 lcorrect |
|---|
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 2,908correct |
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.6 kW/t (92 kW / 5.5 t)
Power class: Large (100–180 hp)
Stronger than 76% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mercedes Benz MB trac 1300 have?
The Mercedes Benz MB trac 1300 delivers 125 hp.
How much does the Mercedes Benz MB trac 1300 weigh?
The unladen weight is 5,540 kg.
What engine does the Mercedes Benz MB trac 1300 have?
6 cylinders, 5,675 cm³ displacement, Diesel.
How fast does the Mercedes Benz MB trac 1300 go?
Top speed is 25 km/h.
What are the dimensions of the Mercedes Benz MB trac 1300?
4,680 mm × 2,470 mm × 2,925 mm.
When was the Mercedes Benz MB trac 1300 built?
Production years: 5/1976–2/1987.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
