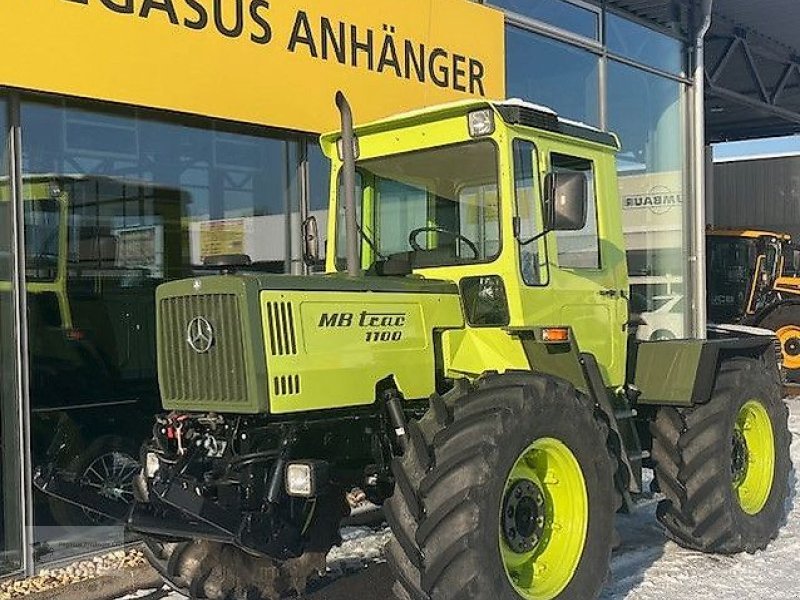

Mercedes Benz MB-trac 1100
Built: 1987 · Series: 441.163
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Mercedes-Benz MB-trac 1100 (series 441.163): six-cylinder system tractor rated at 81 kW with 375 Nm of torque, built in 1987, top speed 25 km/h.
The MB-trac 1100 of the 441.163 series was built by Mercedes-Benz at its Gaggenau plant during a single production year, 1987, before the line was replaced by later models. Like all MB-trac tractors, it follows the system-tractor concept with equal-sized wheels front and rear and a rotating driver's seat.
Read on 3 more paragraphs
The water-cooled six-cylinder engine displaces 5,958 cm³ and produces 110 hp (81 kW) at 2,400 rpm with 375 Nm of torque. At an unladen weight of 4,500 kg and a wheelbase of 2,600 mm, the tractor's design top speed is 25 km/h. At 4,480 mm long, 2,240 mm wide and 2,870 mm high, it sits in the mid-size class of the line.
At 25 km/h the MB-trac 1100 stays well within the 60 km/h limit of the T tractor licence class. As on the Unimog, portal axles provide high ground clearance, and four-wheel drive is standard, which makes the tractor usable on soft and uneven ground as well.
When buying a used example, check the tubular frame, where rust tends to start at the implement mounting points. The seat's rotation mechanism and lock should move freely and latch cleanly. On the hydraulics, check the fittings for leaks; on the power take-off, check the clutch for wear. Drivetrain and axle parts for this short production run are usually still available through Unimog spares suppliers, the same as for other MB-trac models.
Sources: SpecCodex-Register: Kennwerte des Modells MB-trac 1100, Mercedes-Benz
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (81 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 375 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,958 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,480 mmcorrect |
|---|---|
| Width | 2,240 mmcorrect |
| Height | 2,870 mmcorrect |
| Wheelbase | 2,600 mmcorrect |
| Ground clearance | 550 mmcorrect |
| Unladen weight | 4,500 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | Mercedes-Benz manual gearbox gearbox UG 2/30 - 7/11, 19 GAcorrect |
| Forward gears | 16correct |
| Reverse gears | 8correct |
| Front tyres | 16, 9 R26correct |
| Rear tyres | 16, 9 R26correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 1,283correct |
Where this model stands
Power-to-weight ratio: 18 kW/t (81 kW / 4.5 t)
Power class: Large (100–180 hp)
Stronger than 71% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Mercedes Benz MB-trac 1100 have?
The Mercedes Benz MB-trac 1100 delivers 110 hp.
How much does the Mercedes Benz MB-trac 1100 weigh?
The unladen weight is 4,500 kg.
What engine does the Mercedes Benz MB-trac 1100 have?
6 cylinders, 5,958 cm³ displacement, Diesel.
How fast does the Mercedes Benz MB-trac 1100 go?
Top speed is 25 km/h.
What are the dimensions of the Mercedes Benz MB-trac 1100?
4,480 mm × 2,240 mm × 2,870 mm.
When was the Mercedes Benz MB-trac 1100 built?
Production years: 1987.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
