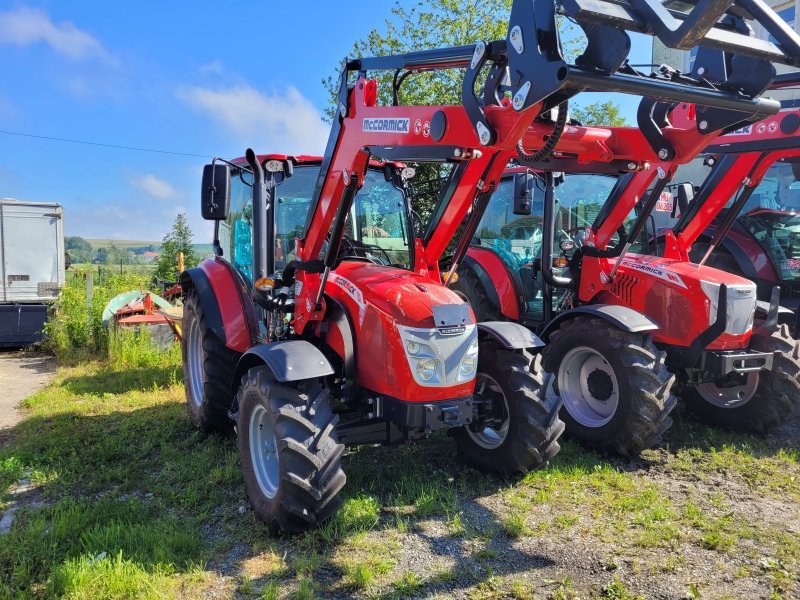

McCormick X4.30

Built: Year not documented · Series: X4-T4

Source: https://www.technikboerse.com/gebraucht/traktor-357/mccormic

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The McCormick X4.30 belongs to the X4-T4 series. The engine delivers 68 hp (50 kW), has 4 cylinders, with a displacement of 2,900 cm³. Rated speed is 2,200 rpm. The machine is 4,182 mm long, 1,750 mm wide and 2,563 mm high. The unladen weight is 3,000 kg. The wheelbase measures 2,340 mm. Ground clearance is 350 mm. Top speed is 40 km/h. The tank holds 90 litres. The engine is water-cooled. The fuel is diesel. Construction: Standardtraktor. There are also 12 reverse gears. The X4-T4 series covers 3 models. Rated output within it ranges from 68 to 95 hp; the X4.30 sits at the bottom of that range with 68 hp. Its immediate neighbours are the X4.35 above it with 74 hp. Unladen weight within it ranges from 3,000 to 3,500 kg; here the X4.30 sits at the bottom of that range with 3,000 kg. 381 McCormick models across 40 series are on record.

McCormick X4-T4 – the compact general-purpose tractors X4.30 to X4.60 from the Fabbrico plant with a four-cylinder diesel engine, 50 to 70 kW and 2.9 to 4.4 litres of displacement

McCormick's X4 range, built by Argo Tractors at the Fabbrico plant in Emilia-Romagna, comprises the X4.30, X4.35 and X4.60 models. The decimal in the type designation indicates the approximate output class within the X4 family, and all three models share the compact, four-cylinder engine concept.

Read on 3 more paragraphs

The register lists 3 versions with 50 to 70 kW (68 to 95 hp) from four-cylinders of 2,900 to 4,400 cc displacement at a rated speed of 2,200 rpm. Operating weight ranges from 3,000 to 3,500 kg, length from 4,182 to 4,321 mm, width is 1,750 mm and height ranges from 2,563 to 2,582 mm. All three models run on diesel.

The X4 range targets versatile mid-range tractors for mixed operations, covering field work as well as transport and yard tasks; the compact 1,750 mm width eases work on tighter yards and inside farm buildings. In the line-up, the range competes with similarly positioned four-cylinder compact tractors from Deutz-Fahr, Kubota and New Holland.

On a used purchase, points to check include the condition of the clutch and gearbox, the tightness of the radiator and charge-air ducting, wear on the front axle and steering, and corrosion on the cab floor and mudguards. The function of the front hydraulics and the completeness of the implement couplers are also worth a close look. Spare parts are available through the Argo Tractors network for McCormick.

Sources: SpecCodex register, model data: McCormick X4-T4, McCormick (Argo Tractors, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	68 hp (50 kW)correct
Rated speed	2,200 rpmcorrect
Cylinders	4correct
Displacement	2,900 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,182 mmcorrect
Width	1,750 mmcorrect
Height	2,563 mmcorrect
Wheelbase	2,340 mmcorrect
Ground clearance	350 mmcorrect
Unladen weight	3,000 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Reverse gears	12correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	90 lcorrect

Origin and approval

Construction	Standardtraktorcorrect

Where this model stands

Power-to-weight ratio: 16.7 kW/t (50 kW / 3 t)

Power class: Universal (40–100 hp)

Stronger than 47% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the McCormick X4.30 have?

The McCormick X4.30 delivers 68 hp.

How much does the McCormick X4.30 weigh?

The unladen weight is 3,000 kg.

What engine does the McCormick X4.30 have?

4 cylinders, 2,900 cm³ displacement, Diesel.

How fast does the McCormick X4.30 go?

Top speed is 40 km/h.

What are the dimensions of the McCormick X4.30?

4,182 mm × 1,750 mm × 2,563 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
