McCormick X3.30
Built: Year not documented · Series: X3 F
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

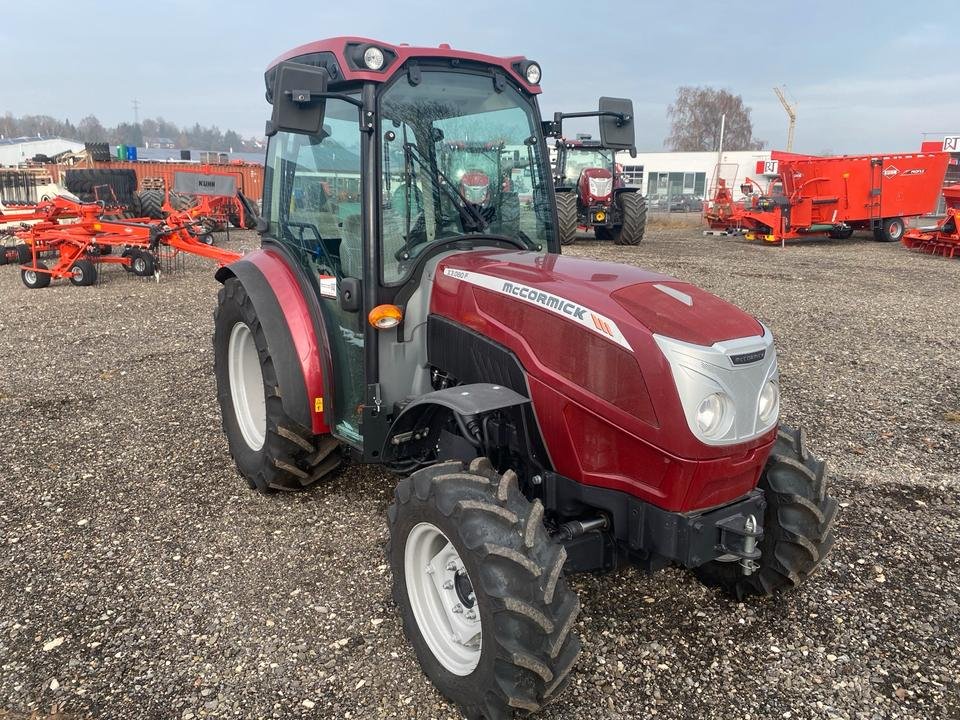

McCormick X3.30 of the X3 F series: a narrow-track four-cylinder diesel tractor producing 48 kW (65 hp), 1,360 mm wide, with front hydraulics lifting up to 2,300 kg, built for orchard and vineyard work.
The X3.30 belongs to the X3 F series from McCormick (ARGO Group) — a narrow-track version; among Italian tractor makers the letter 'F' denotes the narrower variant built for orchard and vineyard work. Tractors in this power class are built at ARGO under a manufacturing partnership with the Indian maker TAFE.
Read on 3 more paragraphs
The X3.30 is powered by a water-cooled four-cylinder diesel engine with 2,500 cm3 displacement, producing 48 kW (65 hp) at a rated speed of 2,200 rpm. At an unladen weight of 2,000 kg, a wheelbase of 1,950 mm and a width of just 1,360 mm, it is built noticeably narrower than a standard tractor of similar power. Height and length are 2,248 mm and 3,463 mm respectively, and the front hydraulics lift up to 2,300 kg.
The narrow track width is the defining feature of narrow-track tractors built for row crops such as orchards and vineyards, where the spacing between plant rows is limited. With 48 kW and a strong front lift capacity, the X3.30 covers typical tasks such as mulching, plant protection spraying and transport between the rows.
When buying a used, narrow-built X3.30, check the front axle and track rods for wear caused by tight turning in row-crop work. Since plant-protection work involves aggressive chemicals, inspect the bonnet, hydraulic lines and wiring harness for paint damage and corrosion. The four-cylinder engine is worth assessing for oil consumption and radiator condition, as a narrow engine bay gets less cooling airflow than on a standard tractor.
Sources: SpecCodex-Register: Kennwerte des Modells McCormick X3.30
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (48 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,500 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,463 mmcorrect |
|---|---|
| Width | 1,360 mmcorrect |
| Height | 2,248 mmcorrect |
| Wheelbase | 1,950 mmcorrect |
| Ground clearance | 223 mmcorrect |
| Unladen weight | 2,000 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Reverse gears | 12correct |
Working data
| Lifting capacity | 2,300 kgcorrect |
|---|---|
| Fuel tank capacity | 50 lcorrect |
Origin and approval
| Construction | Standardtraktorcorrect |
|---|
Where this model stands
Power-to-weight ratio: 24 kW/t (48 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick X3.30 have?
The McCormick X3.30 delivers 65 hp.
How much does the McCormick X3.30 weigh?
The unladen weight is 2,000 kg.
What engine does the McCormick X3.30 have?
4 cylinders, 2,500 cm³ displacement, Diesel.
How much does the rear linkage of the McCormick X3.30 lift?
The rear linkage lifts 2,300 kg.
What are the dimensions of the McCormick X3.30?
3,463 mm × 1,360 mm × 2,248 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
